Canon XC10 vs Olympus E-PM1

The Canon XC10 and the Olympus PEN E-PM1 are two digital cameras that were officially introduced, respectively, in April 2015 and June 2011. The XC10 is a fixed lens compact, while the E-PM1 is a mirrorless interchangeable lens camera. The cameras are based on an one-inch (XC10) and a Four Thirds (E-PM1) sensor. The Canon has a resolution of 12 megapixels, whereas the Olympus provides 12.2 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon XC10		Olympus E-PM1
Fixed lens compact camera		Mirrorless system camera
24-240mm f/2.8-5.6		Micro Four Thirds lenses
12 MP – 1" sensor		12.2 MP – Four Thirds sensor
4K/30p Video		1080/60i Video
ISO 160-20,000		ISO 100-12,800
No viewfinder, LCD framing		Viewfinder optional
3.0" LCD – 1030k dots		3.0" LCD – 460k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
3.8 shutter flaps per second		5.5 shutter flaps per second
Lens-based stabilization		In-body stabilization
370 shots per battery charge		330 shots per battery charge
125 x 102 x 122 mm, 1040 g		110 x 64 x 34 mm, 265 g

Check XC10 offers at
ebay.com
Check E-PM1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon XC10 and the Olympus PEN E-PM1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

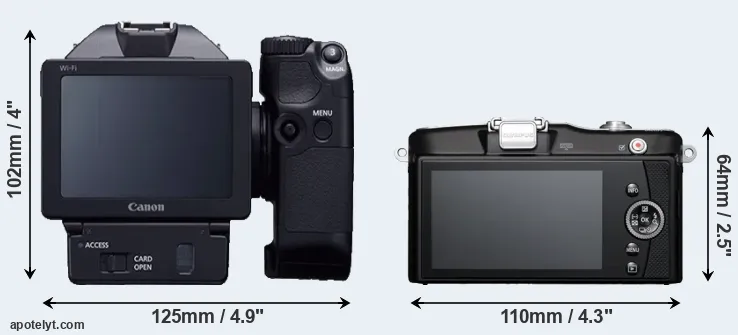

The physical size and weight of the Canon XC10 and the Olympus E-PM1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PM1 can be obtained in six different colors (black, silver, brown, pink, purple, white), while the XC10 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PM1 is considerably smaller (45 percent) than the Canon XC10. In this context, it is worth noting that neither the XC10 nor the E-PM1 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the E-PM1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-PM1 and their specifications in the Micro Four Thirds Lens Catalog.

Concerning battery life, the XC10 gets 370 shots out of its Canon LP-E6N battery, while the E-PM1 can take 330 images on a single charge of its Olympus BLS-5 power pack. The power pack in the XC10 can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
2.		Olympus E-PM1	110 mm	64 mm	34 mm	265 g	330	n	Jun 2011	US$ 499	ebay.com
3.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
7.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
8.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
9.		Fujifilm X30	119 mm	72 mm	60 mm	423 g	470	n	Aug 2014	US$ 599	ebay.com
10.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
11.		Olympus E-PL1	115 mm	72 mm	42 mm	334 g	290	n	Feb 2010	US$ 599	ebay.com
12.		Olympus E-PL2	114 mm	72 mm	42 mm	362 g	280	n	Jan 2011	US$ 599	ebay.com
13.		Olympus E-PL3	110 mm	64 mm	37 mm	313 g	300	n	Jun 2011	US$ 599	ebay.com
14.		Olympus E-PM2	110 mm	64 mm	34 mm	269 g	360	n	Sep 2012	US$ 499	ebay.com
15.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
16.		Panasonic G2	124 mm	84 mm	74 mm	428 g	360	n	Mar 2010	US$ 599	ebay.com
17.		Panasonic LX100	115 mm	66 mm	55 mm	393 g	300	n	Sep 2014	US$ 899	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon XC10 features an one-inch sensor and the Olympus E-PM1 a Four Thirds sensor. The sensor area in the E-PM1 is 83 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.75 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

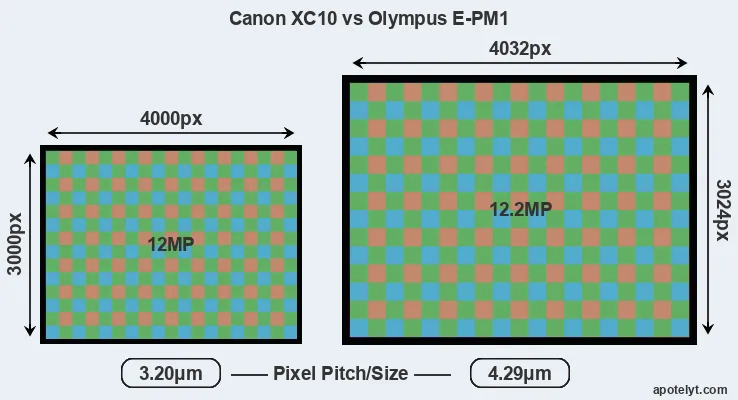

With 12.2MP, the E-PM1 offers a higher resolution than the XC10 (12MP), but the E-PM1 nevertheless has larger individual pixels (pixel pitch of 4.29μm versus 3.20μm for the XC10) due to its larger sensor. However, the XC10 is a much more recent model (by 3 years and 9 months) than the E-PM1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The Canon XC10 has a native sensitivity range from ISO 160 to ISO 20000. The corresponding ISO settings for the Olympus PEN E-PM1 are ISO 100 to ISO 12800 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
2.		Olympus E-PM1	Four Thirds	12.2	4032	3024	1080/60i	21.0	10.3	499	52
3.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
4.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
5.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
6.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
7.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
8.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
9.		Fujifilm X30	2/3	12.0	4000	3000	1080/60p	20.4	11.2	-312	49
10.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
11.		Olympus E-PL1	Four Thirds	12.2	4032	3024	720/30p	21.5	10.1	487	54
12.		Olympus E-PL2	Four Thirds	12.2	4032	3024	720/30p	21.4	10.2	573	55
13.		Olympus E-PL3	Four Thirds	12.2	4032	3024	1080/60i	20.9	10.3	499	52
14.		Olympus E-PM2	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.2	932	72
15.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
16.		Panasonic G2	Four Thirds	12.0	4000	3000	720/30p	21.2	10.3	493	53
17.		Panasonic LX100	Four Thirds	12.7	4112	3088	4K/30p	22.3	12.5	553	67
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the XC10 provides a higher video resolution than the E-PM1. It can shoot video footage at 4K/30p, while the Olympus is limited to 1080/60i.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. The XC10 and the E-PM1 are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. That said, the E-PM1 can be equipped with an optional viewfinder – the VF-2. The table below summarizes some of the other core capabilities of the Canon XC10 and Olympus E-PM1 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
2.		Olympus E-PM1	optional	n	3.0 / 460	fixed	n	1/4000s	5.5/s	n	Y
3.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
4.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
5.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
6.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
7.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
8.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
9.		Fujifilm X30	2360	n	3.0 / 920	tilting	n	1/4000s	12.0/s	Y	Y
10.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
11.		Olympus E-PL1	optional	n	2.7 / 230	fixed	n	1/2000s	3.0/s	Y	Y
12.		Olympus E-PL2	optional	n	3.0 / 460	fixed	n	1/4000s	3.0/s	Y	Y
13.		Olympus E-PL3	optional	n	3.0 / 460	tilting	n	1/4000s	5.5/s	n	Y
14.		Olympus E-PM2	optional	n	3.0 / 460	fixed	Y	1/4000s	8.0/s	n	Y
15.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
16.		Panasonic G2	1440	n	3.0 / 460	swivel	Y	1/4000s	2.6/s	Y	n
17.		Panasonic LX100	2764	n	3.0 / 921	fixed	n	1/4000s	11.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The XC10 has a touchscreen, while the E-PM1 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Canon XC10 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The XC10 writes its imaging data to CFast or SDXC cards, while the E-PM1 uses SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PM1 only has one slot. The XC10 supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the E-PM1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon XC10 and Olympus PEN E-PM1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
2.		Olympus E-PM1	Y	stereo / mono	-	-	mini	2.0	-	-	-
3.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
4.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
6.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
9.		Fujifilm X30	Y	stereo / mono	-	-	micro	2.0	Y	-	-
10.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Olympus E-PL1	Y	stereo / -	-	-	mini	2.0	-	-	-
12.		Olympus E-PL2	Y	stereo / -	-	-	mini	2.0	-	-	-
13.		Olympus E-PL3	Y	stereo / -	-	-	mini	2.0	-	-	-
14.		Olympus E-PM2	Y	stereo / mono	-	-	mini	2.0	-	-	-
15.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
16.		Panasonic G2	Y	stereo / mono	-	-	mini	2.0	-	-	-
17.		Panasonic LX100	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the XC10 has a microphone port, which is missing on the E-PM1. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the XC10 and the E-PM1 have been discontinued, but can regularly be found used on ebay. The E-PM1 was replaced by the Olympus E-PM2, while the XC10 was followed by the Canon XC15. Further information on the features and operation of the XC10 and E-PM1 can be found, respectively, in the Canon XC10 Manual (free pdf) or the online Olympus E-PM1 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Canon XC10 or the Olympus E-PM1 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Canon XC10:

• Better video: Provides higher definition movie capture (4K/30p vs 1080/60i).
• Better sound: Can connect to an external microphone for higher quality sound recording.
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More detailed LCD: Has a higher resolution rear screen (1030k vs 460k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Ready to shoot: Has a lens built-in, whereas the E-PM1 requires a separate lens.
• Longer lasting: Can take more shots (370 versus 330) on a single battery charge.
• Easier travel charging: Can be conveniently charged via its USB port.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 3 years and 9 months of technical progress since the E-PM1 launch.

Advantages of the Olympus PEN E-PM1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• More framing options: Can be equipped with a hotshoe-mounted accessory-viewfinder.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (5.5 vs 3.8 flaps/sec) to capture the decisive moment.
• More flexible: Takes interchangeable lenses and can thus be used with specialty optics.
• More compact: Is smaller (110x64mm vs 125x102mm) and will fit more readily into a bag.
• More heavily discounted: Has been around for much longer (launched in June 2011).

If the number of relative strengths (bullet points above) is taken as a guide, the XC10 is the clear winner of the match-up (15 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon XC10 and the Olympus E-PM1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the XC10 or the E-PM1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
2.		Olympus E-PM1	..	86/100	..	71/100	4.5/5	4.5/5	Jun 2011	US$ 499	ebay.com
3.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
4.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
5.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
6.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
7.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
8.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
9.		Fujifilm X30	4/5	..	..	76/100	4.5/5	4.5/5	Aug 2014	US$ 599	ebay.com
10.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
11.		Olympus E-PL1	..	86/100	..	69/100	4/5	4.5/5	Feb 2010	US$ 599	ebay.com
12.		Olympus E-PL2	3/5	83/100	..	71/100	4.5/5	4.5/5	Jan 2011	US$ 599	ebay.com
13.		Olympus E-PL3	3/5	+ +	..	72/100	4.5/5	4/5	Jun 2011	US$ 599	ebay.com
14.		Olympus E-PM2	3/5	..	..	77/100	5/5	4.5/5	Sep 2012	US$ 499	ebay.com
15.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
16.		Panasonic G2	..	..	..	72/100	4/5	4.5/5	Mar 2010	US$ 599	ebay.com
17.		Panasonic LX100	5/5	+ +	..	85/100	5/5	5/5	Sep 2014	US$ 899	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
