Epson R-D1 vs Nikon D40X

The Epson R-D1 and the Nikon D40X are two digital cameras that were officially introduced, respectively, in March 2004 and March 2007. The R-D1 is a rangefinder-focusing mirrorless camera, while the D40X is a DSLR. Both cameras are equipped with an APS-C sensor. The Epson has a resolution of 6 megapixels, whereas the Nikon provides 10 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Epson R-D1		Nikon D40X
Rangefinder camera		Digital single lens reflex
Leica M mount lenses		Nikon F mount lenses
6 MP – APS-C sensor		10 MP – APS-C sensor
no Video		no Video
ISO 200-1,600		ISO 100-1,600 (100 - 3,200)
Optical viewfinder		Optical viewfinder
2.0" LCD – 235k dots		2.5" LCD – 230k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1 shutter flaps per second		3 shutter flaps per second
142 x 89 x 40 mm, 620 g		124 x 94 x 64 mm, 522 g

Check R-D1 offers at
ebay.com
Check D40X offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Epson R-D1 and the Nikon D40X? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

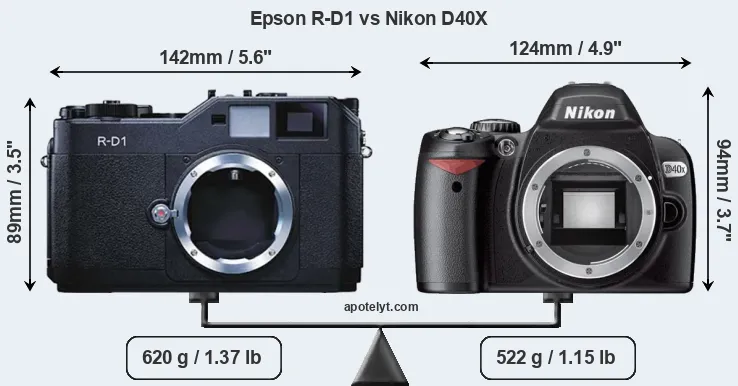

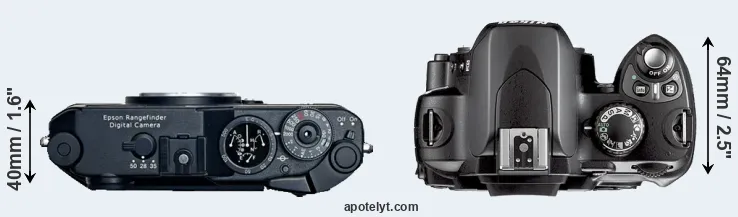

The side-by-side display below illustrates the physical size and weight of the Epson R-D1 and the Nikon D40X. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

The D40X can be obtained in two different colors (black, silver), while the R-D1 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D40X is notably smaller (8 percent) than the Epson R-D1. Moreover, the D40X is markedly lighter (16 percent) than the R-D1. In this context, it is worth noting that neither the R-D1 nor the D40X are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Leica M Lens Catalog (R-D1) and the Nikon Lens Catalog (D40X).

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
2.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
3.		Canon 300D	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
4.		Canon 350D	127 mm	94 mm	64 mm	540 g	400	n	Feb 2005	US$ 899	ebay.com
5.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	US$ 5 499	ebay.com
6.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
7.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
8.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
9.		Nikon D40	124 mm	94 mm	64 mm	522 g	470	n	Nov 2006	US$ 499	ebay.com
10.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
11.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	US$ 629	ebay.com
12.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
13.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
14.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	US$ 599	ebay.com
15.		Nikon D5000	127 mm	104 mm	80 mm	590 g	510	n	Apr 2009	US$ 749	ebay.com
16.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The D40X was launched at a markedly lower price (by 76 percent) than the R-D1, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the D40X is 1 percent bigger. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 10MP, the D40X offers a higher resolution than the R-D1 (6MP), but the D40X has smaller individual pixels (pixel pitch of 6.11μm versus 7.85μm for the R-D1). Yet, the D40X is a much more recent model (by 2 years and 11 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixel-units.

The resolution advantage of the Nikon D40X implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D40X for good quality output (200 dots per inch) amounts to 19.4 x 13 inches or 49.2 x 32.9 cm, for very good quality (250 dpi) 15.5 x 10.4 inches or 39.3 x 26.3 cm, and for excellent quality (300 dpi) 12.9 x 8.6 inches or 32.8 x 21.9 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The Epson R-D1 has a native sensitivity range from ISO 200 to ISO 1600. The corresponding ISO settings for the Nikon D40X are ISO 100 to ISO 1600, with the possibility to increase the ISO range to 100-3200.

Technology-wise, both cameras are equipped with CCD (Charged Coupled Device) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
2.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
3.		Canon 300D	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
4.		Canon 350D	APS-C	8.0	3456	2304	none	21.8	10.8	637	60
5.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
6.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
7.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
8.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
9.		Nikon D40	APS-C	6.0	3008	2000	none	21.0	11.0	561	56
10.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
11.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
12.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
14.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
15.		Nikon D5000	APS-C	12.2	4288	2848	720/24p	22.7	12.5	868	72
16.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The R-D1 and the D40X are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The table below summarizes some of the other core capabilities of the Epson R-D1 and Nikon D40X in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
2.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
3.		Canon 300D	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
4.		Canon 350D	optical	n	1.8 / 115	fixed	n	1/4000s	3.0/s	Y	n
5.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
6.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
7.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
8.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
9.		Nikon D40	optical	n	2.5 / 230	fixed	n	1/4000s	2.5/s	Y	n
10.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
12.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
14.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
15.		Nikon D5000	optical	n	2.7 / 230	full-flex	n	1/4000s	4.0/s	Y	n
16.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The D40X has one, while the R-D1 does not. While the built-in flash of the D40X is not very powerful, it can at times be useful as a fill-in light.

Concerning the storage of imaging data, both the R-D1 and the D40X write their files to SDHC cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Epson R-D1 and Nikon D40X and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
2.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon 300D	Y	- / -	-	-	-	1.1	-	-	-
4.		Canon 350D	Y	- / -	-	-	-	2.0	-	-	-
5.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
6.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
8.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
9.		Nikon D40	Y	- / -	-	-	-	2.0	-	-	-
10.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
12.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
13.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
14.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
15.		Nikon D5000	Y	mono / mono	-	-	mini	2.0	-	-	-
16.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

Studio photographers will appreciate that the Epson R-D1 (unlike the D40X) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the R-D1 and the D40X have been discontinued, but can regularly be found used on ebay. The D40X was replaced by the Nikon D60 , while the R-D1 does not have a direct successor. Further information on the features and operation of the R-D1 and D40X can be found, respectively, in the Epson R-D1 Manual (free pdf) or the online Nikon D40X Manual.

Review summary

So how do things add up? Is the Epson R-D1 better than the Nikon D40X or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Epson R-D1:

• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• More heavily discounted: Has been available for much longer (launched in March 2004).

Reasons to prefer the Nikon D40X:

• More detail: Has more megapixels (10 vs 6MP), which boosts linear resolution by 29%.
• Larger screen: Has a bigger rear LCD (2.5" vs 2.0") for image review and settings control.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (3 vs 1 flaps/sec) to capture the decisive moment.
• Less heavy: Has a lower weight (by 98g or 16 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (76 percent cheaper at launch).
• More modern: Reflects 2 years and 11 months of technical progress since the R-D1 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the D40X is the clear winner of the contest (8 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R-D1 or the D40X. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
2.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
3.		Canon 300D	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
4.		Canon 350D	..	80/100	..	+ +	o	..	Feb 2005	US$ 899	ebay.com
5.		Leica M8	..	..	..	+ +	..	..	Sep 2006	US$ 5 499	ebay.com
6.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
7.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
8.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
9.		Nikon D40	..	81/100	..	+ +	o	4.5/5	Nov 2006	US$ 499	ebay.com
10.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
11.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	US$ 629	ebay.com
12.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
13.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
14.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	US$ 599	ebay.com
15.		Nikon D5000	..	+ +	..	75/100	4/5	4.5/5	Apr 2009	US$ 749	ebay.com
16.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
