Fujifilm X-H2S vs X-M5

The Fujifilm X-H2S and the Fujifilm X-M5 are two digital cameras that were announced, respectively, in May 2022 and October 2025. Both the X-H2S and the X-M5 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. Both cameras offer a resolution of 26 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-H2S		Fujifilm X-M5
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Fujifilm X mount lenses
26 MP – APS-C sensor		26 MP – APS-C sensor
6.2k/30p Video		4K/60p Video
ISO 160-12,800 (80 - 51,200)		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (5760k dots)		No viewfinder, LCD framing
3.0" LCD – 1620k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Swivel touchscreen
15 shutter flaps per second		8 shutter flaps per second
In-body stabilization		Lens stabilization only
Weathersealed body		not weather sealed
580 shots per battery charge		330 shots per battery charge
136 x 93 x 85 mm, 660 g		112 x 67 x 38 mm, 355 g

Check X-H2S price at
amazon.com
Check X-M5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-H2S and the Fujifilm X-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

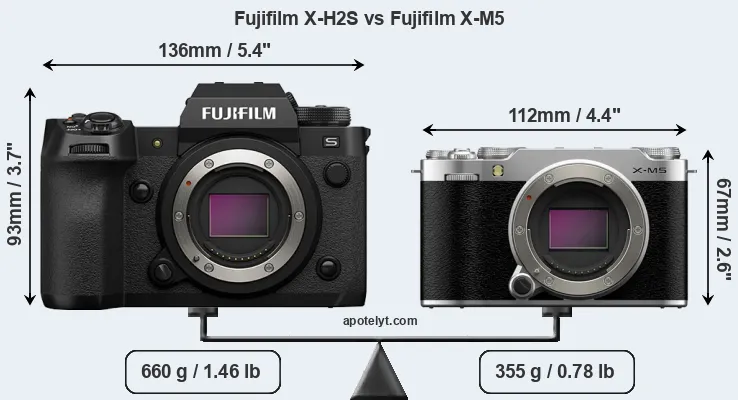

The side-by-side display below illustrates the physical size and weight of the Fujifilm X-H2S and the Fujifilm X-M5. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth measures are rounded to the nearest millimeter.

The X-M5 can be obtained in two different colors (black, silver), while the X-H2S is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-M5 is considerably smaller (41 percent) than the Fujifilm X-H2S. Moreover, the X-M5 is substantially lighter (46 percent) than the X-H2S. It is worth mentioning in this context that the X-H2S is splash and dust resistant, while the X-M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Fujinon X Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the X-H2S gets 580 shots out of its Fujifilm NP-W235 battery, while the X-M5 can take 330 images on a single charge of its Fujifilm NP-W126S power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
2.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
3.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
4.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
5.		Fujifilm X-H1	140 mm	97 mm	86 mm	673 g	310	Y	Feb 2018	US$ 1 899	ebay.com
6.		Fujifilm X-H2	136 mm	93 mm	85 mm	660 g	680	Y	Sep 2022	US$ 1 999	amazon.com
7.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
8.		Fujifilm X-S20	128 mm	85 mm	65 mm	491 g	750	n	May 2023	US$ 1 299	amazon.com
9.		Fujifilm X-T4	135 mm	93 mm	64 mm	607 g	500	Y	Feb 2020	US$ 1 699	ebay.com
10.		Fujifilm X-T5	130 mm	91 mm	64 mm	557 g	580	Y	Nov 2022	US$ 1 699	amazon.com
11.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
12.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
13.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
14.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
15.		Panasonic GH6	138 mm	100 mm	100 mm	823 g	360	Y	Feb 2022	US$ 2 199	amazon.com
16.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
17.		Sony A7 IV	131 mm	96 mm	80 mm	659 g	580	Y	Oct 2021	US$ 2 499	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M5 was launched at a markedly lower price (by 68 percent) than the X-H2S, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Even though the X-H2S has a slightly larger sensor, both cameras offer the same resolution of 26 megapixels. This implies that the X-H2S has a lower pixel density and larger individual pixels (with a pixel pitch of 3.76μm versus 3.76μm for the X-M5), which gives it a potential advantage in terms of light gathering capacity. It should, however, be noted that the X-M5 is much more recent (by 3 years and 4 months) than the X-H2S, and its sensor will have benefitted from technological advances during this time that at least partly compensate for the smaller pixel size. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Fujifilm X-H2S has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The Fujifilm X-M5 offers exactly the same ISO settings.

In terms of underlying technology, the X-H2S is build around a Stacked BSI-CMOS sensor, while the X-M5 uses a BSI-CMOS imager. Both cameras use the X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
2.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
3.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
4.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
5.		Fujifilm X-H1	APS-C	24.0	6000	4000	4K/30p	24.0	13.3	1806	82
6.		Fujifilm X-H2	APS-C	39.8	7728	5152	8k/30p	24.3	13.9	2249	86
7.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
8.		Fujifilm X-S20	APS-C	26.0	6240	4160	4K/60p	24.3	14.0	2315	86
9.		Fujifilm X-T4	APS-C	26.0	6240	4160	4K/60p	24.1	13.6	1995	84
10.		Fujifilm X-T5	APS-C	39.8	7728	5152	6.2k/30p	24.3	13.9	2264	86
11.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
12.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
13.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
14.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
15.		Panasonic GH6	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.4	1555	77
16.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
17.		Sony A7 IV	Full Frame	32.7	7008	4672	4K/60p	25.4	14.7	3379	97
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-H2S provides a higher video resolution than the X-M5. It can shoot video footage at 6.2k/30p, while the X-M5 is limited to 4K/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the X-H2S has an electronic viewfinder (5760k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X-M5 relies on live view and the rear LCD for framing. The table below summarizes some of the other core capabilities of the Fujifilm X-H2S and Fujifilm X-M5 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
2.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
3.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
4.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
5.		Fujifilm X-H1	3690	Y	3.0 / 1040	full-flex	Y	1/8000s	14.0/s	n	Y
6.		Fujifilm X-H2	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
7.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
8.		Fujifilm X-S20	2360	n	3.0 / 1840	swivel	Y	1/4000s	8.0/s	Y	Y
9.		Fujifilm X-T4	3690	n	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
10.		Fujifilm X-T5	3690	n	3.0 / 1840	tilting	Y	1/8000s	15.0/s	n	Y
11.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
14.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
15.		Panasonic GH6	3680	n	3.0 / 1840	full-flex	Y	1/8000s	14.0/s	n	Y
16.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
17.		Sony A7 IV	3686	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the X-H2S, but is missing on the X-M5 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-H2S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The X-H2S writes its imaging data to CFexpress (type B) or SDXC cards, while the X-M5 uses SDXC cards. The X-H2S features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-M5 only has one slot. The X-H2S supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-H2S and Fujifilm X-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
2.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
4.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Fujifilm X-H1	Y	stereo / mono	Y	-	micro	3.0	Y	-	-
6.		Fujifilm X-H2	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
7.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
8.		Fujifilm X-S20	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
9.		Fujifilm X-T4	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
10.		Fujifilm X-T5	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
11.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
12.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
13.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
14.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
15.		Panasonic GH6	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Sony A7 IV	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

Studio photographers will appreciate that the Fujifilm X-H2S (unlike the X-M5) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

Both the X-H2S and the X-M5 are recent models that are part of the current product line-up. The X-H2S replaced the earlier Fujifilm X-H1, while the X-M5 followed on from the Fujifilm X-M1. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm website.

Review summary

So what is the bottom line? Which of the two cameras – the Fujifilm X-H2S or the Fujifilm X-M5 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Fujifilm X-H2S:

• Better video: Provides higher definition movie capture (6.2k/30p vs 4K/60p).
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (15 vs 8 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (580 versus 330) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• More solid recording: Has a full-sized HDMI port for a sturdy connection to an external recorder.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been available for much longer (launched in May 2022).

Reasons to prefer the Fujifilm X-M5:

• More compact: Is smaller (112x67mm vs 136x93mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 305g or 46 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
• More modern: Reflects 3 years and 4 months of technical progress since the X-H2S launch.

If the count of individual advantages (bullet points above) is taken as a guide, the X-H2S is the clear winner of the match-up (15 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-H2S and the Fujifilm X-M5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-H2S or the X-M5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
2.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
3.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
4.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
5.		Fujifilm X-H1	..	+	5/5	86/100	4.5/5	4.5/5	Feb 2018	US$ 1 899	ebay.com
6.		Fujifilm X-H2	5/5	+ +	5/5	89/100	5/5	5/5	Sep 2022	US$ 1 999	amazon.com
7.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
8.		Fujifilm X-S20	5/5	+ +	5/5	86/100	..	4.5/5	May 2023	US$ 1 299	amazon.com
9.		Fujifilm X-T4	5/5	+ +	5/5	88/100	5/5	5/5	Feb 2020	US$ 1 699	ebay.com
10.		Fujifilm X-T5	5/5	+ +	4.5/5	90/100	4.5/5	..	Nov 2022	US$ 1 699	amazon.com
11.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
12.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
13.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
14.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
15.		Panasonic GH6	5/5	+ +	5/5	87/100	5/5	5/5	Feb 2022	US$ 2 199	amazon.com
16.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
17.		Sony A7 IV	5/5	+ +	4.5/5	89/100	4.5/5	4.5/5	Oct 2021	US$ 2 499	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
