Fujifilm X-M5 vs X-T20

The Fujifilm X-M5 and the Fujifilm X-T20 are two digital cameras that were officially introduced, respectively, in October 2025 and January 2017. Both the X-M5 and the X-T20 are mirrorless interchangeable lens cameras that are equipped with an APS-C sensor. The X-M5 has a resolution of 26 megapixels, whereas the X-T20 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Fujifilm X-M5		Fujifilm X-T20
Mirrorless system camera		Mirrorless system camera
Fujifilm X mount lenses		Fujifilm X mount lenses
26 MP – APS-C sensor		24 MP – APS-C sensor
4K/60p Video		4K/30p Video
ISO 160-12,800 (80 - 51,200)		ISO 200-12,800 (100 - 51,200)
No viewfinder, LCD framing		Electronic viewfinder (2360k dots)
3.0" LCD – 1040k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Tilting touchscreen
8 shutter flaps per second		8 shutter flaps per second
330 shots per battery charge		350 shots per battery charge
112 x 67 x 38 mm, 355 g		118 x 83 x 41 mm, 383 g

Check X-M5 price at
amazon.com
Check X-T20 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Fujifilm X-M5 and the Fujifilm X-T20? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

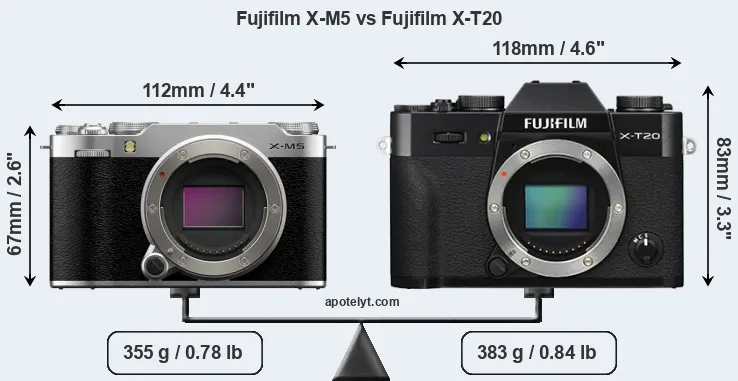

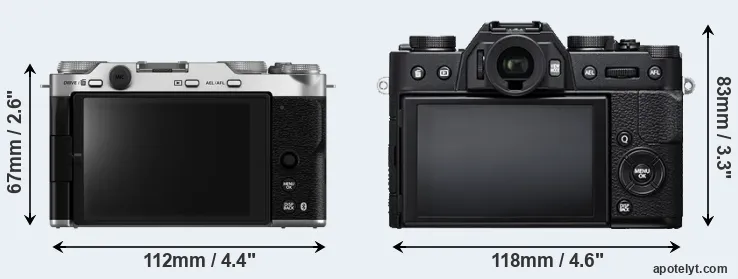

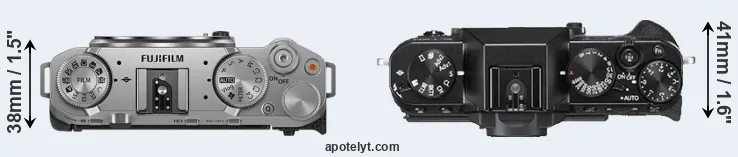

The physical size and weight of the Fujifilm X-M5 and the Fujifilm X-T20 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-T20 is notably larger (31 percent) than the Fujifilm X-M5. Moreover, the X-T20 is markedly heavier (8 percent) than the X-M5. In this context, it is worth noting that neither the X-M5 nor the X-T20 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Fujinon X Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
2.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
3.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-A5	117 mm	68 mm	40 mm	361 g	450	n	Jan 2018	US$ 399	ebay.com
5.		Fujifilm X-E2S	129 mm	75 mm	37 mm	350 g	350	n	Jan 2016	US$ 699	ebay.com
6.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
7.		Fujifilm X-E4	121 mm	73 mm	33 mm	364 g	380	n	Jan 2021	US$ 849	ebay.com
8.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
9.		Fujifilm X-T10	118 mm	83 mm	41 mm	381 g	350	n	May 2015	US$ 799	ebay.com
10.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
11.		Fujifilm X-T30 II	118 mm	83 mm	47 mm	383 g	380	n	Sep 2021	US$ 899	ebay.com
12.		Fujifilm X-T100	121 mm	83 mm	47 mm	448 g	430	n	May 2018	US$ 599	ebay.com
13.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The X-M5 was launched at a somewhat lower price (by 11 percent) than the X-T20, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

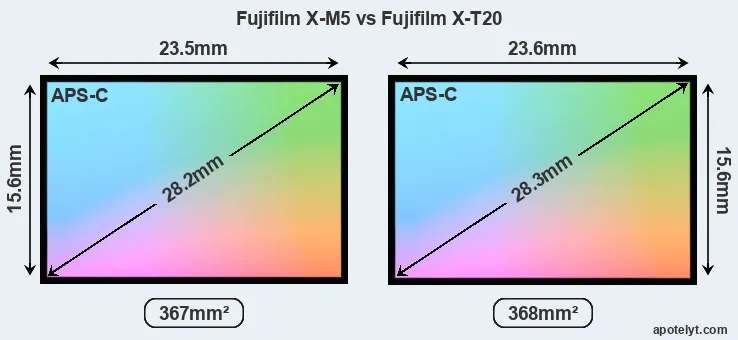

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

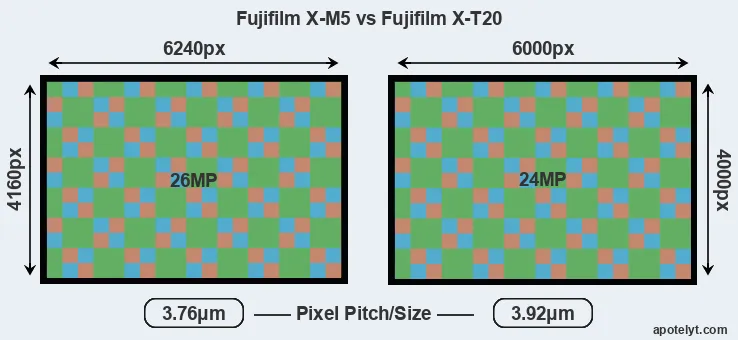

Despite having a slightly smaller sensor, the Fujifilm X-M5 offers a higher resolution of 26 megapixels, compared with 24 MP of the Fujifilm X-T20. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 3.92μm for the X-T20). However, it should be noted that the X-M5 is much more recent (by 8 years and 8 months) than the X-T20, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Fujifilm X-M5 has a native sensitivity range from ISO 160 to ISO 12800, which can be extended to ISO 80-51200. The corresponding ISO settings for the Fujifilm X-T20 are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the X-M5 is build around a BSI-CMOS sensor, while the X-T20 uses a CMOS imager. Both cameras use the X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
2.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
3.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
4.		Fujifilm X-A5	APS-C	24.0	6000	4000	4K/15p	24.0	13.3	1800	82
5.		Fujifilm X-E2S	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
7.		Fujifilm X-E4	APS-C	26.0	6240	4160	4K/30p	24.2	13.7	2085	85
8.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
9.		Fujifilm X-T10	APS-C	16.0	4896	3264	1080/60p	23.7	12.9	1546	79
10.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
11.		Fujifilm X-T30 II	APS-C	26.0	6240	4160	4K/30p	24.2	13.8	2144	85
12.		Fujifilm X-T100	APS-C	24.0	6000	4000	4K/15p	24.0	13.4	1829	83
13.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the X-M5 provides a higher frame rate than the X-T20. It can shoot video footage at 4K/60p, while the X-T20 is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the X-T20 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X-M5 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Fujifilm X-M5 and Fujifilm X-T20 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
2.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
3.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
4.		Fujifilm X-A5	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X-E2S	2360	n	3.0 / 1040	fixed	n	1/4000s	7.0/s	Y	n
6.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
7.		Fujifilm X-E4	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	n	n
8.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
9.		Fujifilm X-T10	2360	n	3.0 / 920	tilting	n	1/4000s	8.0/s	Y	n
10.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
11.		Fujifilm X-T30 II	2360	n	3.0 / 1620	tilting	Y	1/4000s	8.0/s	Y	n
12.		Fujifilm X-T100	2360	n	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
13.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Fujifilm X-T20 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the X-M5 and the X-T20 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Fujifilm X-M5 and Fujifilm X-T20 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
3.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
4.		Fujifilm X-A5	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
5.		Fujifilm X-E2S	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
7.		Fujifilm X-E4	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
8.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
9.		Fujifilm X-T10	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
10.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
11.		Fujifilm X-T30 II	Y	stereo / mono	Y	-	micro	3.2	Y	-	Y
12.		Fujifilm X-T100	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
13.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y

It is notable that the X-M5 has a headphone jack, which is not present on the X-T20 This port makes it possible to attach external headphones and monitor the quality of sound during the recording process.

The X-M5 is a recent model that features in the current product line-up of Fujifilm. In contrast, the X-T20 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the X-T20 was succeeded by the Fujifilm X-T100. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Fujifilm website.

Review summary

So how do things add up? Which of the two cameras – the Fujifilm X-M5 or the Fujifilm X-T20 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Arguments in favor of the Fujifilm X-M5:

• Better video: Provides higher movie framerates (4K/60p versus 4K/30p).
• Better sound control: Has a headphone port that enables audio monitoring while recording.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• More compact: Is smaller (112x67mm vs 118x83mm) and thus needs less room in the bag.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More affordable: Was introduced into a lower priced segment (11 percent cheaper at launch).
• More modern: Reflects 8 years and 8 months of technical progress since the X-T20 launch.

Advantages of the Fujifilm X-T20:

• Easier framing: Has an electronic viewfinder for image composition and settings control.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More heavily discounted: Has been around for much longer (launched in January 2017).

If the number of relative strengths (bullet points above) is taken as a guide, the X-M5 is the clear winner of the match-up (9 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Fujifilm X-M5 and the Fujifilm X-T20 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the X-M5 or the X-T20. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
2.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
3.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
4.		Fujifilm X-A5	..	+	4.1/5	..	4/5	3.5/5	Jan 2018	US$ 399	ebay.com
5.		Fujifilm X-E2S	4.5/5	..	..	77/100	4.5/5	4.5/5	Jan 2016	US$ 699	ebay.com
6.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
7.		Fujifilm X-E4	4/5	..	4/5	..	4.5/5	4/5	Jan 2021	US$ 849	ebay.com
8.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
9.		Fujifilm X-T10	4.5/5	+ +	..	80/100	5/5	5/5	May 2015	US$ 799	ebay.com
10.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
11.		Fujifilm X-T30 II	5/5	..	4/5	..	4.5/5	4.5/5	Sep 2021	US$ 899	ebay.com
12.		Fujifilm X-T100	4/5	+	4.5/5	79/100	4/5	4.5/5	May 2018	US$ 599	ebay.com
13.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
