Kodak AZ901 vs Olympus E-1

The Kodak PixPro AZ901 and the Olympus E-1 are two digital cameras that were officially introduced, respectively, in January 2016 and June 2003. The AZ901 is a fixed lens compact, while the E-1 is a DSLR. The cameras are based on a 1/2.3-inch (AZ901) and a Four Thirds (E-1) sensor. The Kodak has a resolution of 20.2 megapixels, whereas the Olympus provides 4.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Kodak AZ901		Olympus E-1
Fixed lens compact camera		Digital single lens reflex
22-1980mm f/3.1-6.8		Four Thirds lenses
20.2 MP – 1/2.3" sensor		4.9 MP – Four Thirds sensor
1080/30p Video		no Video
ISO 100-3,200		ISO 100-800 (100 - 3,200)
Electronic viewfinder (202k dots)		Optical viewfinder
3.0" LCD – 920k dots		1.8" LCD – 134k dots
Swivel screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
5 shutter flaps per second		3 shutter flaps per second
not weather sealed		Weathersealed body
400 shots per battery charge		750 shots per battery charge
139 x 104 x 119 mm, 777 g		141 x 104 x 81 mm, 738 g

Check AZ901 price at
amazon.com
Check E-1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Kodak PixPro AZ901 and the Olympus E-1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

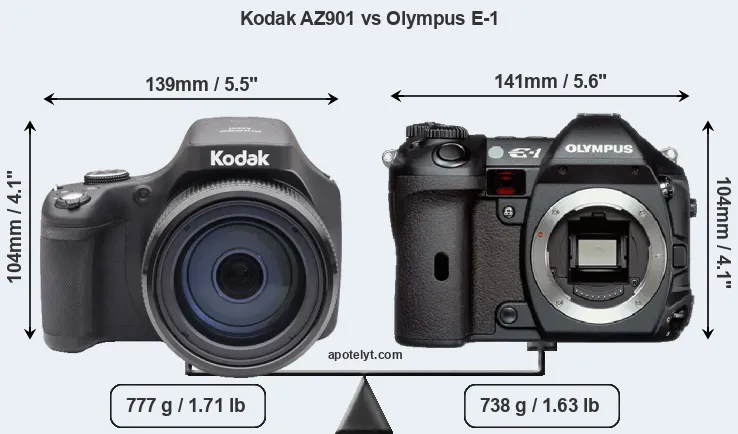

The physical size and weight of the Kodak AZ901 and the Olympus E-1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-1 is somewhat larger (1 percent) than the Kodak AZ901. It is noteworthy in this context that the E-1 is splash and dust-proof, while the AZ901 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the AZ901 has a lens built in, whereas the E-1 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup. You can compare the optics available for the E-1 and their specifications in the Four Thirds Lens Catalog.

Concerning battery life, the AZ901 gets 400 shots out of its Kodak LB-070 battery, while the E-1 can take 750 images on a single charge of its Olympus BLM-1 power pack.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Kodak AZ901	139 mm	104 mm	119 mm	777 g	400	n	Jan 2016	US$ 499	amazon.com
2.		Olympus E-1	141 mm	104 mm	81 mm	738 g	750	Y	Jun 2003	US$ 1 699	ebay.com
3.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
4.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
5.		Leica Digilux 3	146 mm	87 mm	77 mm	606 g	750	n	Sep 2006	US$ 1 499	ebay.com
6.		Leica Q Typ 116	130 mm	80 mm	93 mm	640 g	300	n	Jun 2015	US$ 4 249	ebay.com
7.		Nikon B700	125 mm	85 mm	107 mm	565 g	350	n	Feb 2016	US$ 499	ebay.com
8.		Nikon P900	140 mm	103 mm	137 mm	899 g	360	n	Mar 2015	US$ 599	ebay.com
9.		Olympus E-3	142 mm	116 mm	75 mm	876 g	750	Y	Oct 2007	US$ 1 699	ebay.com
10.		Olympus E-5	142 mm	117 mm	75 mm	873 g	750	Y	Sep 2010	US$ 1 699	ebay.com
11.		Olympus E-300	147 mm	85 mm	64 mm	624 g	750	n	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	140 mm	87 mm	72 mm	637 g	750	n	Jan 2006	US$ 999	ebay.com
13.		Panasonic FZ2500	138 mm	102 mm	135 mm	915 g	350	n	Sep 2016	US$ 1 199	amazon.com
14.		Panasonic ZS70	112 mm	67 mm	41 mm	322 g	380	n	Apr 2017	US$ 449	ebay.com
15.		Sony HX90V	102 mm	58 mm	36 mm	245 g	360	n	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	130 mm	93 mm	103 mm	652 g	300	n	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	130 mm	93 mm	103 mm	660 g	300	n	Feb 2014	US$ 499	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The AZ901 was launched at a lower price than the E-1, despite having a lens built in. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

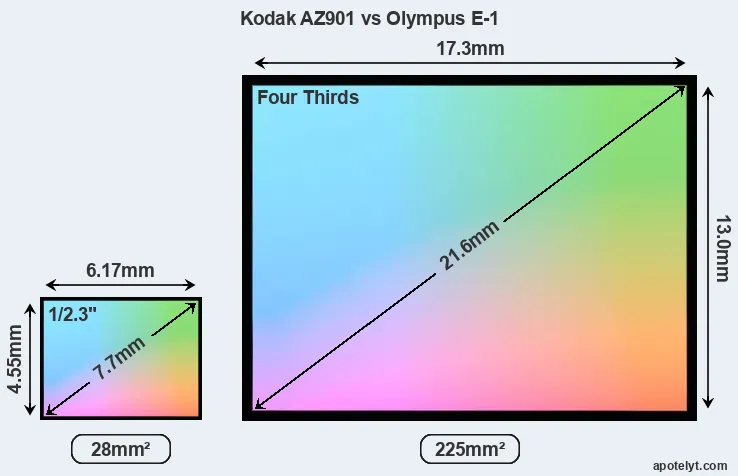

Of the two cameras under consideration, the Kodak AZ901 features a 1/2.3-inch sensor and the Olympus E-1 a Four Thirds sensor. The sensor area in the E-1 is 704 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 5.6 and 2.0. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

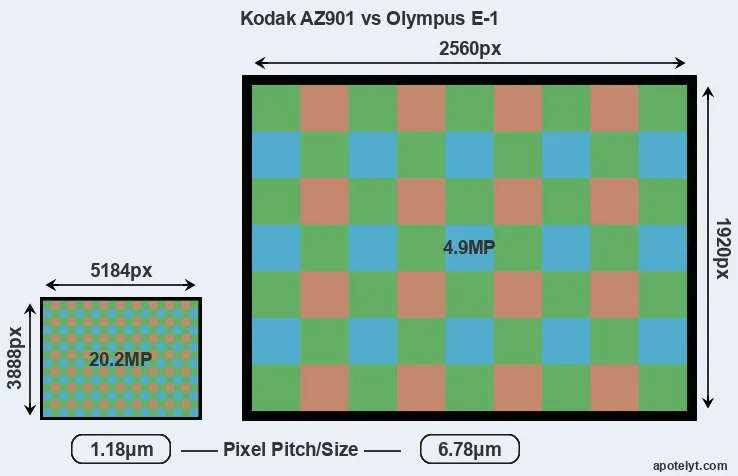

Despite having a smaller sensor, the Kodak AZ901 offers a higher resolution of 20.2 megapixels, compared with 4.9 MP of the Olympus E-1. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 1.18μm versus 6.78μm for the E-1). However, it should be noted that the AZ901 is much more recent (by 12 years and 6 months) than the E-1, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently.

The resolution advantage of the Kodak AZ901 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the AZ901 for good quality output (200 dots per inch) amounts to 25.9 x 19.4 inches or 65.8 x 49.4 cm, for very good quality (250 dpi) 20.7 x 15.6 inches or 52.7 x 39.5 cm, and for excellent quality (300 dpi) 17.3 x 13 inches or 43.9 x 32.9 cm. The corresponding values for the Olympus E-1 are 12.8 x 9.6 inches or 32.5 x 24.4 cm for good quality, 10.2 x 7.7 inches or 26 x 19.5 cm for very good quality, and 8.5 x 6.4 inches or 21.7 x 16.3 cm for excellent quality prints.

The Kodak PixPro AZ901 has a native sensitivity range from ISO 100 to ISO 3200. The corresponding ISO settings for the Olympus E-1 are ISO 100 to ISO 800, with the possibility to increase the ISO range to 100-3200.

In terms of underlying technology, the AZ901 is build around a BSI-CMOS sensor, while the E-1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Kodak AZ901	1/2.3	20.2	5184	3888	1080/30p	20.3	11.7	806	48
2.		Olympus E-1	Four Thirds	4.9	2560	1920	none	20.0	9.7	-145	44
3.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
4.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
5.		Leica Digilux 3	Four Thirds	7.4	3136	2352	none	21.0	10.6	127	53
6.		Leica Q Typ 116	Full Frame	24.0	6000	4000	1080/60p	24.3	12.7	2221	85
7.		Nikon B700	1/2.3	20.2	5184	3888	4K/30p	20.4	11.8	818	48
8.		Nikon P900	1/2.3	15.9	4608	3456	1080/60p	20.2	11.6	727	47
9.		Olympus E-3	Four Thirds	10.0	3648	2736	none	21.6	10.5	571	56
10.		Olympus E-5	Four Thirds	12.2	4032	3024	720/30p	21.6	10.5	519	56
11.		Olympus E-300	Four Thirds	8.0	3264	2448	none	20.4	10.1	-40	48
12.		Olympus E-330	Four Thirds	7.4	3136	2352	none	20.8	10.4	73	52
13.		Panasonic FZ2500	1-inch	20.0	5472	3648	4K/30p	23.0	12.6	538	70
14.		Panasonic ZS70	1/2.3	20.2	5184	3888	4K/30p	19.1	10.6	106	36
15.		Sony HX90V	1/2.3	18.0	4896	3672	1080/60p	20.2	11.6	738	47
16.		Sony HX350	1/2.3	19.9	5152	3864	1080/60p	20.5	11.9	896	49
17.		Sony HX400V	1/2.3	20.2	5184	3888	1080/60p	20.1	11.4	629	45
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The AZ901 indeed provides movie recording capabilities, while the E-1 does not. The highest resolution format that the AZ901 can use is 1080/30p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the AZ901 has an electronic viewfinder (202k dots), while the E-1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Kodak AZ901, the Olympus E-1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Kodak AZ901	202	n	3.0 / 920	swivel	n	1/2000s	5.0/s	Y	Y
2.		Olympus E-1	optical	Y	1.8 / 134	fixed	n	1/4000s	3.0/s	n	n
3.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
4.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
5.		Leica Digilux 3	optical	n	2.5 / 207	fixed	n	1/4000s	3.0/s	Y	n
6.		Leica Q Typ 116	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
7.		Nikon B700	921	n	3.0 / 921	swivel	n	1/4000s	5.0/s	Y	Y
8.		Nikon P900	921	n	3.0 / 921	swivel	n	1/4000s	7.0/s	Y	Y
9.		Olympus E-3	optical	Y	2.5 / 230	swivel	n	1/8000s	5.0/s	Y	Y
10.		Olympus E-5	optical	Y	3.0 / 920	swivel	n	1/8000s	5.0/s	Y	Y
11.		Olympus E-300	optical	n	1.8 / 134	fixed	n	1/4000s	2.5/s	Y	n
12.		Olympus E-330	optical	n	2.5 / 215	tilting	n	1/4000s	3.0/s	Y	n
13.		Panasonic FZ2500	2360	n	3.0 / 1040	swivel	Y	1/4000s	12.0/s	Y	Y
14.		Panasonic ZS70	1166	n	3.0 / 1040	tilting	Y	1/2000s	10.0/s	Y	Y
15.		Sony HX90V	638	n	3.0 / 921	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony HX350	202	n	3.0 / 922	tilting	n	1/4000s	10.0/s	Y	Y
17.		Sony HX400V	210	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The AZ901 has one, while the E-1 does not. While the built-in flash of the AZ901 is not very powerful, it can at times be useful as a fill-in light.

The AZ901 writes its imaging data to SDXC cards, while the E-1 uses Compact Flash or xD Picture cards. The E-1 features dual card slots, which can be very useful in case a memory card fails. In contrast, the AZ901 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Kodak PixPro AZ901 and Olympus E-1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Kodak AZ901	-	stereo / mono	-	-	micro	2.0	Y	-	-
2.		Olympus E-1	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
5.		Leica Digilux 3	Y	stereo / mono	-	-	-	2.0	-	-	-
6.		Leica Q Typ 116	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Nikon B700	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
8.		Nikon P900	-	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Olympus E-3	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-5	Y	stereo / -	-	-	mini	2.0	-	-	-
11.		Olympus E-300	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-330	Y	- / -	-	-	-	2.0	-	-	-
13.		Panasonic FZ2500	Y	stereo / mono	Y	Y	micro	2.0	Y	-	-
14.		Panasonic ZS70	-	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Sony HX90V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony HX350	-	stereo / mono	-	-	micro	2.0	-	-	-
17.		Sony HX400V	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the AZ901 offers wifi support, while the E-1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Studio photographers will appreciate that the Olympus E-1 (unlike the AZ901) features a PC Sync socket, so that professional strobe lights can be controlled by the camera.

The AZ901 is a recent model that features in the current product line-up of Kodak. In contrast, the E-1 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the E-1 was succeeded by the Olympus E-3. Further information on the features and operation of the AZ901 and E-1 can be found, respectively, in the Kodak AZ901 Manual (free pdf) or the online Olympus E-1 Manual.

Review summary

So what is the bottom line? Is the Kodak AZ901 better than the Olympus E-1 or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Kodak PixPro AZ901:

• More detail: Offers more megapixels (20.2 vs 4.9MP) with a 103% higher linear resolution.
• Broader imaging potential: Can record not only still images but also 1080/30p movies.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Larger screen: Has a bigger rear LCD (3.0" vs 1.8") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (920k vs 134k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (5 vs 3 flaps/sec) to capture the decisive moment.
• Ready to shoot: Comes with a built-in lens, while the E-1 requires a separate lens.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More affordable: Was introduced at a lower price, despite coming with a built-in lens.
• More modern: Reflects 12 years and 6 months of technical progress since the E-1 launch.

Reasons to prefer the Olympus E-1:

• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Easier setting verification: Features a control panel on top to check shooting parameters.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• More flexible: Makes it possible to change lenses and thus to use specialty optics.
• Longer lasting: Gets more shots (750 versus 400) out of a single battery charge.
• Better sealing: Is splash and dust sealed for shooting in inclement weather conditions.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Better studio light control: Has a PC Sync socket to connect to professional strobe lights.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in June 2003).

If the number of relative strengths (bullet points above) is taken as a guide, the match-up finishes in a tie (14 points each). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Kodak AZ901 and the Olympus E-1 place the cameras among the top in their class? Find out in the latest Best Superzoom Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the AZ901 or the E-1 perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Kodak AZ901	..	..	..	..	3.5/5	3/5	Jan 2016	US$ 499	amazon.com
2.		Olympus E-1	..	..	..	+	o	..	Jun 2003	US$ 1 699	ebay.com
3.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
4.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
5.		Leica Digilux 3	..	..	..	..	..	..	Sep 2006	US$ 1 499	ebay.com
6.		Leica Q Typ 116	5/5	..	..	80/100	4.5/5	4.5/5	Jun 2015	US$ 4 249	ebay.com
7.		Nikon B700	..	+	..	..	4/5	4/5	Feb 2016	US$ 499	ebay.com
8.		Nikon P900	..	..	..	77/100	4/5	4/5	Mar 2015	US$ 599	ebay.com
9.		Olympus E-3	..	88/100	..	+ +	o	4/5	Oct 2007	US$ 1 699	ebay.com
10.		Olympus E-5	4/5	..	..	75/100	4/5	4.5/5	Sep 2010	US$ 1 699	ebay.com
11.		Olympus E-300	..	..	..	+	o	4.5/5	Sep 2004	US$ 799	ebay.com
12.		Olympus E-330	..	..	..	+	o	..	Jan 2006	US$ 999	ebay.com
13.		Panasonic FZ2500	..	+	..	82/100	4.5/5	5/5	Sep 2016	US$ 1 199	amazon.com
14.		Panasonic ZS70	..	+ +	..	..	4/5	4/5	Apr 2017	US$ 449	ebay.com
15.		Sony HX90V	4/5	+ +	..	..	4/5	4.5/5	Apr 2015	US$ 429	ebay.com
16.		Sony HX350	..	..	..	..	..	4/5	Dec 2016	US$ 449	ebay.com
17.		Sony HX400V	4/5	+ +	..	..	4/5	4/5	Feb 2014	US$ 499	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings were established in reference to similarly priced cameras that were available in the market at the time of the review. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check AZ901 price at
amazon.com
Check E-1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? If you would like to see a different side-by-side camera review, just make a corresponding selection in the search boxes below. As an alternative, you can also directly jump to any one of the listed comparisons that were previously generated by the CAM-parator tool.

~

Check AZ901 price at
amazon.com
Check E-1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
