Leica M10-R vs M9

The Leica M10-R and the Leica M9 are two enthusiast cameras that were revealed to the public, respectively, in July 2020 and September 2009. Both the M10-R and the M9 are rangefinder-focusing mirrorless cameras that are equipped with a full frame sensor. The M10-R has a resolution of 40.9 megapixels, whereas the M9 provides 18.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica M10-R		Leica M9
Rangefinder camera		Rangefinder camera
Leica M mount lenses		Leica M mount lenses
40.9 MP – Full Frame sensor		18.1 MP – Full Frame sensor
no Video		no Video
ISO 100-50,000		ISO 80-2,500
Optical viewfinder		Optical viewfinder
3.0" LCD – 1037k dots		2.5" LCD – 230k dots
Fixed touchscreen		Fixed screen (not touch-sensitive)
4.5 shutter flaps per second		2 shutter flaps per second
Weathersealed body		not weather sealed
210 shots per battery charge		550 shots per battery charge
139 x 80 x 39 mm, 660 g		139 x 80 x 37 mm, 585 g

Check M10-R offers at
ebay.com
Check M9 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica M10-R and the Leica M9? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

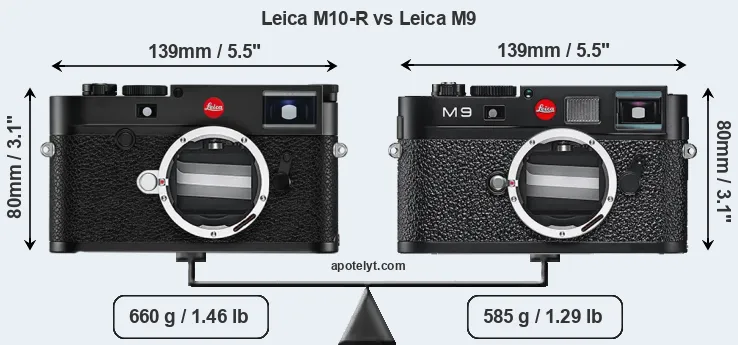

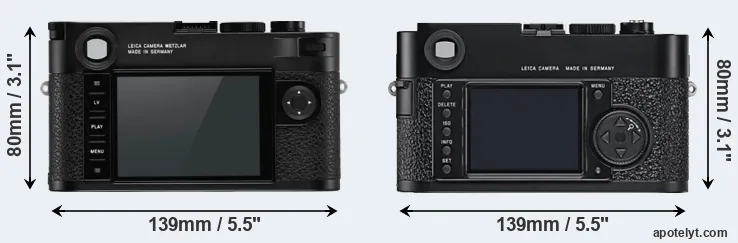

The side-by-side display below illustrates the physical size and weight of the Leica M10-R and the Leica M9. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

Both cameras are available in two different colors (black, silver).

In this particular case, the Leica M10-R and the Leica M9 have exactly the same width and height, and, thus, have identically-sized bodies. However, the M9 is markedly lighter (11 percent) than the M10-R. It is worth mentioning in this context that the M10-R is splash and dust resistant, while the M9 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Leica M Lens Catalog.

Concerning battery life, the M10-R gets 210 shots out of its Leica BP-SCL5 battery, while the M9 can take 550 images on a single charge of its Leica BLI-312 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica M10-R	139 mm	80 mm	39 mm	660 g	210	Y	Jul 2020	US$ 8 299	ebay.com
2.		Leica M9	139 mm	80 mm	37 mm	585 g	550	n	Sep 2009	US$ 7 999	ebay.com
3.		Canon T2i	129 mm	98 mm	62 mm	530 g	440	n	Feb 2010	US$ 699	ebay.com
4.		Leica M Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Sep 2012	US$ 6 949	ebay.com
5.		Leica M-E Typ 240	139 mm	80 mm	42 mm	680 g	500	Y	Jun 2019	US$ 3 999	ebay.com
6.		Leica M Typ 262	139 mm	80 mm	42 mm	680 g	400	Y	Nov 2015	US$ 5 195	ebay.com
7.		Leica M8	139 mm	80 mm	37 mm	591 g	550	n	Sep 2006	US$ 5 499	ebay.com
8.		Leica M10	139 mm	80 mm	39 mm	660 g	210	Y	Jan 2017	US$ 6 599	ebay.com
9.		Leica M10-P	139 mm	80 mm	39 mm	660 g	210	Y	Aug 2018	US$ 7 999	ebay.com
10.		Leica M11	139 mm	80 mm	39 mm	640 g	700	Y	Jan 2022	US$ 8 999	amazon.com
11.		Leica Q2	130 mm	80 mm	92 mm	718 g	370	Y	Mar 2019	US$ 4 999	amazon.com
12.		Leica SL	147 mm	104 mm	39 mm	847 g	400	Y	Oct 2015	US$ 7 449	ebay.com
13.		Leica SL2	146 mm	107 mm	42 mm	953 g	370	Y	Nov 2019	US$ 5 999	amazon.com
14.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The M9 was somewhat cheaper (by 4 percent) than the M10-R at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

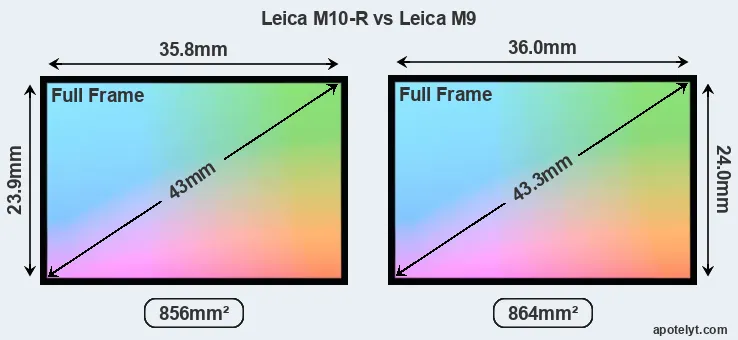

Both cameras under consideration feature a full frame sensor, but their sensors differ slightly in size. The sensor area in the M9 is 1 percent bigger. They nevertheless have the same format factor of 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

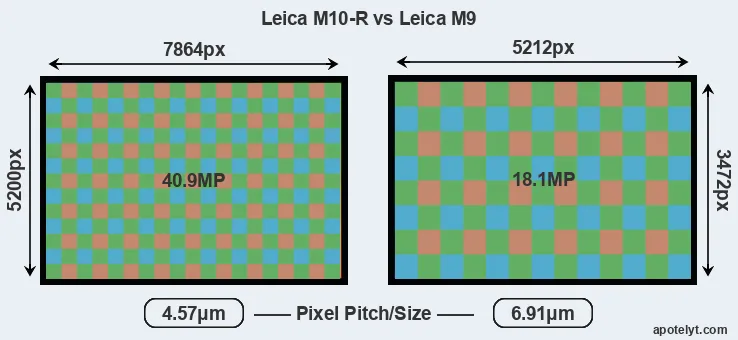

Despite having a slightly smaller sensor, the Leica M10-R offers a higher resolution of 40.9 megapixels, compared with 18.1 MP of the Leica M9. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 4.57μm versus 6.91μm for the M9). However, it should be noted that the M10-R is much more recent (by 10 years and 10 months) than the M9, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Leica M10-R implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the M10-R for good quality output (200 dots per inch) amounts to 39.3 x 26 inches or 99.9 x 66 cm, for very good quality (250 dpi) 31.5 x 20.8 inches or 79.9 x 52.8 cm, and for excellent quality (300 dpi) 26.2 x 17.3 inches or 66.6 x 44 cm. The corresponding values for the Leica M9 are 26.1 x 17.4 inches or 66.2 x 44.1 cm for good quality, 20.8 x 13.9 inches or 53 x 35.3 cm for very good quality, and 17.4 x 11.6 inches or 44.1 x 29.4 cm for excellent quality prints.

The Leica M10-R has a native sensitivity range from ISO 100 to ISO 50000. The corresponding ISO settings for the Leica M9 are ISO 80 to ISO 2500 (no boost).

In terms of underlying technology, the M10-R is build around a CMOS sensor, while the M9 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica M10-R	Full Frame	40.9	7864	5200	none	25.3	14.3	2924	95
2.		Leica M9	Full Frame	18.1	5212	3472	none	22.5	11.7	884	69
3.		Canon T2i	APS-C	17.9	5184	3456	1080/30p	22.1	11.5	784	66
4.		Leica M Typ 240	Full Frame	23.7	5952	3976	1080/25p	24.0	13.3	1860	84
5.		Leica M-E Typ 240	Full Frame	23.7	5952	3976	1080/25p	25.2	14.2	2821	94
6.		Leica M Typ 262	Full Frame	23.7	5952	3976	none	24.8	13.7	2478	90
7.		Leica M8	APS-H	10.4	3936	2630	none	21.1	11.3	663	59
8.		Leica M10	Full Frame	23.8	5952	3992	none	24.4	13.2	2133	86
9.		Leica M10-P	Full Frame	23.8	5952	3992	none	25.1	14.1	2739	93
10.		Leica M11	Full Frame	60.3	9528	6328	none	26.3	14.8	3376	100
11.		Leica Q2	Full Frame	46.7	8368	5584	4K/30p	26.4	13.5	2491	96
12.		Leica SL	Full Frame	24.0	6000	4000	4K/30p	25.0	13.4	1821	88
13.		Leica SL2	Full Frame	46.7	8368	5584	4K/60p	25.3	14.3	2866	95
14.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
Note: DXO values in italics represent estimates based on sensor size and age.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The M10-R and the M9 are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinders of both cameras offer the same field of view (100%), but the viewfinder of the M10-R has a higher magnification than the one of the M9 (0.73x vs 0.68x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The table below summarizes some of the other core capabilities of the Leica M10-R and Leica M9 in connection with corresponding information for a sample of similar cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica M10-R	optical	n	3.0 / 1037	fixed	Y	1/4000s	4.5/s	n	n
2.		Leica M9	optical	n	2.5 / 230	fixed	n	1/4000s	2.0/s	n	n
3.		Canon T2i	optical	n	3.0 / 1040	fixed	n	1/4000s	3.7/s	Y	n
4.		Leica M Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
5.		Leica M-E Typ 240	optical	n	3.0 / 920	fixed	n	1/4000s	3.0/s	n	n
6.		Leica M Typ 262	optical	n	3.0 / 921	fixed	n	1/4000s	3.0/s	n	n
7.		Leica M8	optical	n	2.5 / 230	fixed	n	1/8000s	2.0/s	n	n
8.		Leica M10	optical	n	3.0 / 1037	fixed	n	1/4000s	5.0/s	n	n
9.		Leica M10-P	optical	n	3.0 / 1037	fixed	Y	1/4000s	5.0/s	n	n
10.		Leica M11	optical	n	3.0 / 2333	fixed	Y	1/4000s	4.5/s	n	n
11.		Leica Q2	3680	n	3.0 / 1040	fixed	Y	1/2000s	10.0/s	n	Y
12.		Leica SL	4400	Y	3.0 / 1040	fixed	Y	1/8000s	11.0/s	n	n
13.		Leica SL2	5760	Y	3.2 / 2100	fixed	Y	1/8000s	10.0/s	n	Y
14.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The M10-R has a touchscreen, while the M9 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The Leica M10-R has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the M10-R and the M9 write their files to SDXC cards. The M10-R supports UHS-I cards (Ultra High Speed data transfer of up to 104 MB/s), while the M9 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica M10-R and Leica M9 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica M10-R	Y	- / -	-	-	-	-	Y	-	-
2.		Leica M9	Y	- / -	-	-	-	2.0	-	-	-
3.		Canon T2i	Y	stereo / -	Y	-	mini	2.0	-	-	-
4.		Leica M Typ 240	Y	stereo / mono	-	-	-	2.0	-	-	-
5.		Leica M-E Typ 240	Y	mono / -	-	-	-	2.0	-	-	-
6.		Leica M Typ 262	Y	- / -	-	-	-	2.0	-	-	-
7.		Leica M8	Y	- / -	-	-	-	2.0	-	-	-
8.		Leica M10	Y	- / -	-	-	-	-	Y	-	-
9.		Leica M10-P	Y	- / -	-	-	-	-	Y	-	-
10.		Leica M11	Y	- / -	-	-	-	3.2	Y	-	Y
11.		Leica Q2	Y	stereo / mono	-	-	-	-	Y	-	Y
12.		Leica SL	Y	stereo / mono	Y	Y	full	3.0	Y	-	-
13.		Leica SL2	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
14.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-

It is notable that the M10-R offers wifi support, while the M9 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the M10-R and the M9 have been discontinued, but can regularly be found used on ebay. The M9 was replaced by the Leica M Typ 240, while the M10-R does not have a direct successor. Further information on the features and operation of the M10-R and M9 can be found, respectively, in the Leica M10-R Manual (free pdf) or the online Leica M9 Manual.

Review summary

So what is the bottom line? Which of the two cameras – the Leica M10-R or the Leica M9 – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Leica M10-R:

• More detail: Offers more megapixels (40.9 vs 18.1MP) with a 51% higher linear resolution.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.73x vs 0.68x).
• Larger screen: Has a bigger rear LCD (3.0" vs 2.5") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 230k dots).
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• Faster burst: Shoots at higher frequency (4.5 vs 2 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Faster buffer clearing: Has an SD card interface that supports the UHS-I standard.
• More modern: Reflects 10 years and 10 months of technical progress since the M9 launch.

Reasons to prefer the Leica M9:

• Less heavy: Has a lower weight (by 75g or 11 percent) and is thus easier to take along.
• Longer lasting: Gets more shots (550 versus 210) out of a single battery charge.
• More heavily discounted: Has been around for much longer (launched in September 2009).

If the number of relative strengths (bullet points above) is taken as a guide, the M10-R is the clear winner of the match-up (11 : 3 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the M10-R and the M9 in practical situations. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica M10-R	4.5/5	..	4/5	..	..	4/5	Jul 2020	US$ 8 299	ebay.com
2.		Leica M9	..	..	..	..	4.5/5	..	Sep 2009	US$ 7 999	ebay.com
3.		Canon T2i	..	+ +	..	77/100	4/5	4.5/5	Feb 2010	US$ 699	ebay.com
4.		Leica M Typ 240	4/5	..	..	..	4/5	..	Sep 2012	US$ 6 949	ebay.com
5.		Leica M-E Typ 240	..	..	..	..	..	..	Jun 2019	US$ 3 999	ebay.com
6.		Leica M Typ 262	..	..	..	..	..	..	Nov 2015	US$ 5 195	ebay.com
7.		Leica M8	..	..	..	+ +	..	..	Sep 2006	US$ 5 499	ebay.com
8.		Leica M10	4.5/5	..	..	..	4/5	4.5/5	Jan 2017	US$ 6 599	ebay.com
9.		Leica M10-P	..	..	3/5	..	..	4/5	Aug 2018	US$ 7 999	ebay.com
10.		Leica M11	4.5/5	..	4.5/5	..	4.5/5	4.5/5	Jan 2022	US$ 8 999	amazon.com
11.		Leica Q2	..	..	4.5/5	84/100	4.5/5	4/5	Mar 2019	US$ 4 999	amazon.com
12.		Leica SL	4/5	..	4/5	84/100	4.5/5	4/5	Oct 2015	US$ 7 449	ebay.com
13.		Leica SL2	4/5	..	4.5/5	..	4.5/5	4/5	Nov 2019	US$ 5 999	amazon.com
14.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparing ratings of very distinct cameras or ones that are far apart in terms of their release date have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
