Leica S2 vs Nikon D3S

The Leica S2 and the Nikon D3S are two professional cameras that were revealed to the public, respectively, in September 2008 and October 2009. Both are DSLR (Digital Single Lens Reflex) cameras that are based on a medium format (S2) and a full frame (D3S) sensor. The Leica has a resolution of 37.5 megapixels, whereas the Nikon provides 12.1 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Leica S2		Nikon D3S
Digital single lens reflex		Digital single lens reflex
Leica S mount lenses		Nikon F mount lenses
37.5 MP – Medium Format sensor		12.1 MP – Full Frame sensor
no Video		720/24p Video
ISO 80-1,250		ISO 200-12,800 (100 - 102,400)
Optical viewfinder		Optical viewfinder
3.0" LCD – 460k dots		3.0" LCD – 921k dots
Fixed screen (not touch-sensitive)		Fixed screen (not touch-sensitive)
1.5 shutter flaps per second		11 shutter flaps per second
Weathersealed body		Weathersealed body
160 x 120 x 80 mm, 1410 g		160 x 157 x 88 mm, 1240 g

Check S2 offers at
ebay.com
Check D3S offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Leica S2 and the Nikon D3S? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

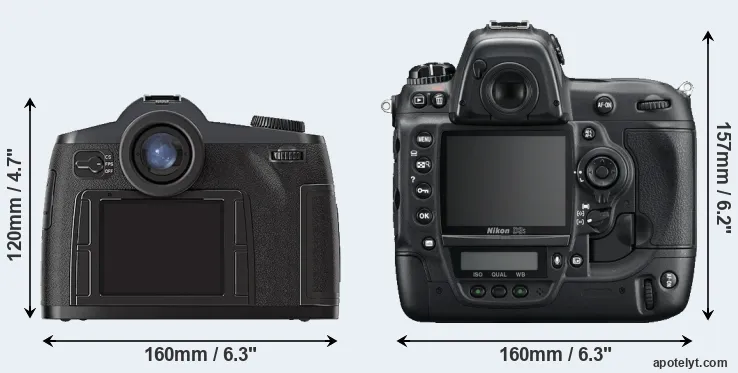

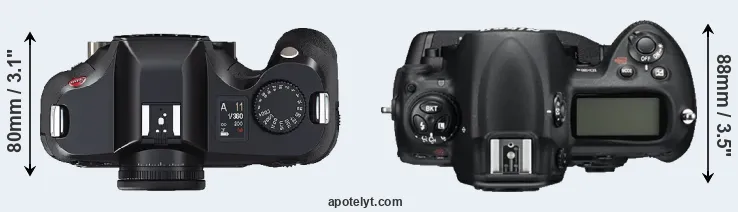

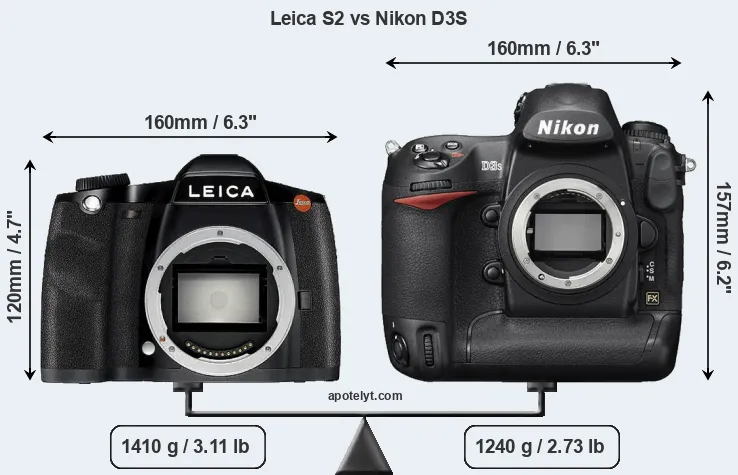

An illustration of the physical size and weight of the Leica S2 and the Nikon D3S is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All size dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3S is notably larger (31 percent) than the Leica S2. However, the D3S is markedly lighter (12 percent) than the S2. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the S2 gets .. shots out of its Leica BP-PRO1 battery, while the D3S can take 4200 images on a single charge of its Nikon EN-EL4a power pack. As can be seen in the images above, the D3S has a battery grip built in. This facilitates image-taking in portrait orientation and gives it additional battery power. In order to provide similar functionality for the S2, Leica provides the Multi-Function Handgrip S vertical grip as an optional accessory (see here on ebay).

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. If you would like to visualize and compare a different camera combination, you can navigate to the CAM-parator app and make your selection from a broad list of cameras there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Leica S2	160 mm	120 mm	80 mm	1410 g	..	Y	Sep 2008	US$ 22 999	ebay.com
2.		Nikon D3S	160 mm	157 mm	88 mm	1240 g	4200	Y	Oct 2009	US$ 5 199	ebay.com
3.		Canon 1Ds Mark III	150 mm	160 mm	80 mm	1385 g	1800	Y	Aug 2007	US$ 7 999	ebay.com
4.		Leica S1	339 mm	214 mm	119 mm	2500 g	..	n	Aug 1996	US$ 21 499	ebay.com
5.		Leica S3	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2018	US$ 18 999	ebay.com
6.		Leica S Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2012	US$ 21 949	ebay.com
7.		Leica S-E Typ 006	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 16 599	ebay.com
8.		Leica S Typ 007	160 mm	120 mm	80 mm	1260 g	..	Y	Sep 2014	US$ 24 499	ebay.com
9.		Nikon D3	160 mm	157 mm	88 mm	1300 g	4300	Y	Aug 2007	US$ 4 999	ebay.com
10.		Nikon D3X	160 mm	157 mm	88 mm	1260 g	4400	Y	Dec 2008	US$ 7 999	ebay.com
11.		Nikon D4	160 mm	157 mm	91 mm	1340 g	2600	Y	Jan 2012	US$ 5 999	ebay.com
12.		Nikon D5	160 mm	159 mm	92 mm	1415 g	3780	Y	Jan 2016	US$ 6 499	ebay.com
13.		Nikon D700	147 mm	123 mm	77 mm	1074 g	1000	Y	Jul 2008	US$ 2 999	ebay.com
14.		Pentax 645D	156 mm	117 mm	119 mm	1480 g	800	Y	Mar 2010	US$ 9 995	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The D3S was launched at a markedly lower price (by 77 percent) than the S2, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

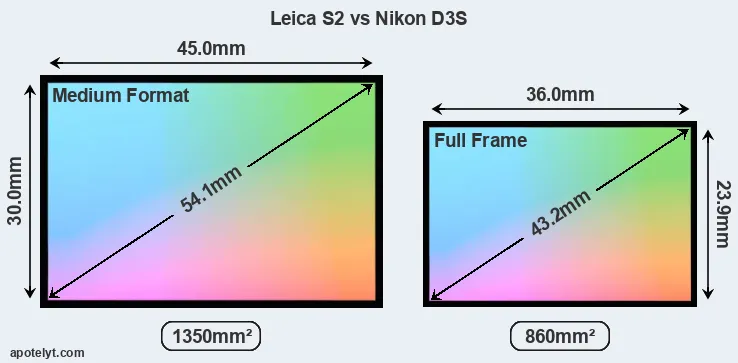

Of the two cameras under consideration, the Leica S2 features a medium format sensor and the Nikon D3S a full frame sensor. The sensor area in the D3S is 36 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 0.8 and 1.0. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

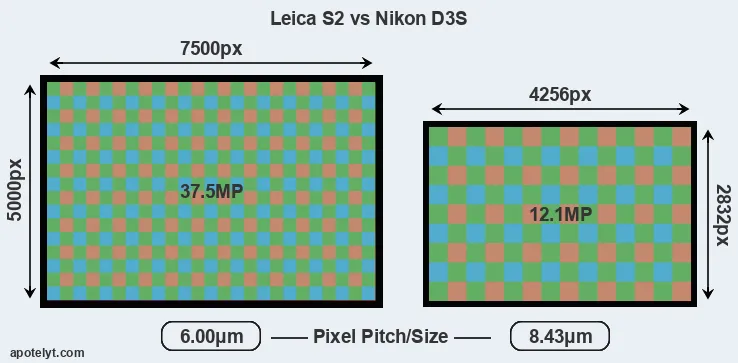

With 37.5MP, the S2 offers a higher resolution than the D3S (12.1MP), but the S2 has smaller individual pixels (pixel pitch of 6.00μm versus 8.43μm for the D3S). Moreover, the D3S is a somewhat more recent model (by 1 year) than the S2, and its sensor might have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the S2 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Leica S2 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the S2 for good quality output (200 dots per inch) amounts to 37.5 x 25 inches or 95.3 x 63.5 cm, for very good quality (250 dpi) 30 x 20 inches or 76.2 x 50.8 cm, and for excellent quality (300 dpi) 25 x 16.7 inches or 63.5 x 42.3 cm. The corresponding values for the Nikon D3S are 21.3 x 14.2 inches or 54.1 x 36 cm for good quality, 17 x 11.3 inches or 43.2 x 28.8 cm for very good quality, and 14.2 x 9.4 inches or 36 x 24 cm for excellent quality prints.

The Leica S2 has a native sensitivity range from ISO 80 to ISO 1250. The corresponding ISO settings for the Nikon D3S are ISO 200 to ISO 12800, with the possibility to increase the ISO range to 100-102400.

In terms of underlying technology, the S2 is build around a CCD sensor, while the D3S uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service assesses and scores the color depth ("DXO Portrait"), dynamic range ("DXO Landscape"), and low-light sensitivity ("DXO Sports") of camera sensors, and also publishes an overall camera score. The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Leica S2	Medium Format	37.5	7500	5000	none	23.9	12.5	2224	82
2.		Nikon D3S	Full Frame	12.1	4256	2832	720/24p	23.5	12.0	3253	82
3.		Canon 1Ds Mark III	Full Frame	21.0	5616	3744	none	24.0	12.0	1663	80
4.		Leica S1	Medium Format	26.4	5140	5140	none	..	..	..	..
5.		Leica S3	Medium Format	64.0	9800	6533	4K/24p	25.6	14.4	3143	98
6.		Leica S Typ 006	Medium Format	37.5	7500	5000	none	23.9	12.2	824	76
7.		Leica S-E Typ 006	Medium Format	37.5	7500	5000	none	25.1	13.7	2763	93
8.		Leica S Typ 007	Medium Format	37.5	7500	5000	4K/24p	25.1	13.7	2763	93
9.		Nikon D3	Full Frame	12.1	4256	2832	none	23.5	12.2	2290	81
10.		Nikon D3X	Full Frame	24.4	6048	4032	none	24.7	13.7	1992	88
11.		Nikon D4	Full Frame	16.2	4928	3280	1080/30p	24.7	13.1	2965	89
12.		Nikon D5	Full Frame	20.7	5588	3712	4K/30p	25.1	12.3	2343	88
13.		Nikon D700	Full Frame	12.1	4256	2832	none	23.5	12.2	2303	80
14.		Pentax 645D	Medium Format	39.5	7264	5440	none	24.6	12.6	1262	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The D3S indeed provides for movie recording, while the S2 does not. The highest resolution format that the D3S can use is 720/24p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The S2 and the D3S are similar in the sense that both have an optical viewfinder. The latter is useful for getting a clear image for framing even in brightly lit environments. The viewfinder in the D3S offers a wider field of view (100%) than the one in the S2 (96%), so that a larger proportion of the captured image is visible in the finder. On the other hand, the viewfinder of the S2 has a higher magnification (0.86x vs 0.70x), so that the size of the image transmitted appears closer to the size seen with the naked human eye. The adjacent table lists some of the other core features of the Leica S2 and Nikon D3S along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Leica S2	optical	Y	3.0 / 460	fixed	n	1/4000s	1.5/s	n	n
2.		Nikon D3S	optical	Y	3.0 / 921	fixed	n	1/8000s	11.0/s	n	n
3.		Canon 1Ds Mark III	optical	Y	3.0 / 230	fixed	n	1/8000s	5.0/s	n	n
4.		Leica S1	optical	n	none / none	none	n	..	0.01/s	n	n
5.		Leica S3	optical	Y	3.0 / 922	fixed	n	1/4000s	3.0/s	n	n
6.		Leica S Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
7.		Leica S-E Typ 006	optical	Y	3.0 / 922	fixed	n	1/4000s	1.5/s	n	n
8.		Leica S Typ 007	optical	Y	3.0 / 922	fixed	n	1/4000s	3.5/s	n	n
9.		Nikon D3	optical	Y	3.0 / 922	fixed	n	1/8000s	11.0/s	n	n
10.		Nikon D3X	optical	Y	3.0 / 922	fixed	n	1/8000s	5.0/s	n	n
11.		Nikon D4	optical	Y	3.2 / 921	fixed	n	1/8000s	11.0/s	n	n
12.		Nikon D5	optical	Y	3.2 / 2359	fixed	Y	1/8000s	14.0/s	n	n
13.		Nikon D700	optical	Y	3.0 / 922	fixed	n	1/8000s	8.0/s	Y	n
14.		Pentax 645D	optical	Y	3.0 / 921	fixed	n	1/4000s	1.1/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The Nikon D3S has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The S2 writes its imaging data to Compact Flash or SDHC cards, while the D3S uses Compact Flash cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Leica S2 and Nikon D3S and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Leica S2	Y	- / -	-	-	mini	2.0	-	-	-
2.		Nikon D3S	Y	stereo / -	-	-	mini	2.0	-	-	-
3.		Canon 1Ds Mark III	Y	mono / -	-	-	-	2.0	-	-	-
4.		Leica S1	-	- / -	-	-	-	-	-	-	-
5.		Leica S3	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
6.		Leica S Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
7.		Leica S-E Typ 006	Y	- / -	-	-	mini	2.0	-	-	-
8.		Leica S Typ 007	Y	stereo / mono	Y	Y	mini	3.0	Y	-	-
9.		Nikon D3	Y	- / -	-	-	mini	2.0	-	-	-
10.		Nikon D3X	Y	- / -	-	-	mini	2.0	-	-	-
11.		Nikon D4	Y	mono / mono	Y	Y	micro	2.0	-	-	-
12.		Nikon D5	Y	stereo / mono	Y	Y	mini	3.0	-	-	-
13.		Nikon D700	Y	- / -	-	-	mini	2.0	-	-	-
14.		Pentax 645D	Y	stereo / -	-	-	-	2.0	-	-	-

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

Both the S2 and the D3S have been discontinued, but can regularly be found used on ebay. The S2 was replaced by the Leica S Typ 006, while the D3S was followed by the Nikon D4. Further information on the features and operation of the S2 and D3S can be found, respectively, in the Leica S2 Manual (free pdf) or the online Nikon D3S Manual.

Review summary

So how do things add up? Which of the two cameras – the Leica S2 or the Nikon D3S – has the upper hand? Is one clearly better than the other? The listing below highlights the relative strengths of the two models.

Advantages of the Leica S2:

• More detail: Offers more megapixels (37.5 vs 12.1MP) with a 76% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Larger viewfinder image: Features a viewfinder with a higher magnification (0.86x vs 0.70x).
• More compact: Is smaller (160x120mm vs 160x157mm) and thus needs less room in the bag.
• More prestigious: Has the Leica luxury appeal, which ensures a high resale price.
• More heavily discounted: Has been on the market for longer (launched in September 2008).

Arguments in favor of the Nikon D3S:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Broader imaging potential: Can capture not only stills but also 720/24p video.
• More complete view: Has a viewfinder with a larger field of view (100% vs 96%).
• More detailed LCD: Has a higher resolution rear screen (921k vs 460k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (11 vs 1.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Less heavy: Has a lower weight (by 170g or 12 percent) and is thus easier to take along.
• More portrait friendly: Features an integrated vertical grip for easier portrait shooting.
• More affordable: Was introduced into a lower priced category (77 percent cheaper at launch).
• More modern: Was introduced somewhat (1 year) more recently.

If the count of relative strengths (bullet points above) is taken as a measure, the D3S is the clear winner of the contest (11 : 6 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Leica S2 and the Nikon D3S place the cameras among the top in their class? Find out in the latest Best DSLR Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the S2 or the D3S perform in practice. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Leica S2	..	..	..	..	..	..	Sep 2008	US$ 22 999	ebay.com
2.		Nikon D3S	5/5	..	..	89/100	4.5/5	5/5	Oct 2009	US$ 5 199	ebay.com
3.		Canon 1Ds Mark III	..	..	..	+ +	4.5/5	..	Aug 2007	US$ 7 999	ebay.com
4.		Leica S1	..	..	..	..	..	..	Aug 1996	US$ 21 499	ebay.com
5.		Leica S3	..	..	..	..	..	..	Sep 2018	US$ 18 999	ebay.com
6.		Leica S Typ 006	..	..	..	..	..	..	Sep 2012	US$ 21 949	ebay.com
7.		Leica S-E Typ 006	..	..	..	..	..	..	Sep 2014	US$ 16 599	ebay.com
8.		Leica S Typ 007	4/5	..	..	..	..	..	Sep 2014	US$ 24 499	ebay.com
9.		Nikon D3	..	..	..	+ +	5/5	4.5/5	Aug 2007	US$ 4 999	ebay.com
10.		Nikon D3X	..	..	..	86/100	4/5	5/5	Dec 2008	US$ 7 999	ebay.com
11.		Nikon D4	..	..	..	..	4.5/5	4.5/5	Jan 2012	US$ 5 999	ebay.com
12.		Nikon D5	..	..	4/5	89/100	4.5/5	5/5	Jan 2016	US$ 6 499	ebay.com
13.		Nikon D700	..	89/100	..	+ +	4.5/5	4.5/5	Jul 2008	US$ 2 999	ebay.com
14.		Pentax 645D	5/5	..	..	..	..	..	Mar 2010	US$ 9 995	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
