Nikon 1 J5 vs D3500

The Nikon 1 J5 and the Nikon D3500 are two digital cameras that were revealed to the public, respectively, in April 2015 and August 2018. The J5 is a mirrorless interchangeable lens camera, while the D3500 is a DSLR. The cameras are based on an one-inch (J5) and an APS-C (D3500) sensor. The J5 has a resolution of 20.7 megapixels, whereas the D3500 provides 24 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Nikon 1 J5		Nikon D3500
Mirrorless system camera		Digital single lens reflex
Nikon 1 mount lenses		Nikon F mount lenses
20.7 MP – 1" sensor		24 MP – APS-C sensor
4K/15p Video		1080/60p Video
ISO 160-12,800		ISO 100-25,600
No viewfinder, LCD framing		Optical viewfinder
3.0" LCD – 1037k dots		3.0" LCD – 921k dots
Tilting touchscreen		Fixed screen (not touch-sensitive)
60 shutter flaps per second		5 shutter flaps per second
250 shots per battery charge		1550 shots per battery charge
98 x 60 x 32 mm, 231 g		124 x 97 x 70 mm, 415 g

Check J5 offers at
ebay.com
Check D3500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Nikon 1 J5 and the Nikon D3500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

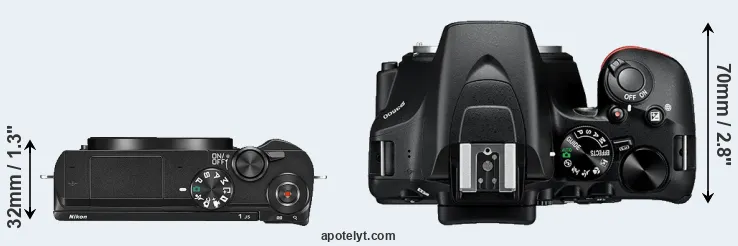

The physical size and weight of the Nikon 1 J5 and the Nikon D3500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The J5 can be obtained in three different colors (black, silver, white), while the D3500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Nikon D3500 is considerably larger (105 percent) than the Nikon 1 J5. Moreover, the D3500 is substantially heavier (80 percent) than the J5. In this context, it is worth noting that neither the J5 nor the D3500 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	98 mm	60 mm	32 mm	231 g	250	n	Apr 2015	US$ 399	ebay.com
2.		Nikon D3500	124 mm	97 mm	70 mm	415 g	1550	n	Aug 2018	US$ 429	ebay.com
3.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	98 mm	58 mm	31 mm	209 g	220	n	Oct 2015	US$ 529	ebay.com
5.		Canon G9 X Mark II	98 mm	58 mm	31 mm	206 g	235	n	Jan 2017	US$ 529	ebay.com
6.		Nikon 1 J4	100 mm	60 mm	29 mm	232 g	300	n	Apr 2014	US$ 549	ebay.com
7.		Nikon 1 V3	111 mm	65 mm	33 mm	381 g	310	n	Mar 2014	US$ 799	ebay.com
8.		Nikon D3200	125 mm	96 mm	77 mm	505 g	540	n	Apr 2012	US$ 599	ebay.com
9.		Nikon D3300	124 mm	98 mm	76 mm	430 g	700	n	Jan 2014	US$ 499	ebay.com
10.		Nikon D3400	124 mm	98 mm	76 mm	445 g	1200	n	Aug 2016	US$ 499	ebay.com
11.		Nikon D5300	125 mm	98 mm	76 mm	480 g	600	n	Oct 2013	US$ 799	ebay.com
12.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
13.		Panasonic FZ1000	137 mm	99 mm	131 mm	831 g	360	n	Jun 2014	US$ 899	ebay.com
14.		Sony A5000	110 mm	63 mm	36 mm	269 g	420	n	Jan 2014	US$ 449	ebay.com
15.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
16.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
17.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. The J5 was somewhat cheaper (by 7 percent) than the D3500 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Nikon 1 J5 features an one-inch sensor and the Nikon D3500 an APS-C sensor. The sensor area in the D3500 is 216 percent bigger. As a result of these sensor size differences, the cameras have a format factor of, respectively, 2.7 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

In terms of chip-set technology, the J5 uses a more advanced image processing engine (EXPEED 5) than the D3500 (EXPEED 4), with benefits for noise reduction, color accuracy, and processing speed.

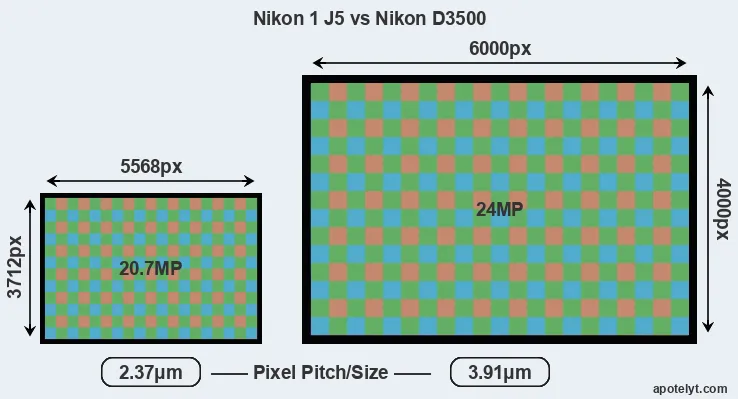

With 24MP, the D3500 offers a higher resolution than the J5 (20.7MP), but the D3500 nevertheless has larger individual pixels (pixel pitch of 3.91μm versus 2.37μm for the J5) due to its larger sensor. Moreover, the D3500 is a much more recent model (by 3 years and 4 months) than the J5, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixel-units. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Nikon D3500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the D3500 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Nikon 1 J5 are 27.8 x 18.6 inches or 70.7 x 47.1 cm for good quality, 22.3 x 14.8 inches or 56.6 x 37.7 cm for very good quality, and 18.6 x 12.4 inches or 47.1 x 31.4 cm for excellent quality prints.

The J5 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Nikon 1 J5 has a native sensitivity range from ISO 160 to ISO 12800. The corresponding ISO settings for the Nikon D3500 are ISO 100 to ISO 25600 (no boost).

In terms of underlying technology, the J5 is build around a BSI-CMOS sensor, while the D3500 uses a CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Nikon 1 J5	1-inch	20.7	5568	3712	4K/15p	21.1	12.0	479	65
2.		Nikon D3500	APS-C	24.0	6000	4000	1080/60p	24.0	13.4	1851	83
3.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
4.		Canon G9 X	1-inch	20.0	5472	3648	1080/60p	21.5	12.3	495	63
5.		Canon G9 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.9	12.5	522	65
6.		Nikon 1 J4	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	426	53
7.		Nikon 1 V3	1-inch	18.2	5232	3488	1080/60p	20.8	10.7	384	52
8.		Nikon D3200	APS-C	24.1	6016	4000	1080/30p	24.1	13.2	1131	81
9.		Nikon D3300	APS-C	24.0	6000	4000	1080/60p	24.3	12.8	1385	82
10.		Nikon D3400	APS-C	24.0	6000	4000	1080/60p	24.8	13.9	1192	86
11.		Nikon D5300	APS-C	24.0	6000	4000	1080/60p	24.0	13.9	1338	83
12.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
13.		Panasonic FZ1000	1-inch	20.0	5472	3648	4K/30p	22.1	11.7	517	64
14.		Sony A5000	APS-C	19.8	5456	3632	1080/60i	23.8	13.0	1089	79
15.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
16.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
17.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the J5 provides a higher video resolution than the D3500. It can shoot video footage at 4K/15p, while the D3500 is limited to 1080/60p.

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. For example, the D3500 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the J5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Nikon 1 J5, the Nikon D3500, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Nikon 1 J5	none	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
2.		Nikon D3500	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
3.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
4.		Canon G9 X	none	n	3.0 / 1040	fixed	Y	1/2000s	6.0/s	Y	Y
5.		Canon G9 X Mark II	none	n	3.0 / 1040	fixed	Y	1/2000s	8.2/s	Y	Y
6.		Nikon 1 J4	none	n	3.0 / 1037	Fixed	Y	1/4000s	60.0/s	Y	n
7.		Nikon 1 V3	optional	n	3.0 / 1037	tilting	Y	1/4000s	60.0/s	Y	n
8.		Nikon D3200	optical	n	3.0 / 921	fixed	n	1/4000s	4.0/s	Y	n
9.		Nikon D3300	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
10.		Nikon D3400	optical	n	3.0 / 921	fixed	n	1/4000s	5.0/s	Y	n
11.		Nikon D5300	optical	n	3.2 / 1037	swivel	n	1/4000s	5.0/s	Y	n
12.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
13.		Panasonic FZ1000	2359	n	3.0 / 921	swivel	n	1/4000s	12.0/s	Y	Y
14.		Sony A5000	none	n	3.0 / 461	tilting	n	1/4000s	3.5/s	Y	n
15.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
16.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
17.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One differentiating feature between the two cameras concerns the touch sensitivity of the rear screen. The J5 has a touchscreen, while the D3500 has a conventional panel. Touch control can be particularly helpful, for example, for setting the focus point.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the J5 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Nikon 1 J5 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the J5 and the D3500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Nikon 1 J5 and Nikon D3500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Nikon 1 J5	-	stereo / mono	-	-	micro	2.0	Y	Y	-
2.		Nikon D3500	Y	mono / mono	-	-	mini	2.0	-	-	Y
3.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
4.		Canon G9 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
5.		Canon G9 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	Y
6.		Nikon 1 J4	-	stereo / mono	-	-	mini	2.0	Y	-	-
7.		Nikon 1 V3	-	stereo / mono	Y	-	mini	2.0	Y	-	-
8.		Nikon D3200	Y	mono / mono	Y	-	mini	2.0	-	-	-
9.		Nikon D3300	Y	mono / mono	Y	-	mini	2.0	-	-	-
10.		Nikon D3400	Y	mono / mono	-	-	mini	2.0	-	-	Y
11.		Nikon D5300	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
12.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Panasonic FZ1000	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
14.		Sony A5000	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the J5 offers wifi support, while the D3500 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both the J5 and the D3500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Nikon. Further information on the features and operation of the J5 and D3500 can be found, respectively, in the Nikon 1 J5 Manual (free pdf) or the online Nikon D3500 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Nikon 1 J5 and the Nikon D3500? Which camera is better? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Nikon 1 J5:

• Better jpgs: Has a more modern image processing engine (EXPEED 5 vs EXPEED 4).
• Better video: Provides higher definition movie capture (4K/15p vs 1080/60p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 921k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (60 vs 5 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (98x60mm vs 124x97mm) and thus needs less room in the bag.
• Less heavy: Is lighter (by 184g or 44 percent) and hence easier to carry around.
• More legacy lens friendly: Can take a broad range of non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been available for much longer (launched in April 2015).

Arguments in favor of the Nikon D3500:

• More detail: Has more megapixels (24 vs 20.7MP), which boosts linear resolution by 8%.
• Better image quality: Is equipped with a larger and more technologically advanced sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Gets more shots (1550 versus 250) out of a single battery charge.
• Better lighting: Features a hotshoe and can thus hold and trigger an external flash gun.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• More modern: Reflects 3 years and 4 months of technical progress since the J5 launch.

If the count of individual advantages (bullet points above) is taken as a guide, the J5 is the clear winner of the match-up (16 : 10 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Nikon 1 J5 and the Nikon D3500 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best DSLR Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the J5 or the D3500. User reviews that are available, for instance, at amazon can sometimes shed light on these issues, but such feedback is all too often partial, inconsistent, and inaccurate.

Expert reviews

This is why hands-on reviews by experts are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Nikon 1 J5	..	..	..	..	4.5/5	4.5/5	Apr 2015	US$ 399	ebay.com
2.		Nikon D3500	4/5	..	4/5	75/100	4/5	4.5/5	Aug 2018	US$ 429	ebay.com
3.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
4.		Canon G9 X	3.5/5	+ +	..	..	4.5/5	4.5/5	Oct 2015	US$ 529	ebay.com
5.		Canon G9 X Mark II	4/5	..	4/5	75/100	4.5/5	4.5/5	Jan 2017	US$ 529	ebay.com
6.		Nikon 1 J4	3/5	..	..	..	4.5/5	4/5	Apr 2014	US$ 549	ebay.com
7.		Nikon 1 V3	3/5	..	..	76/100	4.5/5	4/5	Mar 2014	US$ 799	ebay.com
8.		Nikon D3200	5/5	+ +	..	73/100	4.5/5	4.5/5	Apr 2012	US$ 599	ebay.com
9.		Nikon D3300	3/5	+	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 499	ebay.com
10.		Nikon D3400	4/5	+	4/5	76/100	4/5	4.5/5	Aug 2016	US$ 499	ebay.com
11.		Nikon D5300	4/5	+ +	..	79/100	4.5/5	4.5/5	Oct 2013	US$ 799	ebay.com
12.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
13.		Panasonic FZ1000	4/5	+ +	..	82/100	4.5/5	4.5/5	Jun 2014	US$ 899	ebay.com
14.		Sony A5000	3/5	+	..	..	4.5/5	4.5/5	Jan 2014	US$ 449	ebay.com
15.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
16.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
17.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. Thus, a score needs to be put into the context of the launch date and the launch price of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.

Check J5 offers at
ebay.com
Check D3500 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you would like to check on the differences and similarities of other camera models, just make your choice using the following search menu. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check J5 offers at
ebay.com
Check D3500 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
