Olympus E-420 vs E-PL7

The Olympus E-420 and the Olympus PEN E-PL7 are two digital cameras that were revealed to the public, respectively, in March 2008 and August 2014. The E-420 is a DSLR, while the E-PL7 is a mirrorless interchangeable lens camera. Both cameras are equipped with a Four Thirds sensor. The E-420 has a resolution of 10 megapixels, whereas the E-PL7 provides 15.9 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Olympus E-420		Olympus E-PL7
Digital single lens reflex		Mirrorless system camera
Four Thirds lenses		Micro Four Thirds lenses
10 MP – Four Thirds sensor		15.9 MP – Four Thirds sensor
no Video		1080/30p Video
ISO 100-1,600		ISO 200-25,600
Optical viewfinder		Viewfinder optional
2.7" LCD – 215k dots		3.0" LCD – 1037k dots
Fixed screen (not touch-sensitive)		Tilting touchscreen
3.5 shutter flaps per second		8 shutter flaps per second
Lens stabilization only		In-body stabilization
500 shots per battery charge		350 shots per battery charge
130 x 91 x 53 mm, 440 g		115 x 67 x 38 mm, 357 g

Check E-420 offers at
ebay.com
Check E-PL7 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Olympus E-420 and the Olympus PEN E-PL7? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

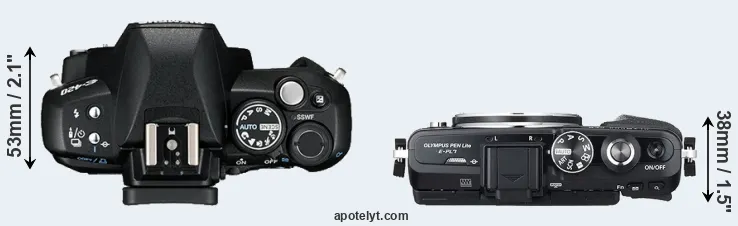

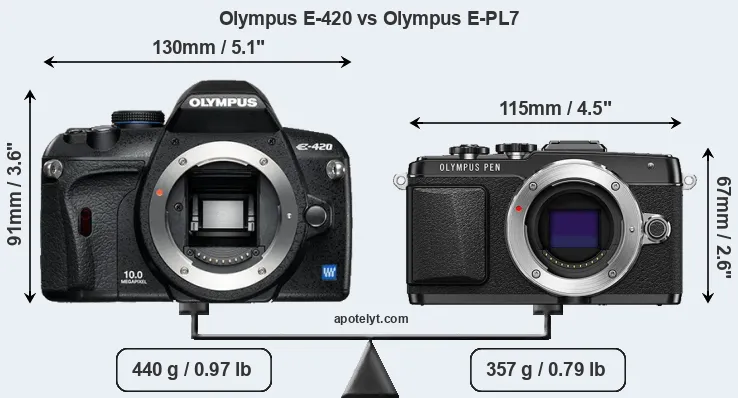

An illustration of the physical size and weight of the Olympus E-420 and the Olympus E-PL7 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

The E-PL7 can be obtained in two different colors (black, silver), while the E-420 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Olympus E-PL7 is considerably smaller (35 percent) than the Olympus E-420. Moreover, the E-PL7 is markedly lighter (19 percent) than the E-420. In this context, it is worth noting that neither the E-420 nor the E-PL7 are weather-sealed.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Both cameras have similarly sized sensors, but DSLRs have a larger flange-to-focal plane distance than mirrorless cameras, which imposes contraints on the optical engineering process and generally leads to bigger and heavier lenses. You can compare the optics available for the two cameras in the Four Thirds Lens Catalog (E-420) and the Micro Four Thirds Lens Catalog (E-PL7). Mirrorless cameras, such as the E-PL7, have moreover the advantage that they can use many lenses from other systems via adapters, as they have a relatively short flange to focal plane distance.

Concerning battery life, the E-420 gets 500 shots out of its Olympus BLS-1 battery, while the E-PL7 can take 350 images on a single charge of its Olympus BLS-50 power pack.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Olympus E-420	130 mm	91 mm	53 mm	440 g	500	n	Mar 2008	US$ 599	ebay.com
2.		Olympus E-PL7	115 mm	67 mm	38 mm	357 g	350	n	Aug 2014	US$ 599	ebay.com
3.		Nikon D40X	124 mm	94 mm	64 mm	522 g	520	n	Mar 2007	US$ 729	ebay.com
4.		Nikon D60	126 mm	94 mm	64 mm	522 g	500	n	Jan 2008	US$ 629	ebay.com
5.		Nikon D3000	126 mm	97 mm	64 mm	536 g	500	n	Jul 2009	US$ 599	ebay.com
6.		Olympus E-400	130 mm	91 mm	53 mm	435 g	500	n	Sep 2006	US$ 699	ebay.com
7.		Olympus E-410	130 mm	91 mm	53 mm	435 g	500	n	Mar 2007	US$ 699	ebay.com
8.		Olympus E-450	130 mm	91 mm	53 mm	440 g	500	n	Mar 2009	US$ 499	ebay.com
9.		Olympus E-520	136 mm	92 mm	68 mm	535 g	750	n	May 2008	US$ 699	ebay.com
10.		Olympus E-600	130 mm	94 mm	60 mm	535 g	500	n	Aug 2009	US$ 449	ebay.com
11.		Olympus E-620	130 mm	94 mm	60 mm	521 g	500	n	Feb 2009	US$ 699	ebay.com
12.		Olympus E-M10	119 mm	82 mm	46 mm	396 g	320	n	Jan 2014	US$ 699	ebay.com
13.		Olympus E-M10 II	120 mm	83 mm	47 mm	390 g	320	n	Aug 2015	US$ 649	ebay.com
14.		Olympus E-P5	122 mm	69 mm	37 mm	420 g	330	n	May 2013	US$ 999	ebay.com
15.		Olympus E-PL6	111 mm	64 mm	38 mm	325 g	360	n	May 2013	US$ 599	ebay.com
16.		Olympus E-PL8	115 mm	67 mm	38 mm	357 g	350	n	Sep 2016	US$ 549	ebay.com
17.		Panasonic L10	135 mm	96 mm	78 mm	556 g	450	n	Aug 2007	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The two cameras under review were launched at the same price and fall into the same market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

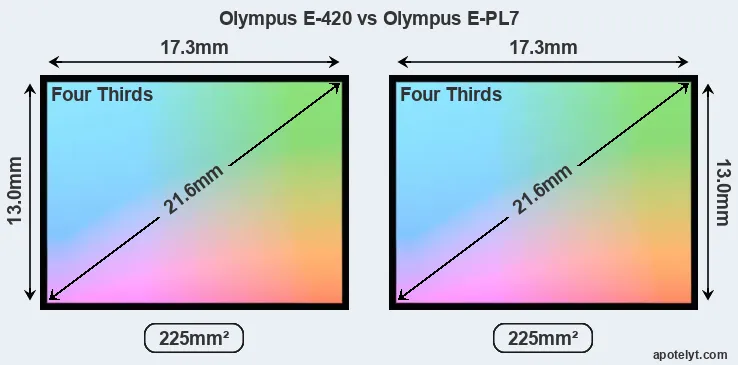

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

Technology-wise, the E-PL7 uses a more advanced image processing engine (TruePic VII) than the E-420 (TruePic III), with benefits for noise reduction, color accuracy, and processing speed.

While the two cameras under review share the same sensor size, the E-PL7 offers a higher resolution of 15.9 megapixels, compared with 10 MP of the E-420. This megapixels advantage translates into a 26 percent gain in linear resolution. On the other hand, these sensor specs imply that the E-PL7 has a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 4.74μm for the E-420). However, it should be noted that the E-PL7 is much more recent (by 6 years and 5 months) than the E-420, and its sensor will have benefitted from technological advances during this time that compensate for the smaller pixel size.

The resolution advantage of the Olympus E-PL7 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the E-PL7 for good quality output (200 dots per inch) amounts to 23 x 17.3 inches or 58.5 x 43.9 cm, for very good quality (250 dpi) 18.4 x 13.8 inches or 46.8 x 35.1 cm, and for excellent quality (300 dpi) 15.4 x 11.5 inches or 39 x 29.3 cm. The corresponding values for the Olympus E-420 are 18.2 x 13.7 inches or 46.3 x 34.7 cm for good quality, 14.6 x 10.9 inches or 37.1 x 27.8 cm for very good quality, and 12.2 x 9.1 inches or 30.9 x 23.2 cm for excellent quality prints.

The Olympus E-420 has a native sensitivity range from ISO 100 to ISO 1600. The corresponding ISO settings for the Olympus PEN E-PL7 are ISO 200 to ISO 25600, with the possibility to increase the ISO range to 100-25600.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). Of the two cameras under consideration, the E-PL7 offers substantially better image quality than the E-420 (overall score 16 points higher). The advantage is based on 1.2 bits higher color depth, 2 EV in additional dynamic range, and 0.7 stops in additional low light sensitivity. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Olympus E-420	Four Thirds	10.0	3648	2736	none	21.5	10.4	527	56
2.		Olympus E-PL7	Four Thirds	15.9	4608	3456	1080/30p	22.7	12.4	873	72
3.		Nikon D40X	APS-C	10.0	3872	2592	none	22.4	11.4	516	63
4.		Nikon D60	APS-C	10.0	3872	2592	none	22.5	11.4	562	65
5.		Nikon D3000	APS-C	10.0	3872	2592	none	22.3	11.1	563	62
6.		Olympus E-400	Four Thirds	10.0	3648	2736	none	21.0	10.6	127	53
7.		Olympus E-410	Four Thirds	10.0	3648	2736	none	21.1	10.0	494	51
8.		Olympus E-450	Four Thirds	10.0	3648	2736	none	21.5	10.5	512	56
9.		Olympus E-520	Four Thirds	10.0	3648	2736	none	21.4	10.4	548	55
10.		Olympus E-600	Four Thirds	12.2	4032	3024	none	21.5	10.3	541	55
11.		Olympus E-620	Four Thirds	12.2	4032	3024	none	21.3	10.3	536	55
12.		Olympus E-M10	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.3	884	72
13.		Olympus E-M10 II	Four Thirds	15.9	4608	3456	1080/60p	23.1	12.5	842	73
14.		Olympus E-P5	Four Thirds	15.9	4608	3456	1080/30p	22.8	12.4	895	72
15.		Olympus E-PL6	Four Thirds	15.9	4608	3456	1080/30p	22.5	12.0	717	68
16.		Olympus E-PL8	Four Thirds	15.9	4608	3456	1080/30p	23.0	12.6	1030	73
17.		Panasonic L10	Four Thirds	10.0	3648	2736	none	21.3	10.8	429	55
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. The E-PL7 indeed provides for movie recording, while the E-420 does not. The highest resolution format that the E-PL7 can use is 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the E-420 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the E-PL7 relies on live view and the rear LCD for framing. That said, the E-PL7 can be equipped with an optional viewfinder – the VF-4. The following table reports on some other key feature differences and similarities of the Olympus E-420, the Olympus E-PL7, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Olympus E-420	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
2.		Olympus E-PL7	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
3.		Nikon D40X	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
4.		Nikon D60	optical	n	2.5 / 230	fixed	n	1/4000s	3.0/s	Y	n
5.		Nikon D3000	optical	n	3.0 / 230	fixed	n	1/4000s	3.0/s	Y	n
6.		Olympus E-400	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
7.		Olympus E-410	optical	n	2.5 / 215	fixed	n	1/4000s	3.0/s	Y	n
8.		Olympus E-450	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	n
9.		Olympus E-520	optical	n	2.7 / 215	fixed	n	1/4000s	3.5/s	Y	Y
10.		Olympus E-600	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
11.		Olympus E-620	optical	n	2.7 / 230	swivel	n	1/4000s	4.0/s	Y	Y
12.		Olympus E-M10	1440	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	Y	Y
13.		Olympus E-M10 II	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	Y
14.		Olympus E-P5	optional	n	3.0 / 1037	tilting	Y	1/8000s	9.0/s	Y	Y
15.		Olympus E-PL6	optional	n	3.0 / 460	tilting	Y	1/4000s	8.0/s	n	Y
16.		Olympus E-PL8	optional	n	3.0 / 1037	tilting	Y	1/4000s	8.0/s	n	Y
17.		Panasonic L10	optical	n	2.5 / 207	swivel	n	1/4000s	3.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The E-420 has one, while the E-PL7 does not. While the built-in flash of the E-420 is not very powerful, it can at times be useful as a fill-in light.

The Olympus E-PL7 has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The E-420 writes its imaging data to Compact Flash or xD Picture cards, while the E-PL7 uses SDXC cards. The E-420 features dual card slots, which can be very useful in case a memory card fails. In contrast, the E-PL7 only has one slot.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Olympus E-420 and Olympus PEN E-PL7 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Olympus E-420	Y	- / -	-	-	-	2.0	-	-	-
2.		Olympus E-PL7	Y	stereo / mono	-	-	micro	2.0	Y	-	-
3.		Nikon D40X	Y	- / -	-	-	-	2.0	-	-	-
4.		Nikon D60	Y	- / -	-	-	-	2.0	-	-	-
5.		Nikon D3000	Y	- / -	-	-	-	2.0	-	-	-
6.		Olympus E-400	Y	- / -	-	-	-	2.0	-	-	-
7.		Olympus E-410	Y	- / -	-	-	-	2.0	-	-	-
8.		Olympus E-450	Y	- / -	-	-	-	2.0	-	-	-
9.		Olympus E-520	Y	- / -	-	-	-	2.0	-	-	-
10.		Olympus E-600	Y	- / -	-	-	-	2.0	-	-	-
11.		Olympus E-620	Y	- / -	-	-	-	2.0	-	-	-
12.		Olympus E-M10	Y	stereo / mono	-	-	micro	2.0	Y	-	-
13.		Olympus E-M10 II	Y	stereo / mono	-	-	micro	2.0	Y	-	-
14.		Olympus E-P5	Y	stereo / mono	-	-	micro	2.0	Y	-	-
15.		Olympus E-PL6	Y	stereo / mono	-	-	mini	2.0	-	-	-
16.		Olympus E-PL8	Y	stereo / mono	-	-	micro	2.0	Y	-	-
17.		Panasonic L10	Y	- / -	-	-	-	2.0	-	-	-

It is notable that the E-PL7 offers wifi support, which can be a very convenient means to transfer image data to an off-camera location. In contrast, the E-420 does not provide wifi capability.

Both the E-420 and the E-PL7 have been discontinued, but can regularly be found used on ebay. The E-PL7 was replaced by the Olympus E-PL8, while the E-420 does not have a direct successor. Further information on the features and operation of the E-420 and E-PL7 can be found, respectively, in the Olympus E-420 Manual (free pdf) or the online Olympus E-PL7 Manual.

Review summary

So what is the bottom line? Is the Olympus E-420 better than the Olympus E-PL7 or vice versa? The listing below highlights the relative strengths of the two models.

Reasons to prefer the Olympus E-420:

• Easier framing: Has an optical viewfinder for image composition and settings control.
• Longer lasting: Can take more shots (500 versus 350) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been available for much longer (launched in March 2008).

Arguments in favor of the Olympus PEN E-PL7:

• More detail: Has more megapixels (15.9 vs 10MP), which boosts linear resolution by 26%.
• Better image quality: Scores substantially higher (16 points) in the DXO overall evaluation.
• Richer colors: Generates noticeably more natural colors (1.2 bits more color depth).
• More dynamic range: Captures a broader range of light and dark details (2 EV of extra DR).
• Better low-light sensitivity: Can shoot in dim conditions (0.7 stops ISO advantage).
• Better jpgs: Has a more modern image processing engine (TruePic VII vs TruePic III).
• Broader imaging potential: Can capture not only stills but also 1080/30p video.
• Larger screen: Has a bigger rear LCD (3.0" vs 2.7") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (1037k vs 215k dots).
• More flexible LCD: Has a tilting screen for odd-angle shots in landscape orientation.
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster burst: Shoots at higher frequency (8 vs 3.5 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• More compact: Is smaller (115x67mm vs 130x91mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 83g or 19 percent) and is thus easier to take along.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• More modern: Reflects 6 years and 5 months of technical progress since the E-420 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the E-PL7 is the clear winner of the contest (20 : 5 points). However, the relevance of individual strengths will vary across photographers, so that you might want to apply your own weighing scheme to the summary points when reflecting and deciding on a new camera. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Olympus E-420 and the Olympus E-PL7 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it says little about, for example, the shooting experience and imaging performance of the E-420 and the E-PL7 in practical situations. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Olympus E-420	..	85/100	..	+ +	4/5	4.5/5	Mar 2008	US$ 599	ebay.com
2.		Olympus E-PL7	4/5	+	..	..	5/5	4/5	Aug 2014	US$ 599	ebay.com
3.		Nikon D40X	..	79/100	..	+ +	4/5	4/5	Mar 2007	US$ 729	ebay.com
4.		Nikon D60	..	80/100	..	+ +	4/5	4.5/5	Jan 2008	US$ 629	ebay.com
5.		Nikon D3000	..	+	..	72/100	4/5	4.5/5	Jul 2009	US$ 599	ebay.com
6.		Olympus E-400	..	85/100	..	..	4/5	4/5	Sep 2006	US$ 699	ebay.com
7.		Olympus E-410	..	86/100	..	+ +	4/5	4.5/5	Mar 2007	US$ 699	ebay.com
8.		Olympus E-450	..	..	..	..	4/5	4/5	Mar 2009	US$ 499	ebay.com
9.		Olympus E-520	..	87/100	..	+ +	4.5/5	4.5/5	May 2008	US$ 699	ebay.com
10.		Olympus E-600	..	..	..	..	..	4.5/5	Aug 2009	US$ 449	ebay.com
11.		Olympus E-620	3/5	88/100	..	72/100	4.5/5	5/5	Feb 2009	US$ 699	ebay.com
12.		Olympus E-M10	4/5	..	..	80/100	5/5	5/5	Jan 2014	US$ 699	ebay.com
13.		Olympus E-M10 II	4.5/5	+ +	..	80/100	5/5	5/5	Aug 2015	US$ 649	ebay.com
14.		Olympus E-P5	5/5	+ +	..	78/100	4.5/5	5/5	May 2013	US$ 999	ebay.com
15.		Olympus E-PL6	..	..	..	..	..	..	May 2013	US$ 599	ebay.com
16.		Olympus E-PL8	..	..	..	..	4.5/5	4/5	Sep 2016	US$ 549	ebay.com
17.		Panasonic L10	..	85/100	..	+	3.5/5	4/5	Aug 2007	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
