Panasonic GH5 vs GH5 II

The Panasonic Lumix DC-GH5 and the Panasonic Lumix DC-GH5 II are two enthusiast cameras that were announced, respectively, in January 2017 and May 2021. Both the GH5 and the GH5 II are mirrorless interchangeable lens cameras that are equipped with a Four Thirds sensor. Both cameras offer a resolution of 20.2 megapixels.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Panasonic GH5		Panasonic GH5 II
Mirrorless system camera		Mirrorless system camera
Micro Four Thirds lenses		Micro Four Thirds lenses
20.2 MP – Four Thirds sensor		20.2 MP – Four Thirds sensor
4K/60p Video		4K/60p Video
ISO 200-25,600		ISO 200-25,600
Electronic viewfinder (3680k dots)		Electronic viewfinder (3680k dots)
3.2" LCD – 1620k dots		3.0" LCD – 1840k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		12 shutter flaps per second
In-body stabilization		In-body stabilization
Weathersealed body		Weathersealed body
410 shots per battery charge		400 shots per battery charge
139 x 98 x 87 mm, 725 g		139 x 98 x 87 mm, 727 g

Check GH5 offers at
ebay.com
Check GH5 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Panasonic Lumix DC-GH5 and the Panasonic Lumix DC-GH5 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

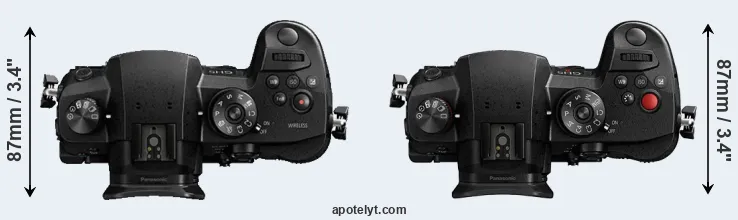

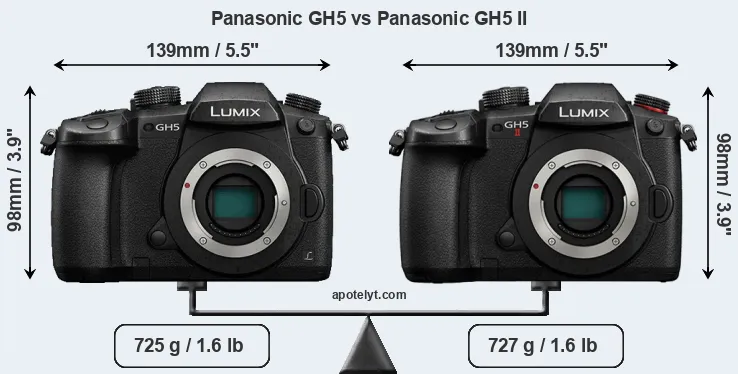

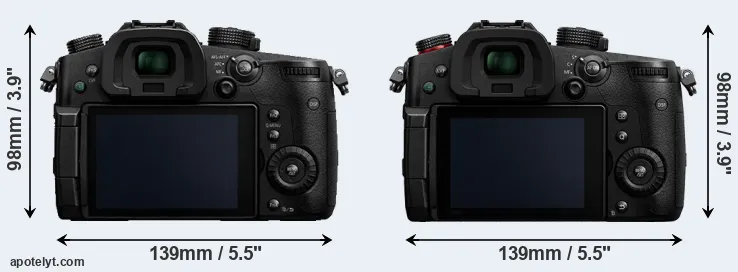

An illustration of the physical size and weight of the Panasonic GH5 and the Panasonic GH5 II is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

In this particular case, the Panasonic GH5 and the Panasonic GH5 II have exactly the same width and height, and, thus, have identically-sized bodies. However, the GH5 II is slightly heavier (0 percent) than the GH5. In this context, it is worth noting that both cameras are splash and dust-proof and can, hence, be used in inclement weather conditions or harsh environments.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. In this particular case, both cameras feature the same lens mount, so that they can use the same lenses. You can compare the optics available in the Micro Four Thirds Lens Catalog. Mirrorless cameras, such as the two under consideration, have the additional advantage of having a short flange to focal plane distance, which makes it possible to mount many lenses from other systems onto the camera via adapters.

Concerning battery life, the GH5 gets 410 shots out of its Panasonic DMW-BLF19 battery, while the GH5 II can take 400 images on a single charge of its Panasonic DMW-BLK22 power pack.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. If you want to switch the focus of the display and review another camera pair, you can move across to the CAM-parator tool and choose from the broad selection of possible camera comparisons there.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Panasonic GH5	139 mm	98 mm	87 mm	725 g	410	Y	Jan 2017	US$ 1 999	ebay.com
2.		Panasonic GH5 II	139 mm	98 mm	87 mm	727 g	400	Y	May 2021	US$ 1 699	amazon.com
3.		Olympus E-M1 II	134 mm	91 mm	67 mm	574 g	440	Y	Sep 2016	US$ 1 999	ebay.com
4.		Olympus E-M1 III	134 mm	91 mm	69 mm	580 g	420	Y	Feb 2020	US$ 1 799	ebay.com
5.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
6.		Panasonic G9	137 mm	97 mm	92 mm	658 g	400	Y	Nov 2017	US$ 1 699	ebay.com
7.		Panasonic G9 II	134 mm	102 mm	90 mm	658 g	390	Y	Sep 2023	US$ 1 899	amazon.com
8.		Panasonic G85	128 mm	89 mm	74 mm	505 g	330	Y	Sep 2016	US$ 899	ebay.com
9.		Panasonic GH4	133 mm	93 mm	84 mm	560 g	500	Y	Feb 2014	US$ 1 499	ebay.com
10.		Panasonic GH6	138 mm	100 mm	100 mm	823 g	360	Y	Feb 2022	US$ 2 199	amazon.com
11.		Panasonic GX8	133 mm	78 mm	63 mm	487 g	330	Y	Jul 2015	US$ 1 199	ebay.com
12.		Panasonic S5	133 mm	98 mm	82 mm	714 g	440	Y	Sep 2020	US$ 1 999	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The GH5 II was launched at a somewhat lower price (by 15 percent) than the GH5, which makes it more attractive for photographers on a tight budget. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

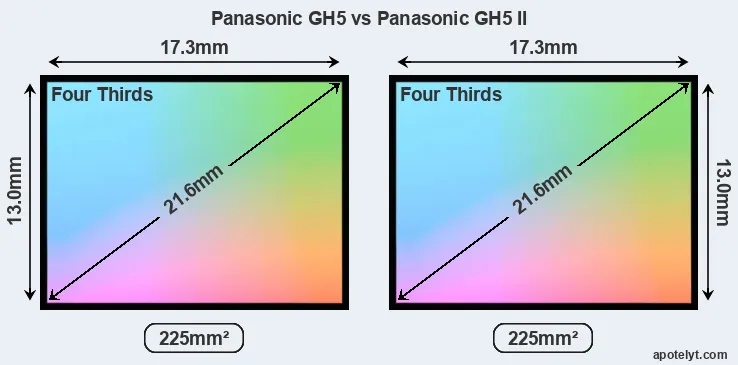

The size of the imaging sensor is a crucial determinant of image quality. A large sensor will tend to have larger individual pixels that provide better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixel-units in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature a Four Thirds sensor and have a format factor (sometimes also referred to as "crop factor") of 2.0. Within the spectrum of camera sensors, this places the review cameras among the medium-sized sensor cameras that aim to strike a balance between image quality and portability. Both cameras feature a native aspect ratio (sensor width to sensor height) of 4:3.

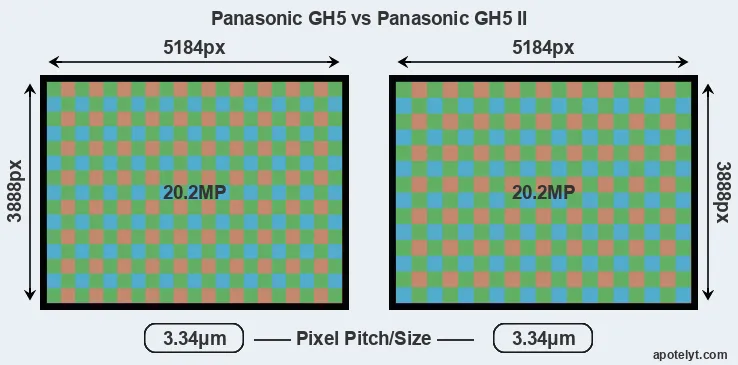

The two cameras under review do not only share the same sensor size, but also offer an identical resolution of 20.2 megapixels. This similarity in sensor specs implies that both the GH5 and the GH5 II have the same pixel density, as well as the same pixel size. It should, however, be noted that the GH5 II is much more recent (by 4 years and 4 months) than the GH5, and its sensor will have benefitted from technological advances during this time. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The Panasonic Lumix DC-GH5 has a native sensitivity range from ISO 200 to ISO 25600, which can be extended to ISO 100-25600. The Panasonic Lumix DC-GH5 II offers exactly the same ISO settings.

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The Overall DXO ratings for the two cameras under consideration are close, suggesting that they provide similar imaging performance. The table below summarizes the physical sensor characteristics and sensor quality findings and compares them across a set of similar cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Panasonic GH5	Four Thirds	20.2	5184	3888	4K/60p	23.9	13.0	807	77
2.		Panasonic GH5 II	Four Thirds	20.2	5184	3888	4K/60p	23.7	13.1	1136	79
3.		Olympus E-M1 II	Four Thirds	20.2	5184	3888	4K/30p	23.7	12.8	1312	80
4.		Olympus E-M1 III	Four Thirds	20.2	5184	3888	4K/30p	23.3	13.1	1356	76
5.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
6.		Panasonic G9	Four Thirds	20.2	5184	3888	4K/60p	23.1	12.8	1138	74
7.		Panasonic G9 II	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.5	1710	78
8.		Panasonic G85	Four Thirds	15.8	4592	3448	4K/30p	22.8	12.5	656	71
9.		Panasonic GH4	Four Thirds	15.9	4608	3456	4K/30p	23.2	12.8	791	74
10.		Panasonic GH6	Four Thirds	25.0	5776	4336	5.7K/60p	23.4	13.4	1555	77
11.		Panasonic GX8	Four Thirds	20.2	5184	3888	4K/30p	23.5	12.6	806	75
12.		Panasonic S5	Full Frame	24.0	6000	4000	4K/60p	25.1	14.5	2697	94
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. The GH5 and the GH5 II are similar in the sense that both feature an electronic viewfinder, which is helpful when framing images in bright sunlight. Moreover, their viewfinders offer an identical resolution of 3680k dots. The following table reports on some other key feature differences and similarities of the Panasonic GH5, the Panasonic GH5 II, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Panasonic GH5	3680	n	3.2 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
2.		Panasonic GH5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	12.0/s	n	Y
3.		Olympus E-M1 II	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
4.		Olympus E-M1 III	2360	n	3.0 / 1037	swivel	Y	1/8000s	18.0/s	n	Y
5.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
6.		Panasonic G9	3680	Y	3.0 / 1040	swivel	Y	1/8000s	20.0/s	n	Y
7.		Panasonic G9 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	10.0/s	n	Y
8.		Panasonic G85	2360	n	3.0 / 1040	swivel	Y	1/4000s	9.0/s	Y	Y
9.		Panasonic GH4	2359	n	3.0 / 1036	swivel	Y	1/8000s	12.0/s	Y	n
10.		Panasonic GH6	3680	n	3.0 / 1840	full-flex	Y	1/8000s	14.0/s	n	Y
11.		Panasonic GX8	2360	n	3.0 / 1040	swivel	Y	1/8000s	10.0/s	n	Y
12.		Panasonic S5	2360	n	3.0 / 1840	swivel	Y	1/8000s	7.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Panasonic GH5 and the Panasonic GH5 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the GH5 and the GH5 II write their files to SDXC cards. Both cameras feature dual card slots, which can be very useful in case a memory card fails. Moreover, both the GH5 and the GH5 II support UHS-II cards, which provide for Ultra High Speed data transfer of up to 312 MB/s, on both slots.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Panasonic Lumix DC-GH5 and Panasonic Lumix DC-GH5 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Panasonic GH5	Y	stereo / mono	Y	Y	full	3.1	Y	-	Y
2.		Panasonic GH5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
3.		Olympus E-M1 II	Y	stereo / mono	Y	Y	micro	3.0	Y	-	-
4.		Olympus E-M1 III	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
5.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
6.		Panasonic G9	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
7.		Panasonic G9 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
8.		Panasonic G85	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
9.		Panasonic GH4	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
10.		Panasonic GH6	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
11.		Panasonic GX8	Y	stereo / mono	Y	-	micro	2.0	Y	Y	-
12.		Panasonic S5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The GH5 II is a recent model that features in the current product line-up of Panasonic. In contrast, the GH5 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the GH5 was succeeded by the Panasonic GH5 II. Further information on the features and operation of the GH5 and GH5 II can be found, respectively, in the Panasonic GH5 Manual (free pdf) or the online Panasonic GH5 II Manual.

Review summary

So how do things add up? Which of the two cameras – the Panasonic GH5 or the Panasonic GH5 II – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Panasonic Lumix DC-GH5:

• Larger screen: Has a bigger rear LCD (3.2" vs 3.0") for image review and settings control.
• More heavily discounted: Has been available for much longer (launched in January 2017).

Reasons to prefer the Panasonic Lumix DC-GH5 II:

• Better low-light sensitivity: Can shoot in dim conditions (0.5 stops ISO advantage).
• More detailed LCD: Has a higher resolution rear screen (1840k vs 1620k dots).
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 3.1).
• More affordable: Was released into a lower priced segment (15 percent cheaper at launch).
• More modern: Reflects 4 years and 4 months of technical progress since the GH5 launch.

If the count of relative strengths (bullet points above) is taken as a measure, the GH5 II emerges as the winner of the match-up (5 : 2 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Panasonic GH5 and the Panasonic GH5 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the GH5 or the GH5 II perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Panasonic GH5	4.5/5	+ +	..	85/100	4.5/5	5/5	Jan 2017	US$ 1 999	ebay.com
2.		Panasonic GH5 II	4.5/5	..	4.5/5	85/100	4.5/5	5/5	May 2021	US$ 1 699	amazon.com
3.		Olympus E-M1 II	5/5	+ +	5/5	85/100	4.5/5	4.5/5	Sep 2016	US$ 1 999	ebay.com
4.		Olympus E-M1 III	5/5	..	5/5	83/100	4.5/5	4/5	Feb 2020	US$ 1 799	ebay.com
5.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
6.		Panasonic G9	..	+ +	5/5	85/100	5/5	5/5	Nov 2017	US$ 1 699	ebay.com
7.		Panasonic G9 II	5/5	..	4.5/5	87/100	..	4.5/5	Sep 2023	US$ 1 899	amazon.com
8.		Panasonic G85	..	+ +	..	84/100	5/5	4.5/5	Sep 2016	US$ 899	ebay.com
9.		Panasonic GH4	5/5	+ +	..	85/100	5/5	5/5	Feb 2014	US$ 1 499	ebay.com
10.		Panasonic GH6	5/5	+ +	5/5	87/100	5/5	5/5	Feb 2022	US$ 2 199	amazon.com
11.		Panasonic GX8	5/5	+	..	82/100	4.5/5	4.5/5	Jul 2015	US$ 1 199	ebay.com
12.		Panasonic S5	4.5/5	+ +	4.5/5	88/100	4.5/5	4.5/5	Sep 2020	US$ 1 999	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The above review scores should be interpreted with care, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
