Pentax K-S2 vs Samsung NX500

The Pentax K-S2 and the Samsung NX500 are two digital cameras that were officially introduced in February 2015. The K-S2 is a DSLR, while the NX500 is a mirrorless interchangeable lens camera. Both cameras are equipped with an APS-C sensor. The Pentax has a resolution of 20 megapixels, whereas the Samsung provides 28 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Pentax K-S2		Samsung NX500
Digital single lens reflex		Mirrorless system camera
Pentax K mount lenses		Samsung NX mount lenses
20 MP – APS-C sensor		28 MP – APS-C sensor
1080/30p Video		4K/30p Video
ISO 100-51,200		ISO 100-25,600 (100 - 51,200)
Optical viewfinder		No viewfinder, LCD framing
3.0" LCD – 921k dots		3.0" LCD – 1036k dots
Swivel screen (not touch-sensitive)		Tilting touchscreen
5.4 shutter flaps per second		9 shutter flaps per second
In-body stabilization		Lens stabilization only
Weathersealed body		not weather sealed
410 shots per battery charge		370 shots per battery charge
123 x 91 x 73 mm, 678 g		120 x 64 x 43 mm, 287 g

Check K-S2 offers at
ebay.com
Check NX500 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Pentax K-S2 and the Samsung NX500? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

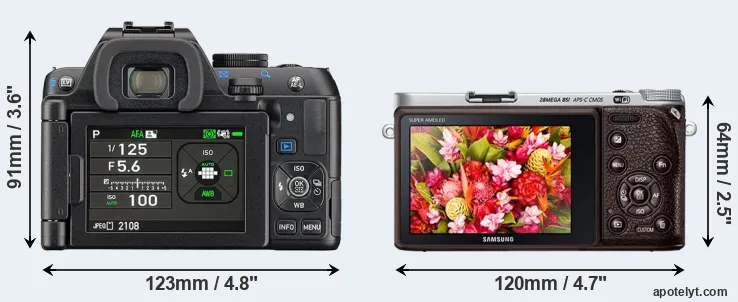

Body comparison

The physical size and weight of the Pentax K-S2 and the Samsung NX500 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All size dimensions are rounded to the nearest millimeter.

The K-S2 can be obtained in six different colors (black, grey, pink, orange, green, white), while the NX500 is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Samsung NX500 is considerably smaller (31 percent) than the Pentax K-S2. Moreover, the NX500 is substantially lighter (58 percent) than the K-S2. It is worth mentioning in this context that the K-S2 is splash and dust resistant, while the NX500 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the NX500 can be charged via the USB port, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Pentax K-S2	123 mm	91 mm	73 mm	678 g	410	Y	Feb 2015	US$ 749	ebay.com
2.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
3.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
4.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
5.		Pentax K-3	131 mm	100 mm	77 mm	800 g	560	Y	Oct 2013	US$ 1 299	ebay.com
6.		Pentax K-3 II	131 mm	100 mm	77 mm	800 g	720	Y	Apr 2015	US$ 1 099	ebay.com
7.		Pentax K-5	131 mm	97 mm	73 mm	760 g	740	Y	Sep 2010	US$ 1 099	ebay.com
8.		Pentax K-30	130 mm	97 mm	71 mm	650 g	410	Y	May 2012	US$ 849	ebay.com
9.		Pentax K-50	130 mm	97 mm	71 mm	650 g	410	Y	Jun 2013	US$ 599	ebay.com
10.		Pentax K-70	126 mm	93 mm	74 mm	688 g	410	Y	Jun 2016	US$ 649	ebay.com
11.		Pentax KP	132 mm	101 mm	76 mm	703 g	390	Y	Jan 2017	US$ 1 099	ebay.com
12.		Pentax K-S1	121 mm	93 mm	70 mm	558 g	410	n	Aug 2014	US$ 749	ebay.com
13.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
14.		Sony A68	143 mm	104 mm	81 mm	610 g	540	n	Nov 2015	US$ 699	ebay.com
15.		Sony A77 II	143 mm	104 mm	81 mm	647 g	480	Y	May 2014	US$ 1 199	ebay.com
16.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
17.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The K-S2 was somewhat cheaper (by 6 percent) than the NX500 at launch, but both cameras fall into the same price category. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

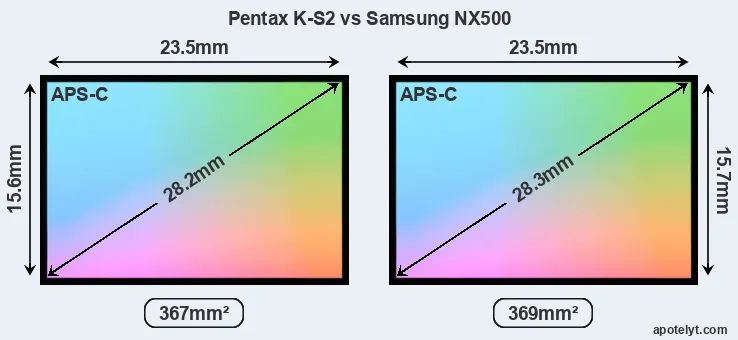

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Furthermore, a large sensor camera will give the photographer more possibilities to use shallow depth-of-field in order to isolate a subject from the background. On the downside, larger sensors are more costly to manufacture and tend to lead to bigger and heavier cameras and lenses.

Both cameras under consideration feature an APS-C sensor, but their sensors differ slightly in size. The sensor area in the NX500 is 1 percent bigger. They nevertheless have the same format factor of 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 28MP, the NX500 offers a higher resolution than the K-S2 (20MP), but the NX500 has smaller individual pixels (pixel pitch of 3.63μm versus 4.28μm for the K-S2). It is noteworthy in this context that the two cameras were released in close succession, so that their sensors are from the same technological generation. Coming back to sensor resolution, it should be mentioned that neither of the two cameras has an anti-alias filter installed, so they are able to capture all the detail the sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Pentax K-S2 are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The NX500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Pentax K-S2 has a native sensitivity range from ISO 100 to ISO 51200. The corresponding ISO settings for the Samsung NX500 are ISO 100 to ISO 25600, with the possibility to increase the ISO range to 100-51200.

In terms of underlying technology, the K-S2 is build around a CMOS sensor, while the NX500 uses a BSI-CMOS imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Pentax K-S2	APS-C	20.0	5472	3648	1080/30p	23.6	12.9	1514	79
2.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
3.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
4.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
5.		Pentax K-3	APS-C	24.1	6016	4000	1080/60i	23.7	13.4	1216	80
6.		Pentax K-3 II	APS-C	24.1	6016	4000	1080/60i	23.6	13.6	1106	80
7.		Pentax K-5	APS-C	16.1	4928	3264	1080/25p	23.7	14.1	1162	82
8.		Pentax K-30	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1129	79
9.		Pentax K-50	APS-C	16.1	4928	3264	1080/30p	23.7	13.0	1120	79
10.		Pentax K-70	APS-C	24.0	6000	4000	1080/60i	23.8	13.1	1639	80
11.		Pentax KP	APS-C	24.1	6016	4000	1080/60i	23.9	13.2	1699	81
12.		Pentax K-S1	APS-C	20.0	5472	3648	1080/30p	23.5	13.0	1061	78
13.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
14.		Sony A68	APS-C	24.0	6000	4000	1080/60i	24.1	13.5	701	79
15.		Sony A77 II	APS-C	24.0	6000	4000	1080/60p	24.4	13.4	1013	82
16.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
17.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, but the NX500 provides a better video resolution than the K-S2. It can shoot movie footage at 4K/30p, while the Pentax is limited to 1080/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the K-S2 has an optical viewfinder, which can be very useful when shooting in bright sunlight. In contrast, the NX500 relies on live view and the rear LCD for framing. The adjacent table lists some of the other core features of the Pentax K-S2 and Samsung NX500 along with similar information for a selection of comparators.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Pentax K-S2	optical	n	3.0 / 921	swivel	n	1/6000s	5.4/s	Y	Y
2.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
3.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
4.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
5.		Pentax K-3	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	Y	Y
6.		Pentax K-3 II	optical	Y	3.2 / 1037	fixed	n	1/8000s	8.3/s	n	Y
7.		Pentax K-5	optical	Y	3.0 / 921	fixed	n	1/8000s	7.0/s	Y	Y
8.		Pentax K-30	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
9.		Pentax K-50	optical	n	3.0 / 921	fixed	n	1/6000s	6.0/s	Y	Y
10.		Pentax K-70	optical	n	3.0 / 921	swivel	n	1/6000s	6.0/s	Y	Y
11.		Pentax KP	optical	n	3.0 / 921	tilting	n	1/6000s	7.0/s	Y	Y
12.		Pentax K-S1	optical	n	3.0 / 921	fixed	n	1/6000s	5.4/s	Y	Y
13.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
14.		Sony A68	1440	Y	2.7 / 460	tilting	n	1/4000s	8.0/s	Y	Y
15.		Sony A77 II	2359	Y	3.0 / 1229	full-flex	n	1/8000s	12.0/s	Y	Y
16.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
17.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the K-S2 and the NX500 is in-body image stabilization (IBIS). The K-S2 reduces the risk of handshake-induced blur with all attached lenses, while the NX500 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The Pentax K-S2 and the Samsung NX500 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the K-S2 and the NX500 write their files to SDXC cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Pentax K-S2 and Samsung NX500 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Pentax K-S2	Y	mono / mono	Y	-	micro	2.0	Y	Y	-
2.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
3.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
4.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
5.		Pentax K-3	Y	mono / mono	Y	Y	mini	3.0	-	-	-
6.		Pentax K-3 II	Y	mono / mono	Y	Y	mini	3.0	-	-	-
7.		Pentax K-5	Y	stereo / mono	Y	-	mini	2.0	-	-	-
8.		Pentax K-30	Y	mono / mono	-	-	-	2.0	-	-	-
9.		Pentax K-50	Y	mono / mono	-	-	micro	2.0	-	-	-
10.		Pentax K-70	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
11.		Pentax KP	Y	stereo / mono	Y	-	-	2.0	Y	-	-
12.		Pentax K-S1	Y	stereo / mono	-	-	micro	2.0	-	-	-
13.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony A68	Y	stereo / mono	Y	-	micro	2.0	-	-	-
15.		Sony A77 II	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
16.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-

It is notable that the K-S2 has a microphone port, which is missing on the NX500. Such an external microphone input can help to substantially improve the quality of audio recordings when a good external microphone is used.

Both the K-S2 and the NX500 have been discontinued, but can regularly be found used on ebay. Neither of the two has a direct successor, so they represent the end of the respective camera lines from Pentax and Samsung. Further information on the features and operation of the K-S2 and NX500 can be found, respectively, in the Pentax K-S2 Manual (free pdf) or the online Samsung NX500 Manual.

Review summary

So how do things add up? Which of the two cameras – the Pentax K-S2 or the Samsung NX500 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Advantages of the Pentax K-S2:

• Better sound: Can connect to an external microphone for higher quality sound recording.
• Easier framing: Has an optical viewfinder for image composition and settings control.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Longer lasting: Can take more shots (410 versus 370) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.

Arguments in favor of the Samsung NX500:

• More detail: Has more megapixels (28 vs 20MP), which boosts linear resolution by 18%.
• Better video: Provides higher definition movie capture (4K/30p vs 1080/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 921k dots).
• Fewer buttons to press: Has a touchscreen to facilitate handling and shooting adjustments.
• Faster burst: Shoots at higher frequency (9 vs 5.4 flaps/sec) to capture the decisive moment.
• More compact: Is smaller (120x64mm vs 123x91mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 391g or 58 percent) and is thus easier to take along.
• Easier travel charging: Can be conveniently charged via its USB port.
• More legacy lens friendly: Can use many non-native lenses via adapters.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.

If the count of individual advantages (bullet points above) is taken as a guide, the NX500 is the clear winner of the contest (11 : 6 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Pentax K-S2 and the Samsung NX500 place the cameras among the top in their class? Find out in the latest Best DSLR Camera and Best Mirrorless Interchangeable Lens Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the K-S2 or the NX500 perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Pentax K-S2	4.5/5	..	..	..	5/5	4.5/5	Feb 2015	US$ 749	ebay.com
2.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
3.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
4.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
5.		Pentax K-3	4/5	..	..	83/100	5/5	5/5	Oct 2013	US$ 1 299	ebay.com
6.		Pentax K-3 II	4.5/5	..	..	..	5/5	5/5	Apr 2015	US$ 1 099	ebay.com
7.		Pentax K-5	4/5	..	..	83/100	5/5	4.5/5	Sep 2010	US$ 1 099	ebay.com
8.		Pentax K-30	4/5	..	..	78/100	4.5/5	4.5/5	May 2012	US$ 849	ebay.com
9.		Pentax K-50	5/5	..	..	..	5/5	4.5/5	Jun 2013	US$ 599	ebay.com
10.		Pentax K-70	4.5/5	..	4/5	79/100	4.5/5	4.5/5	Jun 2016	US$ 649	ebay.com
11.		Pentax KP	4/5	..	3/5	82/100	5/5	4.5/5	Jan 2017	US$ 1 099	ebay.com
12.		Pentax K-S1	4/5	..	..	..	4.5/5	4/5	Aug 2014	US$ 749	ebay.com
13.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
14.		Sony A68	3/5	..	..	..	4/5	4/5	Nov 2015	US$ 699	ebay.com
15.		Sony A77 II	4/5	..	..	80/100	4.5/5	5/5	May 2014	US$ 1 199	ebay.com
16.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
17.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. Also, kindly note that some of the listed sites have over time developped their review approaches and their reporting style.
