Samsung NX500 vs Sony ZV-1 II

The Samsung NX500 and the Sony Cyber-shot ZV-1 II are two digital cameras that were announced, respectively, in February 2015 and May 2023. The NX500 is a mirrorless interchangeable lens camera, while the ZV-1 II is a fixed lens compact. The cameras are based on an APS-C (NX500) and an one-inch (ZV-1 II) sensor. The Samsung has a resolution of 28 megapixels, whereas the Sony provides 20 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Samsung NX500		Sony ZV-1 II
Mirrorless system camera		Fixed lens compact camera
Samsung NX mount lenses		18-50mm f/1.8-4.0
28 MP – APS-C sensor		20 MP – 1" sensor
4K/30p Video		4K/30p Video
ISO 100-25,600 (100 - 51,200)		ISO 125-12,800 (80 - 25,600)
No viewfinder, LCD framing		No viewfinder, LCD framing
3.0" LCD – 1036k dots		3.0" LCD – 922k dots
Tilting touchscreen		Swivel touchscreen
9 shutter flaps per second		24 shutter flaps per second
370 shots per battery charge		290 shots per battery charge
120 x 64 x 43 mm, 287 g		106 x 60 x 47 mm, 292 g

Check NX500 offers at
ebay.com
Check ZV-1 II price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Samsung NX500 and the Sony Cyber-shot ZV-1 II? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The side-by-side display below illustrates the physical size and weight of the Samsung NX500 and the Sony ZV-1 II. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Sony ZV-1 II is notably smaller (17 percent) than the Samsung NX500. In this context, it is worth noting that neither the NX500 nor the ZV-1 II are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the ZV-1 II has a lens built in, whereas the NX500 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The table below summarizes the key physical specs of the two cameras alongside a broader set of comparators. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Samsung NX500	120 mm	64 mm	43 mm	287 g	370	n	Feb 2015	US$ 799	ebay.com
2.		Sony ZV-1 II	106 mm	60 mm	47 mm	292 g	290	n	May 2023	US$ 899	amazon.com
3.		Canon M3	111 mm	68 mm	44 mm	366 g	250	n	Feb 2015	US$ 679	ebay.com
4.		Fujifilm X-A3	117 mm	67 mm	40 mm	339 g	410	n	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X70	113 mm	64 mm	44 mm	340 g	330	n	Jan 2016	US$ 799	ebay.com
6.		Nikon D5500	124 mm	97 mm	70 mm	470 g	820	n	Jan 2015	US$ 899	ebay.com
7.		Nikon D5600	124 mm	97 mm	70 mm	465 g	970	n	Nov 2016	US$ 699	ebay.com
8.		Ricoh GR II	117 mm	63 mm	35 mm	251 g	320	n	Jun 2015	US$ 699	ebay.com
9.		Samsung NX1	139 mm	102 mm	66 mm	550 g	500	Y	Sep 2014	US$ 1 499	ebay.com
10.		Samsung NX30	127 mm	96 mm	58 mm	375 g	360	n	Jan 2014	US$ 999	ebay.com
11.		Sony A5100	110 mm	63 mm	36 mm	283 g	400	n	Aug 2014	US$ 549	ebay.com
12.		Sony A6000	120 mm	67 mm	45 mm	344 g	360	n	Feb 2014	US$ 599	ebay.com
13.		Sony RX100 II	102 mm	58 mm	38 mm	281 g	350	n	Jun 2013	US$ 749	ebay.com
14.		Sony RX100 III	102 mm	58 mm	41 mm	290 g	320	n	May 2014	US$ 799	ebay.com
15.		Sony RX100 IV	102 mm	58 mm	41 mm	298 g	280	n	Jun 2015	US$ 999	ebay.com
16.		Sony RX100 V	102 mm	58 mm	41 mm	299 g	220	n	Oct 2016	US$ 999	ebay.com
17.		Sony ZV-1	105 mm	60 mm	44 mm	294 g	260	n	May 2020	US$ 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will obviously take relative prices into account. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

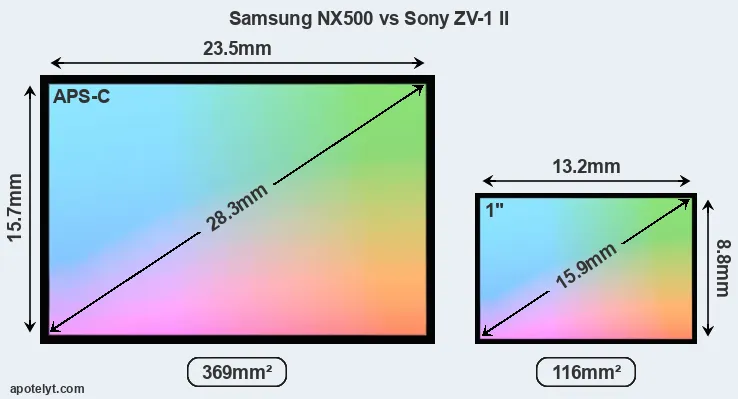

Sensor comparison

The size of the imaging sensor is a crucial determinant of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

Of the two cameras under consideration, the Samsung NX500 features an APS-C sensor and the Sony ZV-1 II an one-inch sensor. The sensor area in the ZV-1 II is 69 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.5 and 2.7. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

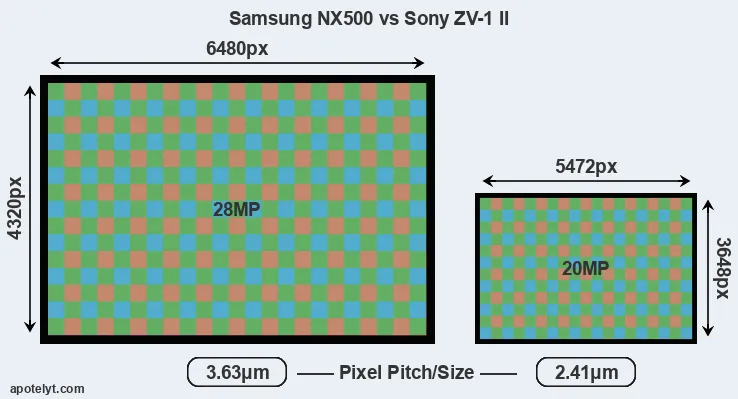

With 28MP, the NX500 offers a higher resolution than the ZV-1 II (20MP), but the NX500 nevertheless has larger individual pixels (pixel pitch of 3.63μm versus 2.41μm for the ZV-1 II) due to its larger sensor. However, the ZV-1 II is a much more recent model (by 8 years and 3 months) than the NX500, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels. Coming back to sensor resolution, it should be mentioned that the NX500 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The resolution advantage of the Samsung NX500 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the NX500 for good quality output (200 dots per inch) amounts to 32.4 x 21.6 inches or 82.3 x 54.9 cm, for very good quality (250 dpi) 25.9 x 17.3 inches or 65.8 x 43.9 cm, and for excellent quality (300 dpi) 21.6 x 14.4 inches or 54.9 x 36.6 cm. The corresponding values for the Sony ZV-1 II are 27.4 x 18.2 inches or 69.5 x 46.3 cm for good quality, 21.9 x 14.6 inches or 55.6 x 37.1 cm for very good quality, and 18.2 x 12.2 inches or 46.3 x 30.9 cm for excellent quality prints.

The NX500 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Samsung NX500 has a native sensitivity range from ISO 100 to ISO 25600, which can be extended to ISO 100-51200. The corresponding ISO settings for the Sony Cyber-shot ZV-1 II are ISO 125 to ISO 12800, with the possibility to increase the ISO range to 80-25600.

Technology-wise, both cameras are equipped with BSI-CMOS (Backside Illuminated Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Consistent information on actual sensor performance is available from DXO Mark for many cameras. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Samsung NX500	APS-C	28.0	6480	4320	4K/30p	24.8	13.9	1379	87
2.		Sony ZV-1 II	1-inch	20.0	5472	3648	4K/30p	22.3	12.9	965	67
3.		Canon M3	APS-C	24.0	6000	4000	1080/30p	22.8	11.8	1169	72
4.		Fujifilm X-A3	APS-C	24.0	6000	4000	1080/60p	23.8	13.1	1663	81
5.		Fujifilm X70	APS-C	16.0	4896	3264	1080/60p	23.7	13.0	1608	80
6.		Nikon D5500	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1438	84
7.		Nikon D5600	APS-C	24.0	6000	4000	1080/60p	24.1	14.0	1306	84
8.		Ricoh GR II	APS-C	16.1	4928	3264	1080/30p	23.6	13.7	1078	80
9.		Samsung NX1	APS-C	28.0	6480	4320	4K/30p	24.2	13.2	1363	83
10.		Samsung NX30	APS-C	20.0	5472	3648	1080/60p	23.5	12.4	1014	76
11.		Sony A5100	APS-C	24.0	6000	4000	1080/60p	23.8	12.7	1347	80
12.		Sony A6000	APS-C	24.0	6000	4000	1080/60p	24.1	13.1	1347	82
13.		Sony RX100 II	1-inch	20.0	5472	3648	1080/60p	22.5	12.4	483	67
14.		Sony RX100 III	1-inch	20.0	5472	3648	1080/60p	22.4	12.3	495	67
15.		Sony RX100 IV	1-inch	20.0	5472	3648	4K/30p	22.8	12.6	591	70
16.		Sony RX100 V	1-inch	20.0	5472	3648	4K/30p	22.8	12.4	586	70
17.		Sony ZV-1	1-inch	20.0	5472	3648	4K/30p	22.2	12.6	669	66
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration have a sensor with sufficiently fast read-out times for moving pictures, and both provide the same movie specifications (4K/30p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a variety of features. The NX500 and the ZV-1 II are similar in the sense that neither of the two has a viewfinder. The images are, thus, framed using live view on the rear LCD. The following table reports on some other key feature differences and similarities of the Samsung NX500, the Sony ZV-1 II, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Samsung NX500	none	n	3.0 / 1036	tilting	Y	1/6000s	9.0/s	Y	n
2.		Sony ZV-1 II	none	n	3.0 / 922	swivel	Y	1/2000s	24.0/s	n	n
3.		Canon M3	optional	n	3.0 / 1040	tilting	Y	1/4000s	4.2/s	Y	n
4.		Fujifilm X-A3	none	n	3.0 / 1040	tilting	Y	1/4000s	6.0/s	Y	n
5.		Fujifilm X70	optional	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
6.		Nikon D5500	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
7.		Nikon D5600	optical	n	3.2 / 1037	swivel	Y	1/4000s	5.0/s	Y	n
8.		Ricoh GR II	optional	n	3.0 / 1230	fixed	n	1/4000s	4.0/s	Y	n
9.		Samsung NX1	2360	Y	3.0 / 1036	tilting	Y	1/8000s	15.0/s	Y	n
10.		Samsung NX30	2359	n	3.0 / 1036	swivel	Y	1/8000s	9.0/s	Y	n
11.		Sony A5100	none	n	3.0 / 922	tilting	Y	1/4000s	6.0/s	Y	n
12.		Sony A6000	1440	n	3.0 / 922	tilting	n	1/4000s	11.0/s	Y	n
13.		Sony RX100 II	optional	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
14.		Sony RX100 III	1440	n	3.0 / 1229	tilting	n	1/2000s	10.0/s	Y	Y
15.		Sony RX100 IV	2359	n	3.0 / 1228	tilting	n	1/2000s	16.0/s	Y	Y
16.		Sony RX100 V	2359	n	3.0 / 1229	tilting	n	1/2000s	24.0/s	Y	Y
17.		Sony ZV-1	none	n	3.0 / 922	swivel	Y	1/2000s	24.0/s	n	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One difference between the cameras concerns the presence of an on-board flash. The NX500 has one, while the ZV-1 II does not. While the built-in flash of the NX500 is not very powerful, it can at times be useful as a fill-in light.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the ZV-1 II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Samsung NX500 and the Sony ZV-1 II both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The NX500 writes its imaging data to SDXC cards, while the ZV-1 II uses SDXC or Memory Stick PRO Duo cards. Both cameras can use UHS-I cards, which provide for Ultra High Speed data transfer of up to 104 MB/s.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Samsung NX500 and Sony Cyber-shot ZV-1 II and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Samsung NX500	Y	stereo / mono	-	-	micro	2.0	Y	Y	Y
2.		Sony ZV-1 II	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
3.		Canon M3	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
4.		Fujifilm X-A3	Y	stereo / mono	-	-	micro	2.0	Y	-	-
5.		Fujifilm X70	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
6.		Nikon D5500	Y	stereo / mono	Y	-	mini	2.0	Y	-	-
7.		Nikon D5600	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
8.		Ricoh GR II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
9.		Samsung NX1	Y	stereo / mono	Y	Y	micro	3.0	Y	Y	Y
10.		Samsung NX30	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
11.		Sony A5100	-	stereo / mono	-	-	micro	2.0	Y	Y	-
12.		Sony A6000	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
13.		Sony RX100 II	Y	stereo / mono	-	-	micro	2.0	Y	Y	-
14.		Sony RX100 III	-	stereo / mono	-	-	micro	2.0	Y	Y	-
15.		Sony RX100 IV	-	stereo / mono	-	-	micro	2.0	Y	Y	-
16.		Sony RX100 V	-	stereo / mono	-	-	micro	2.0	Y	Y	-
17.		Sony ZV-1	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y

It is notable that the ZV-1 II has a microphone port, which can help to improve the quality of audio recordings by attaching an external microphone. The NX500 does not feature such a mic input.

The ZV-1 II is a recent model that features in the current product line-up of Sony. In contrast, the NX500 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the NX500 from Samsung. Further information on the features and operation of the NX500 and ZV-1 II can be found, respectively, in the Samsung NX500 Manual (free pdf) or the online Sony ZV-1 II Manual.

Review summary

So what is the bottom line? Is the Samsung NX500 better than the Sony ZV-1 II or vice versa? Below is a summary of the relative strengths of each of the two contestants.

Arguments in favor of the Samsung NX500:

• More detail: Offers more megapixels (28 vs 20MP) with a 18% higher linear resolution.
• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More detailed LCD: Has a higher resolution rear screen (1036k vs 922k dots).
• Faster shutter: Has higher mechanical shutter speed (1/6000s vs 1/2000s) to freeze action.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Longer lasting: Can take more shots (370 versus 290) on a single battery charge.
• Easier fill-in: Is equipped with a small onboard flash to brighten deep shadow areas.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• More heavily discounted: Has been available for much longer (launched in February 2015).

Reasons to prefer the Sony Cyber-shot ZV-1 II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better sound: Can connect to an external microphone for higher quality sound recording.
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Faster burst: Shoots at higher frequency (24 vs 9 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Ready to shoot: Has an integrated lens, whereas the NX500 necessitates an extra lens.
• More compact: Is smaller (106x60mm vs 120x64mm) and will fit more readily into a bag.
• More modern: Reflects 8 years and 3 months of technical progress since the NX500 launch.

If the number of relative strengths (bullet points above) is taken as a guide, the NX500 emerges as the winner of the contest (10 : 8 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Samsung NX500 and the Sony ZV-1 II place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Travel-Zoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the specs-based evaluation of cameras can be instructive in revealing their potential as photographic tools, it remains incomplete and does no justice, for example, to the way the NX500 or the ZV-1 II perform in practice. At times, user reviews, such as those published at amazon, address these issues in a useful manner, but such feedback is on many occasions incomplete, inconsistent, and unreliable.

Expert reviews

This is why expert reviews are important. The adjacent summary-table relays the overall verdicts of several of the most popular camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Samsung NX500	4.5/5	..	..	81/100	5/5	4.5/5	Feb 2015	US$ 799	ebay.com
2.		Sony ZV-1 II	4.5/5	..	3.5/5	83/100	3.5/5	4.5/5	May 2023	US$ 899	amazon.com
3.		Canon M3	4/5	o	..	75/100	4.5/5	4/5	Feb 2015	US$ 679	ebay.com
4.		Fujifilm X-A3	..	..	..	74/100	4.5/5	4/5	Aug 2016	US$ 399	ebay.com
5.		Fujifilm X70	4.5/5	..	..	76/100	4.5/5	4.5/5	Jan 2016	US$ 799	ebay.com
6.		Nikon D5500	5/5	+	..	79/100	4.5/5	4.5/5	Jan 2015	US$ 899	ebay.com
7.		Nikon D5600	4/5	..	4/5	79/100	4.5/5	4/5	Nov 2016	US$ 699	ebay.com
8.		Ricoh GR II	..	..	..	..	4.5/5	4.5/5	Jun 2015	US$ 699	ebay.com
9.		Samsung NX1	5/5	..	..	87/100	5/5	5/5	Sep 2014	US$ 1 499	ebay.com
10.		Samsung NX30	3/5	..	..	77/100	4.5/5	4.5/5	Jan 2014	US$ 999	ebay.com
11.		Sony A5100	4.5/5	+	..	..	4.5/5	5/5	Aug 2014	US$ 549	ebay.com
12.		Sony A6000	5/5	+	4.5/5	80/100	4.5/5	5/5	Feb 2014	US$ 599	ebay.com
13.		Sony RX100 II	5/5	+ +	..	79/100	4.5/5	4.5/5	Jun 2013	US$ 749	ebay.com
14.		Sony RX100 III	5/5	+ +	..	82/100	4.5/5	5/5	May 2014	US$ 799	ebay.com
15.		Sony RX100 IV	4.5/5	+ +	..	85/100	4/5	4.5/5	Jun 2015	US$ 999	ebay.com
16.		Sony RX100 V	4.5/5	+ +	..	83/100	4/5	4.5/5	Oct 2016	US$ 999	ebay.com
17.		Sony ZV-1	4/5	+	4/5	85/100	4/5	4.5/5	May 2020	US$ 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and rating-comparisons among cameras that span long time periods or concern very differently equipped models make little sense. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
