Canon R5 Mark II vs Epson R-D1

The Canon EOS R5 Mark II and the Epson R-D1 are two enthusiast cameras that were officially introduced, respectively, in July 2024 and March 2004. The R5 Mark II is a mirrorless interchangeable lens camera, while the R-D1 is a rangefinder-focusing mirrorless. The cameras are based on a full frame (R5 Mark II) and an APS-C (R-D1) sensor. The Canon has a resolution of 44.8 megapixels, whereas the Epson provides 6 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R5 Mark II		Epson R-D1
Mirrorless system camera		Rangefinder camera
Canon RF mount lenses		Leica M mount lenses
44.8 MP – Full Frame sensor		6 MP – APS-C sensor
8k/60p Video		no Video
ISO 100-51,200 (50 - 102,400)		ISO 200-1,600
Electronic viewfinder (5760k dots)		Optical viewfinder
3.2" LCD – 2100k dots		2.0" LCD – 235k dots
Swivel touchscreen		Fixed screen (not touch-sensitive)
12 shutter flaps per second		1 shutter flaps per second
In-body stabilization		no shake reduction
Weathersealed body		not weather sealed
138 x 98 x 88 mm, 746 g		142 x 89 x 40 mm, 620 g

Check R5 Mark II price at
amazon.com
Check R-D1 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R5 Mark II and the Epson R-D1? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

The physical size and weight of the Canon R5 Mark II and the Epson R-D1 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive views from the front, the top, and the rear side are shown. All width, height and depth measures are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Epson R-D1 is notably smaller (7 percent) than the Canon R5 Mark II. Moreover, the R-D1 is markedly lighter (17 percent) than the R5 Mark II. It is worth mentioning in this context that the R5 Mark II is splash and dust resistant, while the R-D1 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

The power pack in the R5 Mark II can be charged via the USB port, so that it is not always necessary to take the battery charger along when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	138 mm	98 mm	88 mm	746 g	340	Y	Jul 2024	US$ 4 299	amazon.com
2.		Epson R-D1	142 mm	89 mm	40 mm	620 g	..	n	Mar 2004	US$ 2 999	ebay.com
3.		Canon R1	158 mm	150 mm	87 mm	1115 g	1330	Y	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
8.		Canon Rebel	142 mm	99 mm	72 mm	649 g	400	n	Aug 2003	US$ 899	ebay.com
9.		Leica X Vario	133 mm	73 mm	95 mm	680 g	450	n	Jun 2013	US$ 2 849	ebay.com
10.		Nikon D50	133 mm	102 mm	76 mm	620 g	400	n	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	140 mm	111 mm	78 mm	679 g	400	n	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	140 mm	111 mm	78 mm	679 g	500	n	Apr 2005	US$ 899	ebay.com
13.		Nikon Z8	144 mm	119 mm	83 mm	910 g	340	Y	May 2023	US$ 3 999	amazon.com
14.		Panasonic S1R II	134 mm	102 mm	92 mm	795 g	350	Y	May 2025	US$ 3 299	amazon.com
15.		Panasonic S5 II	134 mm	102 mm	90 mm	740 g	370	Y	Jan 2023	US$ 1 999	amazon.com
16.		Sony A1 II	136 mm	97 mm	83 mm	743 g	520	Y	Nov 2024	US$ 6 499	amazon.com
17.		Sony A7R V	131 mm	97 mm	82 mm	723 g	530	Y	Oct 2022	US$ 3 899	amazon.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The listed launch prices provide an indication of the market segment that the manufacturer of the cameras have been targeting. The R-D1 was launched at a markedly lower price (by 30 percent) than the R5 Mark II, which puts it into a different market segment. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be associated with larger, more expensive camera bodies and lenses.

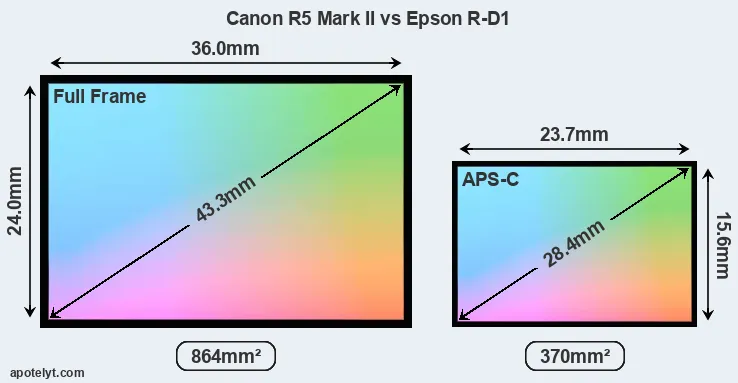

Of the two cameras under consideration, the Canon R5 Mark II features a full frame sensor and the Epson R-D1 an APS-C sensor. The sensor area in the R-D1 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

With 44.8MP, the R5 Mark II offers a higher resolution than the R-D1 (6MP), but the R5 Mark II has smaller individual pixels (pixel pitch of 4.39μm versus 7.85μm for the R-D1). However, the R5 Mark II is a much more recent model (by 20 years and 4 months) than the R-D1, and its sensor will have benefitted from technological advances during this time that enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R5 Mark II implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R5 Mark II for good quality output (200 dots per inch) amounts to 41 x 27.3 inches or 104 x 69.4 cm, for very good quality (250 dpi) 32.8 x 21.9 inches or 83.2 x 55.5 cm, and for excellent quality (300 dpi) 27.3 x 18.2 inches or 69.4 x 46.3 cm. The corresponding values for the Epson R-D1 are 15 x 10 inches or 38.2 x 25.4 cm for good quality, 12 x 8 inches or 30.6 x 20.3 cm for very good quality, and 10 x 6.7 inches or 25.5 x 16.9 cm for excellent quality prints.

The R5 Mark II has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R5 Mark II has a native sensitivity range from ISO 100 to ISO 51200, which can be extended to ISO 50-102400. The corresponding ISO settings for the Epson R-D1 are ISO 200 to ISO 1600 (no boost).

In terms of underlying technology, the R5 Mark II is build around a CMOS sensor, while the R-D1 uses a CCD imager. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

For many cameras, data on sensor performance has been reported by DXO Mark. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R5 Mark II	Full Frame	44.8	8192	5464	8k/60p	25.4	14.8	3332	97
2.		Epson R-D1	APS-C	6.0	3008	2000	none	21.1	10.4	564	55
3.		Canon R1	Full Frame	24.0	6000	4000	6K/60p	25.4	14.8	3332	97
4.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
5.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
6.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
7.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
8.		Canon Rebel	APS-C	6.3	3072	2048	none	21.0	10.8	544	55
9.		Leica X Vario	APS-C	16.1	4928	3272	1080/30p	23.4	12.7	1320	78
10.		Nikon D50	APS-C	6.0	3008	2000	none	20.9	10.8	560	55
11.		Nikon D70	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
12.		Nikon D70s	APS-C	6.0	3008	2000	none	20.4	10.3	529	50
13.		Nikon Z8	Full Frame	45.4	8256	5504	8K/30p	26.3	14.2	2548	98
14.		Panasonic S1R II	Full Frame	44.2	8144	5424	8K/30p	25.4	14.8	3406	97
15.		Panasonic S5 II	Full Frame	24.0	6000	4000	6K/30p	25.4	14.6	3158	96
16.		Sony A1 II	Full Frame	49.8	8640	5760	8k/30p	25.4	14.8	3363	97
17.		Sony A7R V	Full Frame	60.2	9504	6336	8k/24p	26.5	14.8	3187	100
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but also of capturing video footage. The R5 Mark II indeed provides movie recording capabilities, while the R-D1 does not. The highest resolution format that the R5 Mark II can use is 8k/60p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R5 Mark II has an electronic viewfinder (5760k dots), while the R-D1 has an optical one. Both systems have their advantages, with the electronic viewfinder making it possible to project supplementary shooting information into the framing view, whereas the optical viewfinder offers lag-free viewing and a very clear framing image. The following table reports on some other key feature differences and similarities of the Canon R5 Mark II, the Epson R-D1, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R5 Mark II	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
2.		Epson R-D1	optical	n	2.0 / 235	fixed	n	1/2000s	1.0/s	n	n
3.		Canon R1	9440	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
4.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
5.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
6.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
8.		Canon Rebel	optical	n	1.8 / 118	fixed	n	1/4000s	2.5/s	Y	n
9.		Leica X Vario	optional	n	3.0 / 920	fixed	n	1/2000s	5.0/s	Y	n
10.		Nikon D50	optical	n	2.0 / 130	fixed	n	1/4000s	2.5/s	Y	n
11.		Nikon D70	optical	n	1.8 / 130	fixed	n	1/8000s	3.0/s	Y	n
12.		Nikon D70s	optical	n	2.0 / 130	fixed	n	1/8000s	3.0/s	Y	n
13.		Nikon Z8	3690	Y	3.2 / 2089	full-flex	Y	1/32000s	30.0/s	n	Y
14.		Panasonic S1R II	5760	n	3.2 / 1840	full-flex	Y	1/8000s	9.0/s	n	Y
15.		Panasonic S5 II	3680	n	3.0 / 1840	swivel	Y	1/8000s	9.0/s	n	Y
16.		Sony A1 II	9437	n	3.2 / 2100	full-flex	Y	1/8000s	30.0/s	n	Y
17.		Sony A7R V	9440	n	3.2 / 2100	full-flex	Y	1/8000s	10.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that is present on the R5 Mark II, but is missing on the R-D1 is a top-level LCD. While being, of course, smaller than the rear screen, the control panel conveys some of the essential shooting information and can be convenient for quick and easy settings verification.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R5 Mark II is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R5 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R5 Mark II writes its imaging data to CFexpress (type B) or SDXC cards, while the R-D1 uses SDHC cards. The R5 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the R-D1 only has one slot. The R5 Mark II supports UHS-II cards (on both slots), while the R-D1 cannot take advantage of Ultra High Speed SD cards.

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R5 Mark II and Epson R-D1 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R5 Mark II	Y	mono / mono	Y	Y	full	3.2	Y	-	Y
2.		Epson R-D1	Y	- / -	-	-	-	-	-	-	-
3.		Canon R1	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
4.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
5.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Canon Rebel	Y	- / -	-	-	-	1.1	-	-	-
9.		Leica X Vario	Y	stereo / mono	-	-	mini	2.0	-	-	-
10.		Nikon D50	Y	- / -	-	-	-	2.0	-	-	-
11.		Nikon D70	Y	- / -	-	-	-	1.0	-	-	-
12.		Nikon D70s	Y	- / -	-	-	-	2.0	-	-	-
13.		Nikon Z8	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
14.		Panasonic S1R II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
15.		Panasonic S5 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
16.		Sony A1 II	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Sony A7R V	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y

It is notable that the R5 Mark II offers wifi support, while the R-D1 does not. Wifi can be a very convenient means to transfer image data to an off-camera location.

Both cameras feature a PC Sync terminal to control professional strobe lights, which will be appreciated by studio photographers.

The R5 Mark II is a recent model that features in the current product line-up of Canon. In contrast, the R-D1 has been discontinued (but can be found pre-owned on ebay). There has not been a direct replacement model for the R-D1 from Epson. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Epson websites.

Review summary

So how do things add up? Which of the two cameras – the Canon R5 Mark II or the Epson R-D1 – has the upper hand? Is one clearly better than the other? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS R5 Mark II:

• More detail: Offers more megapixels (44.8 vs 6MP) with a 173% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Broader imaging potential: Can record not only still images but also 8k/60p movies.
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• More framing info: Has an electronic viewfinder that displays shooting data.
• Easier setting verification: Features an LCD display on top to control shooting parameters.
• Larger screen: Has a bigger rear LCD (3.2" vs 2.0") for image review and settings control.
• More detailed LCD: Has a higher resolution rear screen (2100k vs 235k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• Fewer buttons to press: Is equipped with a touch-sensitive rear screen to facilitate handling.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 1 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Easier travel charging: Can be conveniently charged via its USB port.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Easier file upload: Has wifi built in for automatic backup or image transfer to the web.
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports Ultra High Speed (UHS-II) SDXC cards on both slots.
• More modern: Reflects 20 years and 4 months of technical progress since the R-D1 launch.

Arguments in favor of the Epson R-D1:

• Brighter framing: Features an optical viewfinder for clear, lag-free composition.
• Less heavy: Has a lower weight (by 126g or 17 percent) and is thus easier to take along.
• More affordable: Was introduced into a lower priced category (30 percent cheaper at launch).
• More heavily discounted: Has been around for much longer (launched in March 2004).

If the number of relative strengths (bullet points above) is taken as a guide, the R5 Mark II is the clear winner of the match-up (26 : 4 points). However, the relative importance of the various individual camera aspects will vary according to personal preferences and needs, so that you might like to apply corresponding weights to the particular features before making a decision on a new camera. A professional sports photographer will view the differences between cameras in a way that diverges from the perspective of a street photog, and a person interested in family portraits has distinct needs from a landscape shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

In any case, while the comparison of the spec-sheets of cameras can offer a general idea of their imaging potential, it remains incomplete and does no justice, for example, to the way the R5 Mark II or the R-D1 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is where reviews by experts come in. The table below provides a synthesis of the camera assessments of some of the best known photo-gear review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R5 Mark II	..	..	..	93/100	..	..	Jul 2024	US$ 4 299	amazon.com
2.		Epson R-D1	..	..	..	..	..	..	Mar 2004	US$ 2 999	ebay.com
3.		Canon R1	..	..	..	..	..	..	Jul 2024	US$ 6 299	amazon.com
4.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
5.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
6.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
7.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
8.		Canon Rebel	..	..	..	+ +	..	..	Aug 2003	US$ 899	ebay.com
9.		Leica X Vario	3/5	..	..	..	4/5	4/5	Jun 2013	US$ 2 849	ebay.com
10.		Nikon D50	..	78/100	..	+ +	4/5	4.5/5	Apr 2005	US$ 749	ebay.com
11.		Nikon D70	..	..	..	+ +	..	..	Jan 2004	US$ 999	ebay.com
12.		Nikon D70s	..	..	..	..	..	5/5	Apr 2005	US$ 899	ebay.com
13.		Nikon Z8	5/5	..	5/5	94/100	5/5	4.5/5	May 2023	US$ 3 999	amazon.com
14.		Panasonic S1R II	..	..	..	..	..	..	May 2025	US$ 3 299	amazon.com
15.		Panasonic S5 II	4.5/5	+ +	5/5	90/100	4.5/5	5/5	Jan 2023	US$ 1 999	amazon.com
16.		Sony A1 II	..	..	..	..	..	..	Nov 2024	US$ 6 499	amazon.com
17.		Sony A7R V	5/5	+ +	4.5/5	92/100	..	..	Oct 2022	US$ 3 899	amazon.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

Care should be taken when interpreting the review scores above, though. The assessments were made in relation to similar cameras of the same technological generation. A score, therefore, has to be seen in close connection to the price and market introduction time of the camera, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.

Check R5 Mark II price at
amazon.com
Check R-D1 offers at
ebay.com

Other camera comparisons

Did this review help to inform your camera decision process? In case you are interested in seeing how other cameras pair up, just make a corresponding selection in the search boxes below. There is also a set of direct links to comparison reviews that other users of the CAM-parator app explored.

~

Check R5 Mark II price at
amazon.com
Check R-D1 offers at
ebay.com

Did you notice an error on this page? If so, please get in touch, so that we can correct the information.
