Canon R6 Mark II vs Fujifilm X-M5

The Canon EOS R6 Mark II and the Fujifilm X-M5 are two digital cameras that were revealed to the public, respectively, in November 2022 and October 2025. Both the R6 Mark II and the X-M5 are mirrorless interchangeable lens cameras that are based on a full frame (R6 Mark II) and an APS-C (X-M5) sensor. The Canon has a resolution of 24 megapixels, whereas the Fujifilm provides 26 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R6 Mark II		Fujifilm X-M5
Mirrorless system camera		Mirrorless system camera
Canon RF mount lenses		Fujifilm X mount lenses
24 MP – Full Frame sensor		26 MP – APS-C sensor
4k/60p Video		4K/60p Video
ISO 100-102,400 (100 - 204,800)		ISO 160-12,800 (80 - 51,200)
Electronic viewfinder (3690k dots)		No viewfinder, LCD framing
3.0" LCD – 1620k dots		3.0" LCD – 1040k dots
Swivel touchscreen		Swivel touchscreen
12 shutter flaps per second		8 shutter flaps per second
In-body stabilization		Lens stabilization only
Weathersealed body		not weather sealed
450 shots per battery charge		330 shots per battery charge
138 x 98 x 88 mm, 670 g		112 x 67 x 38 mm, 355 g

Check R6 Mark II price at
amazon.com
Check X-M5 price at
amazon.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R6 Mark II and the Fujifilm X-M5? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

Body comparison

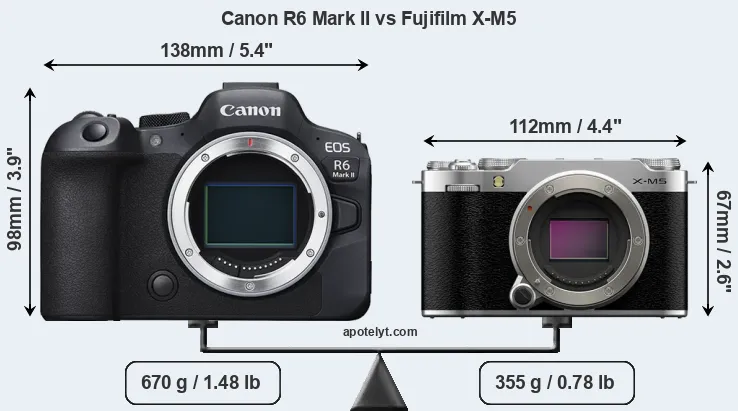

An illustration of the physical size and weight of the Canon R6 Mark II and the Fujifilm X-M5 is provided in the side-by-side display below. The two cameras are presented according to their relative size. Three successive views from the front, the top, and the rear are shown. All width, height and depth measures are rounded to the nearest millimeter.

The X-M5 can be obtained in two different colors (black, silver), while the R6 Mark II is only available in black.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Fujifilm X-M5 is considerably smaller (45 percent) than the Canon R6 Mark II. Moreover, the X-M5 is substantially lighter (47 percent) than the R6 Mark II. It is worth mentioning in this context that the R6 Mark II is splash and dust resistant, while the X-M5 does not feature any corresponding weather-sealing.

The above size and weight comparisons are to some extent incomplete since they do not consider the interchangeable lenses that both of these cameras require. Hence, you might want to study and compare the specifications of available lenses in order to get the full picture of the size and weight of the two camera systems.

Concerning battery life, the R6 Mark II gets 450 shots out of its Canon LP-E6NH battery, while the X-M5 can take 330 images on a single charge of its Fujifilm NP-W126S power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The adjacent table lists the principal physical characteristics of the two cameras alongside a wider set of alternatives. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R6 Mark II	138 mm	98 mm	88 mm	670 g	450	Y	Nov 2022	US$ 2 499	amazon.com
2.		Fujifilm X-M5	112 mm	67 mm	38 mm	355 g	330	n	Oct 2025	US$ 799	amazon.com
3.		Canon 6D	145 mm	111 mm	71 mm	770 g	1090	Y	Sep 2012	US$ 2 099	ebay.com
4.		Canon R	139 mm	98 mm	84 mm	660 g	370	Y	Sep 2018	US$ 2 299	ebay.com
5.		Canon R3	150 mm	143 mm	87 mm	1015 g	760	Y	Sep 2021	US$ 5 999	amazon.com
6.		Canon R5	138 mm	98 mm	88 mm	738 g	320	Y	Jul 2020	US$ 3 899	amazon.com
7.		Canon R5 C	142 mm	101 mm	111 mm	770 g	320	Y	Jan 2022	US$ 4 499	amazon.com
8.		Canon R6	138 mm	98 mm	88 mm	680 g	360	Y	Jul 2020	US$ 2 499	amazon.com
9.		Fujifilm X-E3	121 mm	74 mm	43 mm	337 g	350	n	Sep 2017	US$ 899	ebay.com
10.		Fujifilm X-H2S	136 mm	93 mm	85 mm	660 g	580	Y	May 2022	US$ 2 499	amazon.com
11.		Fujifilm X-M1	117 mm	67 mm	39 mm	330 g	350	n	Jun 2013	US$ 699	ebay.com
12.		Fujifilm X-T20	118 mm	83 mm	41 mm	383 g	350	n	Jan 2017	US$ 899	ebay.com
13.		Fujifilm X-T30	118 mm	83 mm	47 mm	383 g	380	n	Feb 2019	US$ 899	ebay.com
14.		Fujifilm X-T200	121 mm	84 mm	55 mm	370 g	270	n	Jan 2020	US$ 699	ebay.com
15.		OM System OM-1	135 mm	92 mm	73 mm	599 g	520	Y	Feb 2022	US$ 2 199	ebay.com
16.		Sony A7 IV	131 mm	96 mm	80 mm	659 g	580	Y	Oct 2021	US$ 2 499	amazon.com
17.		Sony A99	147 mm	111 mm	78 mm	812 g	500	Y	Sep 2012	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

Any camera decision will naturally be influenced heavily by the price. The retail prices at the time of the camera’s release place the model in the market relative to other models in the producer’s line-up and the competition. The X-M5 was launched at a markedly lower price (by 68 percent) than the R6 Mark II, which puts it into a different market segment. Normally, street prices remain initially close to the MSRP, but after a couple of months, the first discounts appear. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down.

Sensor comparison

The imaging sensor is at the core of digital cameras and its size is one of the main determining factors of image quality. A large sensor will generally have larger individual pixels that offer better low-light sensitivity, provide wider dynamic range, and have richer color-depth than smaller pixels in a sensor of the same technological generation. Moreover, a large sensor camera will give the photographer more control over depth-of-field in the image and, thus, the ability to better isolate a subject from the background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R6 Mark II features a full frame sensor and the Fujifilm X-M5 an APS-C sensor. The sensor area in the X-M5 is 57 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 1.5. Both cameras have a native aspect ratio (sensor width to sensor height) of 3:2.

Despite having a smaller sensor, the X-M5 offers a slightly higher resolution of 26 megapixels, compared with 24 MP of the R6 Mark II. This megapixels advantage comes at the cost of a higher pixel density and a smaller size of the individual pixel (with a pixel pitch of 3.76μm versus 5.98μm for the R6 Mark II). However, it should be noted that the X-M5 is much more recent (by 2 years and 11 months) than the R6 Mark II, and its sensor will have benefitted from technological advances during this time that make it possible to gather light more efficiently. Coming back to sensor resolution, it should be mentioned that the X-M5 has no anti-alias filter installed, so that it can capture all the detail its sensor resolves.

The Canon EOS R6 Mark II has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 100-204800. The corresponding ISO settings for the Fujifilm X-M5 are ISO 160 to ISO 12800, with the possibility to increase the ISO range to 80-51200.

In terms of underlying technology, the R6 Mark II is build around a CMOS sensor, while the X-M5 uses a BSI-CMOS imager. Like most digital cameras, the R6 Mark II uses a Bayer filter for capturing RGB colors on a square grid of photosensors. In contrast, the X-M5 employs a more randomized X-Trans layout of photosites, which according to Fujifilm helps to minimize moiré.

For many cameras, data on sensor performance has been reported by DXO Mark. This service determines an overall sensor rating, as well as sub-scores for low-light sensitivity ("DXO Sports"), dynamic range ("DXO Landscape"), and color depth ("DXO Portrait"). The following table provides an overview of the physical sensor characteristics, as well as the sensor quality measurements for a selection of comparators.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R6 Mark II	Full Frame	24.0	6000	4000	4k/60p	25.4	14.6	3154	96
2.		Fujifilm X-M5	APS-C	26.0	6240	4160	4K/60p	24.3	14.2	2558	86
3.		Canon 6D	Full Frame	20.0	5472	3648	1080/30p	23.8	12.1	2340	82
4.		Canon R	Full Frame	30.1	6720	4480	4K/30p	24.5	13.5	2742	89
5.		Canon R3	Full Frame	24.0	6000	4000	6K/60p	25.0	14.7	4086	96
6.		Canon R5	Full Frame	44.8	8192	5464	8K/30p	25.3	14.6	3042	95
7.		Canon R5 C	Full Frame	44.8	8192	5464	8k/60p	25.4	14.5	3082	96
8.		Canon R6	Full Frame	20.0	5472	3648	4k/60p	24.2	14.3	3394	90
9.		Fujifilm X-E3	APS-C	24.0	6000	4000	4K/30p	23.9	13.3	1764	82
10.		Fujifilm X-H2S	APS-C	26.0	6240	4160	6.2k/30p	24.3	13.9	2224	86
11.		Fujifilm X-M1	APS-C	16.0	4896	3264	1080/30p	23.4	12.6	1371	76
12.		Fujifilm X-T20	APS-C	24.0	6000	4000	4K/30p	23.9	13.2	1704	81
13.		Fujifilm X-T30	APS-C	26.0	6240	4160	4K/30p	24.1	13.5	1895	83
14.		Fujifilm X-T200	APS-C	24.0	6000	4000	4K/30p	24.1	13.6	1991	84
15.		OM System OM-1	Four Thirds	20.2	5184	3888	4K/60p	23.4	13.4	1553	77
16.		Sony A7 IV	Full Frame	32.7	7008	4672	4K/60p	25.4	14.7	3379	97
17.		Sony A99	Full Frame	24.0	6000	4000	1080/60p	25.0	14.0	1555	89
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras are not only capable of taking still images, but can also record movies. The two cameras under consideration both have sensors whose read-out speed is fast enough to capture moving pictures, and both provide the same movie specifications (4k/60p).

Feature comparison

Apart from body and sensor, cameras can and do differ across a range of features. For example, the R6 Mark II has an electronic viewfinder (3690k dots), which can be very helpful when shooting in bright sunlight. In contrast, the X-M5 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon R6 Mark II, the Fujifilm X-M5, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R6 Mark II	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
2.		Fujifilm X-M5	none	n	3.0 / 1040	swivel	Y	1/4000s	8.0/s	Y	n
3.		Canon 6D	optical	Y	3.0 / 1040	fixed	n	1/4000s	4.5/s	n	n
4.		Canon R	3690	Y	3.2 / 2100	swivel	Y	1/8000s	8.0/s	n	n
5.		Canon R3	5760	Y	3.2 / 4150	swivel	Y	1/8000s	12.0/s	n	Y
6.		Canon R5	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	Y
7.		Canon R5 C	5760	Y	3.2 / 2100	swivel	Y	1/8000s	12.0/s	n	n
8.		Canon R6	3690	n	3.0 / 1620	swivel	Y	1/8000s	12.0/s	n	Y
9.		Fujifilm X-E3	2360	n	3.0 / 1040	fixed	Y	1/4000s	8.0/s	n	n
10.		Fujifilm X-H2S	5760	Y	3.0 / 1620	swivel	Y	1/8000s	15.0/s	n	Y
11.		Fujifilm X-M1	none	n	3.0 / 920	tilting	n	1/4000s	5.6/s	Y	n
12.		Fujifilm X-T20	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
13.		Fujifilm X-T30	2360	n	3.0 / 1040	tilting	Y	1/4000s	8.0/s	Y	n
14.		Fujifilm X-T200	2360	n	3.5 / 2780	swivel	Y	1/4000s	8.0/s	Y	n
15.		OM System OM-1	5760	n	3.0 / 1640	swivel	Y	1/8000s	10.0/s	n	Y
16.		Sony A7 IV	3686	n	3.0 / 1037	swivel	Y	1/8000s	10.0/s	n	Y
17.		Sony A99	2359	Y	3.0 / 1229	full-flex	n	1/8000s	6.0/s	n	Y
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

One feature that differentiates the R6 Mark II and the X-M5 is in-body image stabilization (IBIS). The R6 Mark II reduces the risk of handshake-induced blur with all attached lenses, while the X-M5 offers no blur reduction with lenses that themselves do not provide optical image stabilization.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, both cameras under consideration feature an electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R6 Mark II has an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

Concerning the storage of imaging data, both the R6 Mark II and the X-M5 write their files to SDXC cards. The R6 Mark II features dual card slots, which can be very useful in case a memory card fails. In contrast, the X-M5 only has one slot. The R6 Mark II supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the X-M5 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R6 Mark II and Fujifilm X-M5 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R6 Mark II	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Fujifilm X-M5	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
3.		Canon 6D	Y	mono / mono	Y	-	mini	2.0	Y	-	-
4.		Canon R	Y	stereo / mono	Y	Y	mini	3.1	Y	-	Y
5.		Canon R3	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
6.		Canon R5	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
7.		Canon R5 C	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
8.		Canon R6	Y	mono / mono	Y	Y	micro	3.2	Y	-	Y
9.		Fujifilm X-E3	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
10.		Fujifilm X-H2S	Y	stereo / mono	Y	Y	full	3.0	Y	-	Y
11.		Fujifilm X-M1	Y	stereo / mono	-	-	mini	2.0	Y	-	Y
12.		Fujifilm X-T20	Y	stereo / mono	Y	-	micro	2.0	Y	-	-
13.		Fujifilm X-T30	Y	stereo / mono	Y	-	micro	3.1	Y	-	Y
14.		Fujifilm X-T200	Y	stereo / mono	Y	Y	micro	3.1	Y	-	Y
15.		OM System OM-1	Y	stereo / mono	Y	Y	micro	3.0	Y	-	Y
16.		Sony A7 IV	Y	stereo / mono	Y	Y	full	3.2	Y	-	Y
17.		Sony A99	Y	stereo / mono	Y	Y	mini	2.0	-	-	-

Both the R6 Mark II and the X-M5 are recent models that are part of the current product line-up. The R6 Mark II replaced the earlier Canon R6, while the X-M5 followed on from the Fujifilm X-M1. Further information on the two cameras (e.g. user guides, manuals), as well as related accessories, can be found on the official Canon and Fujifilm websites.

Review summary

So what is the bottom line? Is the Canon R6 Mark II better than the Fujifilm X-M5 or vice versa? A synthesis of the relative strong points of each of the models is listed below.

Reasons to prefer the Canon EOS R6 Mark II:

• Better moiré control: Has an anti-alias filter to avoid artificial patterns to appear in images.
• Better image quality: Features bigger pixels on a larger sensor for higher quality imaging.
• Richer colors: The pixel size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger pixels capture a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger pixels means good image quality even under poor lighting.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1040k dots).
• Faster shutter: Has higher mechanical shutter speed (1/8000s vs 1/4000s) to freeze action.
• Faster burst: Shoots at higher frequency (12 vs 8 flaps/sec) to capture the decisive moment.
• Easier time-lapse photography: Has an intervalometer built-in for low frequency shooting.
• Longer lasting: Can take more shots (450 versus 330) on a single battery charge.
• Better sealing: Is weather sealed to enable shooting in dusty or wet environments.
• Sharper images: Has hand-shake reducing image stabilization built-in.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More heavily discounted: Has been available for much longer (launched in November 2022).

Arguments in favor of the Fujifilm X-M5:

• Maximized detail: Lacks an anti-alias filter to exploit the sensor's full resolution potential.
• More compact: Is smaller (112x67mm vs 138x98mm) and will fit more readily into a bag.
• Less heavy: Has a lower weight (by 315g or 47 percent) and is thus easier to take along.
• Easier fill-in: Has a small integrated flash to brighten shadows of backlit subjects.
• More affordable: Was introduced into a lower priced category (68 percent cheaper at launch).
• More modern: Reflects 2 years and 11 months of technical progress since the R6 Mark II launch.

If the number of relative strengths (bullet points above) is taken as a guide, the R6 Mark II is the clear winner of the match-up (16 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wedding photographer will view the differences between cameras in a way that diverges from the perspective of a travel photog, and a person interested in cityscapes has distinct needs from a macro shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R6 Mark II and the Fujifilm X-M5 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera listing whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains partial and cannot reveal, for example, the shooting experience and imaging performance when actually working with the R6 Mark II or the X-M5. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why expert reviews are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R6 Mark II	5/5	+ +	4.5/5	91/100	4.5/5	5/5	Nov 2022	US$ 2 499	amazon.com
2.		Fujifilm X-M5	..	..	..	84/100	..	..	Oct 2025	US$ 799	amazon.com
3.		Canon 6D	5/5	+ +	..	83/100	4.5/5	4.5/5	Sep 2012	US$ 2 099	ebay.com
4.		Canon R	4/5	o	4/5	79/100	4.5/5	4/5	Sep 2018	US$ 2 299	ebay.com
5.		Canon R3	5/5	o	4.5/5	..	5/5	4.5/5	Sep 2021	US$ 5 999	amazon.com
6.		Canon R5	4.5/5	+	4/5	91/100	4.5/5	4.5/5	Jul 2020	US$ 3 899	amazon.com
7.		Canon R5 C	..	+ +	..	..	..	..	Jan 2022	US$ 4 499	amazon.com
8.		Canon R6	5/5	+ +	4/5	90/100	4.5/5	5/5	Jul 2020	US$ 2 499	amazon.com
9.		Fujifilm X-E3	4.5/5	+	4.5/5	84/100	4.5/5	4.5/5	Sep 2017	US$ 899	ebay.com
10.		Fujifilm X-H2S	5/5	+	5/5	90/100	5/5	5/5	May 2022	US$ 2 499	amazon.com
11.		Fujifilm X-M1	3/5	+	..	77/100	4.5/5	4.5/5	Jun 2013	US$ 699	ebay.com
12.		Fujifilm X-T20	5/5	+ +	5/5	82/100	5/5	4.5/5	Jan 2017	US$ 899	ebay.com
13.		Fujifilm X-T30	5/5	+ +	5/5	84/100	4.5/5	4.5/5	Feb 2019	US$ 899	ebay.com
14.		Fujifilm X-T200	3.5/5	..	4/5	82/100	4/5	4.5/5	Jan 2020	US$ 699	ebay.com
15.		OM System OM-1	5/5	..	..	87/100	5/5	4.5/5	Feb 2022	US$ 2 199	ebay.com
16.		Sony A7 IV	5/5	+ +	4.5/5	89/100	4.5/5	4.5/5	Oct 2021	US$ 2 499	amazon.com
17.		Sony A99	5/5	..	..	84/100	4.5/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The ratings are only valid when referring to cameras in the same category and of the same age. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. Also, please note that some of the review sites have changed their methodology and reporting over time.
