Canon R8 vs XC10

The Canon EOS R8 and the Canon XC10 are two digital cameras that were announced, respectively, in February 2023 and April 2015. The R8 is a mirrorless interchangeable lens camera, while the XC10 is a fixed lens compact. The cameras are based on a full frame (R8) and an one-inch (XC10) sensor. The R8 has a resolution of 24 megapixels, whereas the XC10 provides 12 MP.

Below is an overview of the main specs of the two cameras as a starting point for the comparison.

Headline Specifications

Canon R8		Canon XC10
Mirrorless system camera		Fixed lens compact camera
Canon RF mount lenses		24-240mm f/2.8-5.6
24 MP – Full Frame sensor		12 MP – 1" sensor
4k/60p Video		4K/30p Video
ISO 100-102,400 (100 - 204,800)		ISO 160-20,000
Electronic viewfinder (2360k dots)		No viewfinder, LCD framing
3.0" LCD – 1620k dots		3.0" LCD – 1030k dots
Swivel touchscreen		Tilting touchscreen
6 shutter flaps per second		3.8 shutter flaps per second
220 shots per battery charge		370 shots per battery charge
133 x 86 x 70 mm, 461 g		125 x 102 x 122 mm, 1040 g

Check R8 price at
amazon.com
Check XC10 offers at
ebay.com

Going beyond this snapshot of core features and characteristics, what are the differences between the Canon EOS R8 and the Canon XC10? Which one should you buy? Read on to find out how these two cameras compare with respect to their body size, their imaging sensors, their shooting features, their input-output connections, and their reception by expert reviewers.

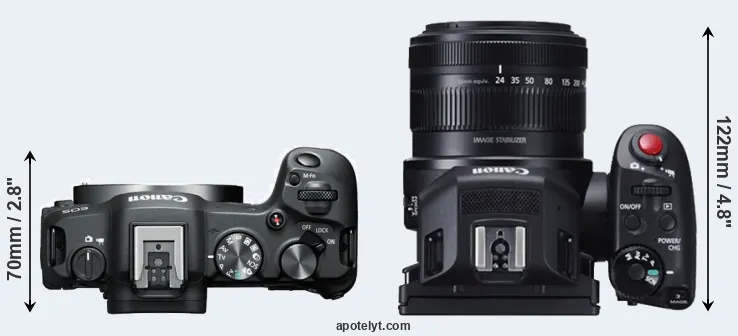

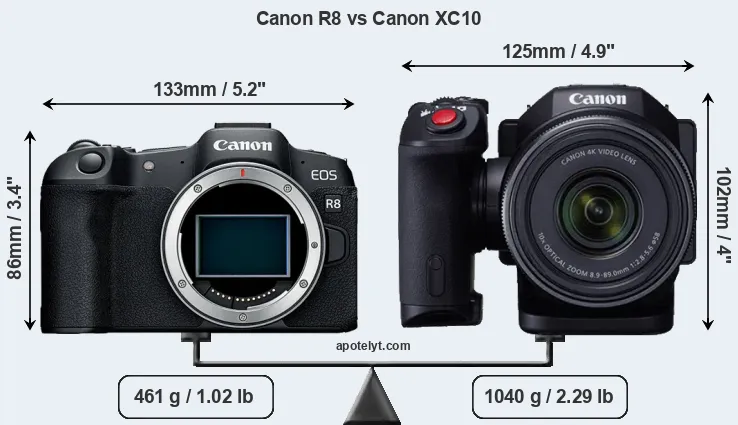

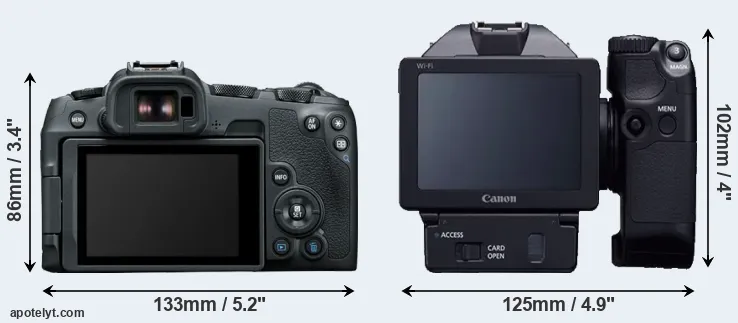

Body comparison

The physical size and weight of the Canon R8 and the Canon XC10 are illustrated in the side-by-side display below. The two cameras are presented according to their relative size. Three consecutive perspectives from the front, the top, and the back are available. All width, height and depth dimensions are rounded to the nearest millimeter.

If the front view area (width x height) of the cameras is taken as an aggregate measure of their size, the Canon XC10 is notably larger (11 percent) than the Canon R8. In this context, it is worth noting that neither the R8 nor the XC10 are weather-sealed.

The above size and weight comparisons are to some extent incomplete and possibly misleading, as the XC10 has a lens built in, whereas the R8 is an interchangeable lens camera that requires a separate lens. Attaching the latter will add extra weight and bulk to the setup.

Concerning battery life, the R8 gets 220 shots out of its Canon LP-E17 battery, while the XC10 can take 370 images on a single charge of its Canon LP-E6N power pack. The battery packs of both cameras can be charged via USB, which can be very convenient when travelling.

The following table provides a synthesis of the main physical specifications of the two cameras and other similar ones. In case you want to display and compare another camera duo, you can use the CAM-parator app to select your camera combination among a large number of options.

Body Specifications

		Camera Model	Camera Width	Camera Height	Camera Depth	Camera Weight	Battery Life	Weather Sealing	Camera Launch	Launch Price	Street Price
1.		Canon R8	133 mm	86 mm	70 mm	461 g	220	n	Feb 2023	US$ 1 499	amazon.com
2.		Canon XC10	125 mm	102 mm	122 mm	1040 g	370	n	Apr 2015	US$ 2 499	ebay.com
3.		Canon 77D	131 mm	100 mm	76 mm	540 g	600	n	Feb 2017	US$ 899	ebay.com
4.		Canon G1 X Mark II	116 mm	74 mm	66 mm	553 g	240	n	Feb 2014	US$ 799	ebay.com
5.		Canon G5 X	112 mm	76 mm	44 mm	353 g	210	n	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	103 mm	60 mm	40 mm	304 g	210	n	Sep 2014	US$ 699	ebay.com
7.		Canon G7 X Mark II	106 mm	61 mm	42 mm	319 g	265	n	Feb 2016	US$ 699	ebay.com
8.		Canon M5	116 mm	89 mm	61 mm	427 g	295	n	Sep 2016	US$ 979	ebay.com
9.		Canon M6	112 mm	68 mm	45 mm	390 g	295	n	Feb 2017	US$ 779	ebay.com
10.		Canon R10	123 mm	88 mm	83 mm	429 g	450	n	May 2022	US$ 979	amazon.com
11.		Canon RP	133 mm	85 mm	70 mm	485 g	250	n	Feb 2019	US$ 1 299	amazon.com
12.		Canon SL2	122 mm	93 mm	70 mm	453 g	650	n	Jun 2017	US$ 549	ebay.com
13.		Canon SX60	128 mm	93 mm	114 mm	650 g	340	n	Sep 2014	US$ 549	ebay.com
14.		Sony A7	127 mm	94 mm	48 mm	474 g	340	Y	Oct 2013	US$ 1 699	ebay.com
15.		Sony NEX-7	120 mm	67 mm	43 mm	400 g	430	n	Aug 2011	US$ 1 349	ebay.com
16.		Sony RX1	113 mm	65 mm	70 mm	482 g	270	n	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	113 mm	65 mm	70 mm	482 g	270	n	Jun 2013	US$ 2 799	ebay.com
Note: Measurements and pricing do not include easily detachable parts, such as add-on or interchangeable lenses or optional viewfinders.
Convert to Imperial

The price is, of course, an important factor in any camera decision. The manufacturer’s suggested retail prices give an idea on the placement of the camera in the maker’s lineup and the broader market. Usually, retail prices stay at first close to the launch price, but after several months, discounts become available. Later in the product cycle and, in particular, when the replacement model is about to appear, further discounting and stock clearance sales often push the camera price considerably down. Then, after the new model is out, very good deals can frequently be found on the pre-owned market.

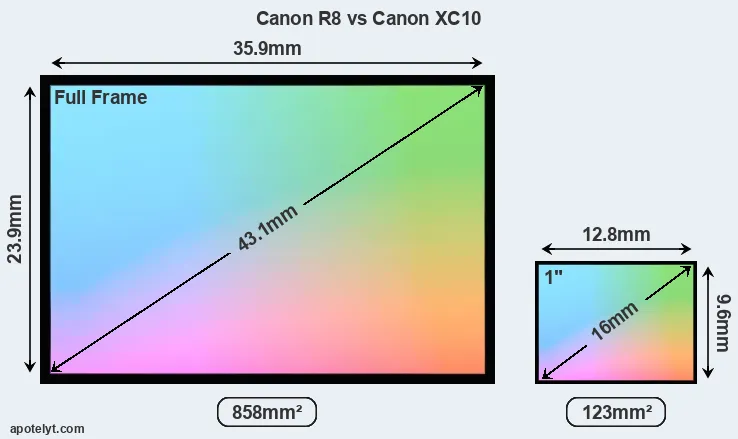

Sensor comparison

The size of the sensor inside a digital camera is one of the key determinants of image quality. All other things equal, a large sensor will have larger individual pixel-units that offer better low-light sensitivity, wider dynamic range, and richer color-depth than smaller pixels in a sensor of the same technological generation. Further, a large sensor camera will give the photographer additional creative options when using shallow depth-of-field to isolate a subject from its background. On the downside, larger sensors tend to be more expensive and lead to bigger and heavier cameras and lenses.

Of the two cameras under consideration, the Canon R8 features a full frame sensor and the Canon XC10 an one-inch sensor. The sensor area in the XC10 is 86 percent smaller. As a result of these sensor size differences, the cameras have a format factor of, respectively, 1.0 and 2.75. The sensor in the R8 has a native 3:2 aspect ratio, while the one in the XC10 offers a 4:3 aspect.

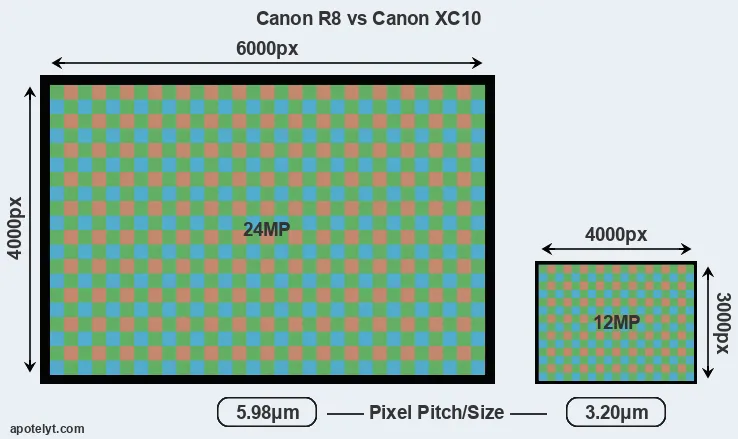

With 24MP, the R8 offers a higher resolution than the XC10 (12MP), but the R8 nevertheless has larger individual pixels (pixel pitch of 5.98μm versus 3.20μm for the XC10) due to its larger sensor. Moreover, the R8 is a much more recent model (by 7 years and 10 months) than the XC10, and its sensor will have benefitted from technological advances during this time that further enhance the light gathering capacity of its pixels.

The resolution advantage of the Canon R8 implies greater flexibility for cropping images or the possibility to print larger pictures. The maximum print size of the R8 for good quality output (200 dots per inch) amounts to 30 x 20 inches or 76.2 x 50.8 cm, for very good quality (250 dpi) 24 x 16 inches or 61 x 40.6 cm, and for excellent quality (300 dpi) 20 x 13.3 inches or 50.8 x 33.9 cm. The corresponding values for the Canon XC10 are 20 x 15 inches or 50.8 x 38.1 cm for good quality, 16 x 12 inches or 40.6 x 30.5 cm for very good quality, and 13.3 x 10 inches or 33.9 x 25.4 cm for excellent quality prints.

The R8 has on-sensor phase detect pixels, which results in fast and reliable autofocus acquisition even during live view operation.

The Canon EOS R8 has a native sensitivity range from ISO 100 to ISO 102400, which can be extended to ISO 100-204800. The corresponding ISO settings for the Canon XC10 are ISO 160 to ISO 20000 (no boost).

Technology-wise, both cameras are equipped with CMOS (Complementary Metal–Oxide–Semiconductor) sensors. Both cameras use a Bayer filter for capturing RGB colors on a square grid of photosensors. This arrangement is found in most digital cameras.

Since 2007, DXO Mark has published sensor performance measurements that have been derived using a consistent methodology. This service is based on lab testing and assigns an overall score to each camera sensor, as well as ratings for dynamic range ("DXO Landscape"), color depth ("DXO Portrait"), and low-light sensitivity ("DXO Sports"). The adjacent table reports on the physical sensor characteristics and the outcomes of the DXO sensor quality tests for a sample of comparator-cameras.

Sensor Characteristics

		Camera Model	Sensor Class	Resolution (MP)	Horiz. Pixels	Vert. Pixels	Video Format	DXO Portrait	DXO Landscape	DXO Sports	DXO Overall
1.		Canon R8	Full Frame	24.0	6000	4000	4k/60p	24.5	14.7	3295	93
2.		Canon XC10	1-inch	12.0	4000	3000	4K/30p	21.7	11.8	197	61
3.		Canon 77D	APS-C	24.0	6000	4000	1080/60p	23.6	13.3	971	78
4.		Canon G1 X Mark II	1.5-inch	13.0	4160	3120	1080/30p	21.5	10.8	581	58
5.		Canon G5 X	1-inch	20.0	5472	3648	1080/60p	21.4	12.3	471	62
6.		Canon G7 X	1-inch	20.0	5472	3648	1080/60p	23.0	12.7	556	71
7.		Canon G7 X Mark II	1-inch	20.0	5472	3648	1080/60p	21.8	11.9	260	62
8.		Canon M5	APS-C	24.0	6000	4000	1080/60p	23.4	12.4	1262	77
9.		Canon M6	APS-C	24.0	6000	4000	1080/60p	23.4	12.6	1317	78
10.		Canon R10	APS-C	24.0	6000	4000	4k/60p	24.1	13.8	2085	84
11.		Canon RP	Full Frame	26.0	6240	4160	4K/30p	24.3	11.9	2977	85
12.		Canon SL2	APS-C	24.0	6000	4000	1080/60p	23.6	13.4	1041	79
13.		Canon SX60	1/2.3	14.2	4608	3072	1080/60p	19.2	10.8	127	39
14.		Sony A7	Full Frame	24.0	6000	4000	1080/60p	24.8	14.2	2248	90
15.		Sony NEX-7	APS-C	24.0	6000	4000	1080/60i	24.1	13.4	1016	81
16.		Sony RX1	Full Frame	24.0	6000	4000	1080/60p	25.1	14.3	2534	93
17.		Sony RX1R	Full Frame	24.0	6000	4000	1080/60p	25.0	13.6	2537	91
Note: DXO values in italics represent estimates based on sensor size and age.

Many modern cameras cannot only take still pictures, but also record videos. Both cameras under consideration are equipped with sensors that have a sufficiently high read-out speed for moving images, but the R8 provides a higher frame rate than the XC10. It can shoot video footage at 4k/60p, while the XC10 is limited to 4K/30p.

Feature comparison

Beyond body and sensor, cameras can and do differ across a range of features. For example, the R8 has an electronic viewfinder (2360k dots), which can be very helpful when shooting in bright sunlight. In contrast, the XC10 relies on live view and the rear LCD for framing. The following table reports on some other key feature differences and similarities of the Canon R8, the Canon XC10, and comparable cameras.

Core Features

		Camera Model	Viewfinder (Type or 000 dots)	Control Panel (yes/no)	LCD Specifications (inch/000 dots)	LCD Attach- ment	Touch Screen (yes/no)	Max Shutter Speed *	Max Shutter Flaps *	Built-in Flash (yes/no)	Built-in Image Stab
1.		Canon R8	2360	n	3.0 / 1620	swivel	Y	1/4000s	6.0/s	n	n
2.		Canon XC10	none	n	3.0 / 1030	tilting	Y	1/2000s	3.8/s	n	Y
3.		Canon 77D	optical	Y	3.0 / 1040	swivel	Y	1/4000s	6.0/s	Y	n
4.		Canon G1 X Mark II	optional	n	3.0 / 1040	tilting	Y	1/4000s	5.2/s	Y	Y
5.		Canon G5 X	2360	n	3.0 / 1040	swivel	Y	1/2000s	5.9/s	Y	Y
6.		Canon G7 X	none	n	3.0 / 1040	tilting	Y	1/2000s	6.5/s	Y	Y
7.		Canon G7 X Mark II	none	n	3.0 / 1040	tilting	Y	1/2000s	8.0/s	Y	Y
8.		Canon M5	2360	n	3.2 / 1620	tilting	Y	1/4000s	9.0/s	Y	n
9.		Canon M6	optional	n	3.0 / 1040	tilting	Y	1/4000s	9.0/s	Y	n
10.		Canon R10	2360	n	3.0 / 1040	swivel	Y	1/8000s	15.0/s	Y	n
11.		Canon RP	2360	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	n	n
12.		Canon SL2	optical	n	3.0 / 1040	swivel	Y	1/4000s	5.0/s	Y	n
13.		Canon SX60	922	n	3.0 / 922	swivel	n	1/2000s	6.4/s	Y	Y
14.		Sony A7	2400	n	3.0 / 1230	tilting	n	1/8000s	5.0/s	n	n
15.		Sony NEX-7	2359	n	3.0 / 921	tilting	n	1/4000s	10.0/s	Y	n
16.		Sony RX1	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
17.		Sony RX1R	optional	n	3.0 / 1229	fixed	n	1/4000s	5.0/s	Y	n
Note: *) Information refers to the mechanical shutter, unless the camera only has an electronic one.

The reported shutter speed information refers to the use of the mechanical shutter. Yet, some cameras only have an electronic shutter, while others have an electronic shutter in addition to a mechanical one. In fact, the R8 is one of those camera that have an additional electronic shutter, which makes completely silent shooting possible. However, this mode is less suitable for photographing moving objects (risk of rolling shutter) or shooting under artificial light sources (risk of flickering).

The Canon R8 and the Canon XC10 both have an intervalometer built-in. This enables the photographer to capture time lapse sequences, such as flower blooming, a sunset or moon rise, without purchasing an external camera trigger and related software.

The R8 writes its imaging data to SDXC cards, while the XC10 uses CFast or SDXC cards. The XC10 features dual card slots, which can be very useful in case a memory card fails. In contrast, the R8 only has one slot. The R8 supports UHS-II cards (Ultra High Speed data transfer of up to 312 MB/s), while the XC10 can use UHS-I cards (up to 104 MB/s).

Connectivity comparison

For some imaging applications, the extent to which a camera can communicate with its environment can be an important aspect in the camera decision process. The table below provides an overview of the connectivity of the Canon EOS R8 and Canon XC10 and, in particular, the interfaces the cameras (and selected comparators) provide for accessory control and data transfer.

Input-Output Connections

		Camera Model	Hotshoe Port	Internal Mic / Speaker	Microphone Port	Headphone Port	HDMI Port	USB Port	WiFi Support	NFC Support	Bluetooth Support
1.		Canon R8	Y	stereo / mono	Y	Y	micro	3.2	Y	-	Y
2.		Canon XC10	Y	stereo / mono	Y	Y	mini	2.0	Y	Y	-
3.		Canon 77D	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
4.		Canon G1 X Mark II	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
5.		Canon G5 X	Y	stereo / mono	-	-	mini	2.0	Y	Y	-
6.		Canon G7 X	-	stereo / mono	-	-	micro	2.0	Y	Y	-
7.		Canon G7 X Mark II	-	stereo / mono	-	-	micro	2.0	Y	Y	-
8.		Canon M5	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
9.		Canon M6	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
10.		Canon R10	Y	stereo / mono	Y	-	micro	2.0	Y	-	Y
11.		Canon RP	Y	stereo / mono	Y	Y	micro	2.0	Y	-	Y
12.		Canon SL2	Y	stereo / mono	Y	-	mini	2.0	Y	Y	Y
13.		Canon SX60	Y	stereo / mono	Y	-	mini	2.0	Y	Y	-
14.		Sony A7	Y	stereo / mono	Y	Y	micro	2.0	Y	Y	-
15.		Sony NEX-7	Y	stereo / mono	Y	-	mini	2.0	-	-	-
16.		Sony RX1	Y	stereo / mono	Y	-	mini	2.0	-	-	-
17.		Sony RX1R	Y	stereo / mono	Y	-	mini	2.0	-	-	-

The R8 is a recent model that features in the current product line-up of Canon. In contrast, the XC10 has been discontinued (but can be found pre-owned on ebay). As a replacement in the same line of cameras, the XC10 was succeeded by the Canon XC15. Further information on the features and operation of the R8 and XC10 can be found, respectively, in the Canon R8 Manual (free pdf) or the online Canon XC10 Manual.

Review summary

So what conclusions can be drawn? Is there a clear favorite between the Canon R8 and the Canon XC10? Which camera is better? Below is a summary of the relative strengths of each of the two contestants.

Reasons to prefer the Canon EOS R8:

• More detail: Offers more megapixels (24 vs 12MP) with a 44% higher linear resolution.
• Better image quality: Features a larger and more technologically advanced imaging sensor.
• Richer colors: The sensor size advantage translates into images with better, more accurate colors.
• More dynamic range: Larger sensor captures a wider spectrum of light and dark details.
• Better low-light sensitivity: Larger sensor produces good images even in poorly lit environments.
• Better video: Provides higher movie framerates (4k/60p versus 4K/30p).
• Better live-view autofocus: Features on-sensor phase-detection for more confident autofocus.
• Easier framing: Has an electronic viewfinder for image composition and settings control.
• More detailed LCD: Has a higher resolution rear screen (1620k vs 1030k dots).
• More flexible LCD: Has a swivel screen for odd-angle shots in portrait or landscape orientation.
• More selfie-friendly: Has an articulated screen that can be turned to be front-facing.
• Faster shutter: Has higher mechanical shutter speed (1/4000s vs 1/2000s) to freeze action.
• Faster burst: Shoots at higher frequency (6 vs 3.8 flaps/sec) to capture the decisive moment.
• Less disturbing: Has an electronic shutter option for completely silent shooting.
• More flexible: Accepts interchangeable lenses, so that lens characteristics can be altered.
• Faster data transfer: Supports a more advanced USB protocol (3.2 vs 2.0).
• Easier wireless transfer: Supports Bluetooth for image sharing without cables.
• Faster buffer clearing: Supports a more advanced SD data transfer standard (UHS-II vs UHS-I).
• More modern: Reflects 7 years and 10 months of technical progress since the XC10 launch.

Arguments in favor of the Canon XC10:

• Ready to shoot: Has an integrated lens, whereas the R8 necessitates an extra lens.
• Longer lasting: Gets more shots (370 versus 220) out of a single battery charge.
• Sharper images: Has stabilization technology built-in to reduce the impact of hand-shake.
• Easier device pairing: Supports NFC for fast wireless image transfer over short distances.
• Greater peace of mind: Features a second card slot as a backup in case of memory card failure.
• More heavily discounted: Has been around for much longer (launched in April 2015).

If the count of relative strengths (bullet points above) is taken as a measure, the R8 is the clear winner of the match-up (19 : 6 points). However, the pertinence of the various camera strengths will differ across photographers, so that you might want to weigh individual camera traits according to their importance for your own imaging needs before making a camera decision. A professional wildlife photographer will view the differences between cameras in a way that diverges from the perspective of a family photog, and a person interested in architecture has distinct needs from a sports shooter. Hence, the decision which camera is best and worth buying is often a very personal one.

How about other alternatives? Do the specifications of the Canon R8 and the Canon XC10 place the cameras among the top in their class? Find out in the latest Best Mirrorless Interchangeable Lens Camera and Best Superzoom Camera listings whether the two cameras rank among the cream of the crop.

In any case, while the comparison of technical specifications can provide a useful overview of the capabilities of different cameras, it remains incomplete and does no justice, for example, to the way the R8 or the XC10 perform in practice. User reviews, such as those found at amazon, can sometimes inform about these issues, but such feedback is often incomplete, inconsistent, and biased.

Expert reviews

This is why hands-on reviews by experts are important. The following table reports the overall ratings of the cameras as published by some of the major camera review sites (amateurphotographer [AP], cameralabs [CL], digitalcameraworld [DCW], dpreview [DPR], ephotozine [EPZ], photographyblog [PB]). As can be seen, the professional reviewers agree in many cases on the quality of different cameras, but sometimes their assessments diverge, reinforcing the earlier point that a camera decision is often a very personal choice.

Expert Camera Reviews

		Camera   Model	AP   score	CL   score	DCW   score	DPR   score	EPZ   score	PB   score	Camera Launch	Launch Price	Street Price
1.		Canon R8	4.5/5	+ +	4.5/5	87/100	4/5	4.5/5	Feb 2023	US$ 1 499	amazon.com
2.		Canon XC10	..	..	..	80/100	..	..	Apr 2015	US$ 2 499	ebay.com
3.		Canon 77D	4.5/5	..	4/5	82/100	4.5/5	4/5	Feb 2017	US$ 899	ebay.com
4.		Canon G1 X Mark II	3/5	+	..	77/100	4/5	4.5/5	Feb 2014	US$ 799	ebay.com
5.		Canon G5 X	5/5	+ +	..	78/100	4.5/5	4.5/5	Oct 2015	US$ 799	ebay.com
6.		Canon G7 X	4/5	+ +	..	77/100	4.5/5	4.5/5	Sep 2014	US$ 699	ebay.com
7.		Canon G7 X Mark II	4.5/5	+ +	..	81/100	4.5/5	4.5/5	Feb 2016	US$ 699	ebay.com
8.		Canon M5	4/5	+	4/5	82/100	4/5	4/5	Sep 2016	US$ 979	ebay.com
9.		Canon M6	..	..	..	80/100	4/5	4/5	Feb 2017	US$ 779	ebay.com
10.		Canon R10	4/5	..	4.5/5	87/100	4/5	4.5/5	May 2022	US$ 979	amazon.com
11.		Canon RP	4/5	+	4/5	..	4.5/5	4/5	Feb 2019	US$ 1 299	amazon.com
12.		Canon SL2	4/5	+ +	4/5	78/100	4.5/5	4.5/5	Jun 2017	US$ 549	ebay.com
13.		Canon SX60	3/5	+ +	..	75/100	4/5	4.5/5	Sep 2014	US$ 549	ebay.com
14.		Sony A7	5/5	+ +	..	80/100	5/5	5/5	Oct 2013	US$ 1 699	ebay.com
15.		Sony NEX-7	5/5	+ +	..	81/100	4.5/5	5/5	Aug 2011	US$ 1 349	ebay.com
16.		Sony RX1	5/5	..	..	79/100	4/5	4.5/5	Sep 2012	US$ 2 799	ebay.com
17.		Sony RX1R	5/5	..	..	..	4/5	4.5/5	Jun 2013	US$ 2 799	ebay.com
Note: (+ +) highly recommended; (+) recommended; (o) reviewed; (..) not available.

The review scores listed above should be treated with care, though. The assessments were made in relation to similar cameras of the same technological generation. Hence, a score should always be seen in the context of the camera's market launch date and its price, and comparisons of ratings among very different cameras or across long time periods have little meaning. It should also be noted that some of the review sites have over time altered the way they render their verdicts.
